HP 1410 Switch Series
Fixed configuration fanless, unmanaged Gigabit and Fast Ethernet switches
HP SMB Unmanaged Switches
HP 1410 Switch
1410-24-R Switch
#JD986B
List Price:$122.00
Our Price: $75.00
List Price:
Our Price: $75.00
More pricing below, click here!
Overview:
HP 1410 series switches are unmanaged Gigabit Ethernet and Fast Ethernet switches designed for small businesses looking for entry-level, low-cost networking solutions with a lifetime warranty. The HP 1410 switch series consists of seven models with flexible mounting options that allow customers to choose the best switch to meet their network switching needs. All models have QoS support and IEEE 802.3x flow control features to provide outstanding data efficiency. Simplified plug-and-play operation is enabled by features like Auto-MDIX and auto-speed negotiation. HP has innovated and combined the latest advances in silicon technology to provide some of the most power-efficient switches: 16- and 24-port Fast Ethernet models are the industry's first IEEE 802.3az compliant unmanaged Fast Ethernet switches. The available green features, along with the lifetime warranty, make the HP 1410 switch series ideal for customers seeking low-cost and reliable networking solutions.
- Unmanaged Gigabit and Fast Ethernet switches
- Green features for low power consumption
- Fanless for silent operation
- Quality-of-Service (QoS) support
- Lifetime warranty
Images:
Features & Benefits:
Quality of Service (QoS)
- IEEE 802.1p prioritization — delivers data to devices based on the priority and type of traffic
- DiffServ Code Point (DSCP) support — allows real-time traffic prioritization based on Layer 3 TOS/DSCP parameters
Connectivity
- Auto-MDIX — automatically adjusts for straight-through or crossover cables on all 10/100 and 10/100/1000 ports
Performance
- NEW Energy-efficient Ethernet support (J9662A and J9663A only) — supports new IEEE 802.3az standard; allows lower power consumption when operated with IEEE-compliant client devices in 100 Mb/s mode only
- Half-/Full-duplex auto-negotiating capability on every port — doubles the throughput of every port
- Jumbo frame support (Gigabit Ethernet models only) — allows frames up to 9216 bytes to be switched through the network
- Mini jumbo frame support (J9662A and J9663A only) — allows frames up to 2048 bytes to be switched through the network, which supports large data transfers
Ease of use
- Unmanaged — provides plug-and-play simplicity
- Comprehensive LED display with per-port indicators — provides an at-a-glance view of status, activity, speed, and full-duplex operation
- Flow control — helps ensure reliable communications during full-duplex operation
- Auto-speed negotiation — automatically selects individual port speed depending on client capabilities without the need for manual intervention, allowing for simple plug-and-play operation
Flexibility
- Fanless design — enables quiet operation for deployment in open spaces (selected models)
Warranty and support
- Lifetime warranty — for as long as you own the product with advance replacement and next-business-day delivery (available in most countries)†
- Electronic and telephone support — limited electronic and telephone support is available from HP; to reach our support centers, refer to www.hp.com/networking/contact-support; for details on the duration of support provided with your product purchase, refer to www.hp.com/networking/warrantysummary
Specifications:
| 1410-8G | 1410-24G | |
|---|---|---|

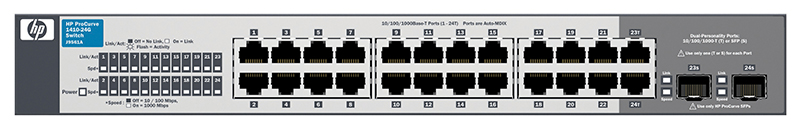

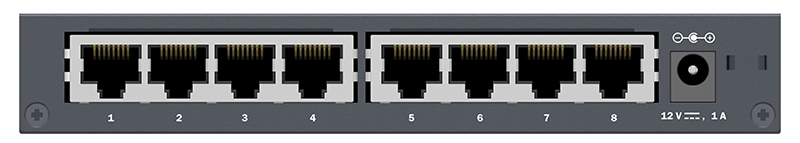

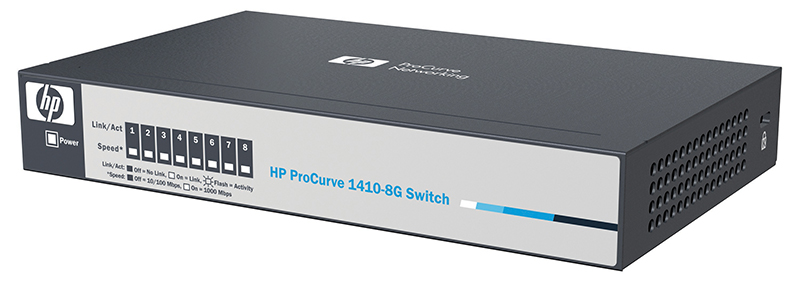

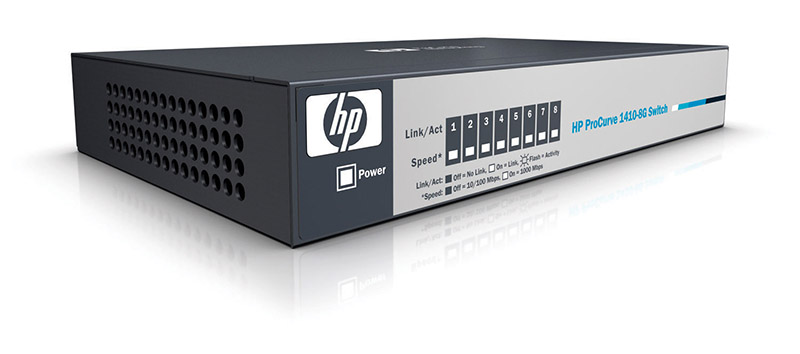

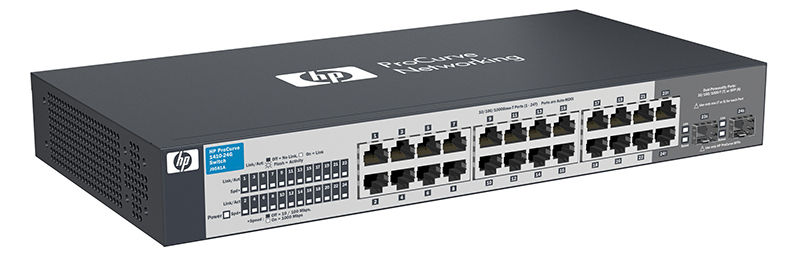

| Part Number | HP 1410-8G Switch (J9559A) | HP 1410-24G Switch (J9561A) |
| Ports | ||
| 8 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)
Media Type: Auto-MDIX Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
22 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)
Media Type: Auto-MDIX Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 dual-personality ports each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-TX; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or an open mini-GBIC slot (for use with mini-GBIC transceivers) |
|
| Physical characteristics | ||
| 6.14(w) x 3.8(d) x 0.96(h) in (15.6 x 9.65 x 2.45 cm) (.5U height) | 13.23(w) x 6.65(d) x 1.73(h) in (33.6 x 16.9 x 4.4 cm) (1U height) | |
| Weight | .74 lb (0.34 kg) | 2.98 lb (1.35 kg) |
| Memory and processor | ||
| 4 Kb EEPROM capacity; packet buffer size: 192 KB | 512 KB flash; packet buffer size: 512 KB | |
| Mounting | ||
| Wall, desktop, and under-table mounting | Mounts in an EIA-standard 19 in. telco rack (hardware included); wall, desktop, and under-table mounting | |
| Performance | ||
| 100 Mb Latency | < 3.6 µs (LIFO 64-byte packets) | < 8.0 µs (LIFO 64-byte packets) |
| 1000 Mb Latency | < 1.2 µs (LIFO 64-byte packets) | < 3.6 µs (LIFO 64-byte packets) |
| Throughput | up to 11.9 million pps (64-byte packets) | up to 35.7 million pps (64-byte packets) |
| Switching capacity | 16 Gbps | 48 Gbps |
| MAC address table size | 4096 entries | 8000 entries |
| Environment | ||
| Operating temperature | 32°F to 104°F (0°C to 40°C) | 32°F to 104°F (0°C to 40°C) |
| Operating relative humidity | 15% to 95% @ 104°F (40°C), noncondensing | 15% to 95% @ 104°F (40°C), noncondensing |
| Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) | -40°F to 158°F (-40°C to 70°C) |
| Nonoperating/Storage relative humidity | 15% to 90% @ 149°F (65°C), noncondensing | 15% to 90% @ 149°F (65°C), noncondensing |
| Altitude | up to 10,000 ft (3 km) | up to 10,000 ft (3 km) |
| Acoustic | Power: 0 dB No fan | Power: 0 dB No fan |
| Electrical characteristics | ||
| Maximum heat dissipation | 41 BTU/hr (43.26 kJ/hr) | 75 BTU/hr (79.13 kJ/hr) |
| Voltage | 100-240 VAC | 100-127/200-240 VAC |
| Current | 1.0 A | 0.3/0.2 A |
| Maximum power rating | 12 W | 22 W |
| Frequency | 50/60 Hz | 50/60 Hz |
| Notes | Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. The exact input voltage and frequency rating are determined by the specific power adapter part number ordered. Please select the correct power adapter country option. |
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. |
| Safety | ||
| CSA 22.2 No. 60950EN 60950/IEC 60950UL 60950-1 | CSA 22.2 No. 60950UL 60950-1IEC 60950-1EN 60950-1 | |
| Notes | ||
| Use only supported genuine HP mini-GBICs with your switch. | ||
| 1410-8 | 1410-16 | 1410-24 | |
|---|---|---|---|

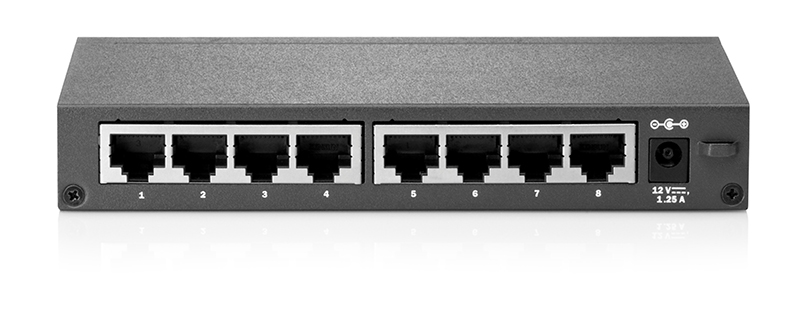

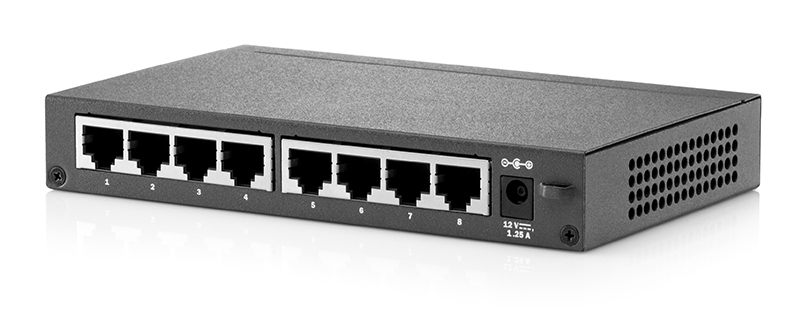

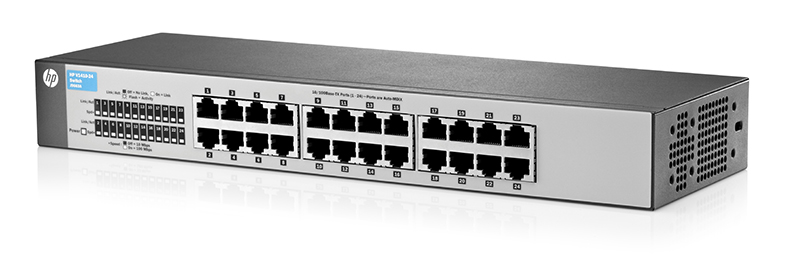

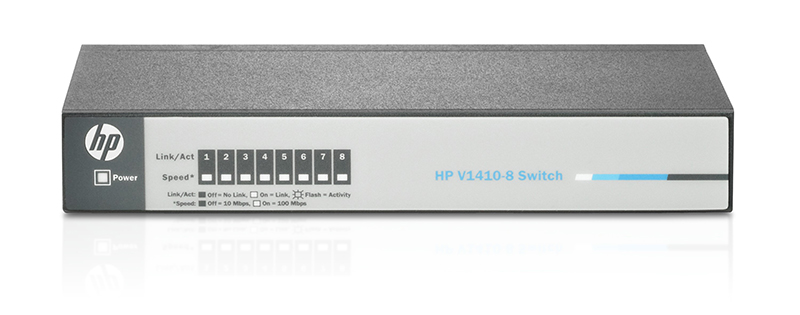

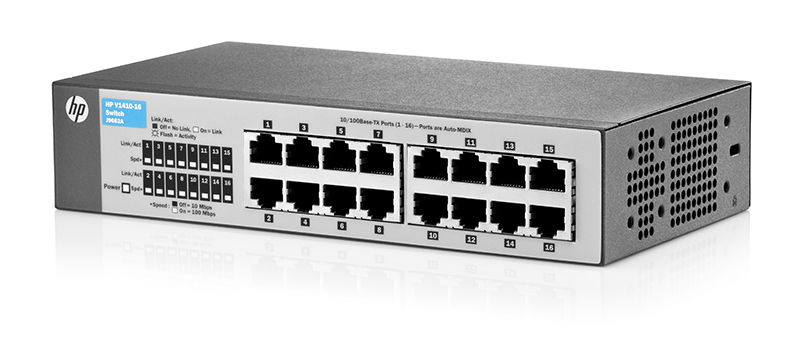

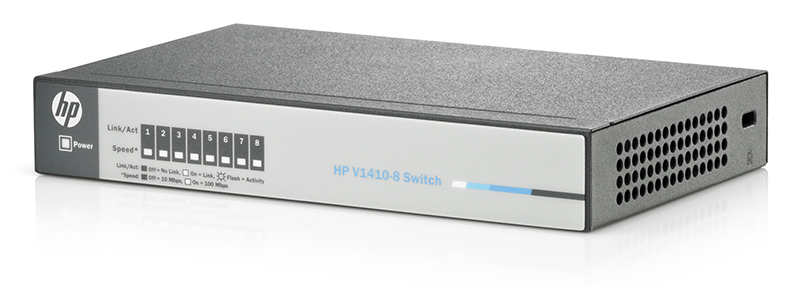

| Part Number | HP 1410-8 Switch (J9661A) | HP 1410-16 Switch (J9662A) | HP 1410-24 Switch (J9663A) |
| Ports | |||
| Supports a maximum of 8 autosensing 10/100 ports | Supports a maximum of 16 autosensing 10/100 ports | Supports a maximum of 24 autosensing 10/100 ports | |
| Physical characteristics | |||
| 6.14(w) x 3.74(d) x 0.97(h) in (15.6 x 9.5 x 2.46 cm) | 8.21(w) x 4.21(d) x 1.73(h) in (20.85 x 10.69 x 4.39 cm) | 13.23(w) x 6.65(d) x 1.73(h) in (33.6 x 16.89 x 4.39 cm) | |
| Weight | 0.74 lb (0.34 kg) | 1.43 lb (0.65 kg) | 2.98 lb (1.35 kg) |
| Memory and processor | |||
| 96 KB | 16 Kb EEPROM; packet buffer size: 2 Mb | 16 Kb EEPROM; packet buffer size: 2 Mb | |
| Mounting | |||
| Wall, desktop, and under-table mounting | Mounts in an EIA-standard 19 in. telco rack (hardware included); wall, desktop, and under-table mounting | Mounts in an EIA-standard 19 in. telco rack (hardware included); wall, desktop, and under-table mounting | |
| Performance | |||
| 100 Mb Latency | < 3.7 µs (LIFO 64-byte packets) | < 10.6 µs (LIFO 64-byte packets) | < 11 µs (LIFO 64-byte packets) |
| Throughput | up to 1.1 million pps (64-byte packets) | up to 2.3 million pps (64-byte packets) | up to 3.5 million pps (64-byte packets) |
| Switching capacity | 1.6 Gbps | 3.2 Gbps | 4.8 Gbps |
| MAC address table size | 1040 entries | 8192 entries | 8192 entries |
| Environment | |||
| Operating temperature | 32°F to 104°F (0°C to 40°C) | 32°F to 104°F (0°C to 40°C) | 32°F to 104°F (0°C to 40°C) |
| Operating relative humidity | 15% to 95% @ 104°F (40°C), noncondensing | 15% to 95% @ 104°F (40°C), noncondensing | 15% to 95% @ 104°F (40°C), noncondensing |
| Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) | -40°F to 158°F (-40°C to 70°C) | -40°F to 158°F (-40°C to 70°C) |
| Nonoperating/Storage relative humidity | 15% to 90% @ 149°F (65°C), noncondensing | 15% to 90% @ 149°F (65°C), noncondensing | 15% to 90% @ 149°F (65°C), noncondensing |
| Altitude | up to 10,000 ft (3 km) | up to 10,000 ft (3 km) | up to 10,000 ft (3 km) |
| Acoustic | Power: 0 dB | Power: 0 dB | Power: 0 dB |
| Electrical characteristics | |||
| Maximum heat dissipation | 13 BTU/hr (13.72 kJ/hr) | 13 BTU/hr (13.72 kJ/hr) | 17 BTU/hr (17.93 kJ/hr) |
| Voltage | 100-240 VAC | 100-240 VAC | 100-240 VAC |
| DC voltage | 12 V | 12 V | 12 V |
| Current | 0.3 A | 0.3 A | 0.4 A |
| Maximum power rating | 3.6 W | 3.6 W | 4.8 W |
| Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Notes | Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. The exact input voltage and frequency rating are determined by the specific power adapter part number ordered. Please select the correct power adapter country option. |
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. The exact input voltage and frequency rating are determined by the specific power adapter part number ordered. Please select the correct power adapter country option. |
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. The exact input voltage and frequency rating are determined by the specific power adapter part number ordered. Please select the correct power adapter country option. |
| Safety | |||
| UL 60950-1CSA 22.2 60950-1IEC 60950-1:2005EN 60950-1:2006 + A11:2009 | UL 60950-1CSA C22.2 60950-1IEC 60950-1:2005EN 60950-1:2006 + A11:2009 | UL 60950-1CSA 22.2 60950-1IEC 60950-1:2005EN 60950-1:2006 + A11:2009 | |
| Notes | |||
| IEEE 802.3az Energy Efficient Ethernet protocol is supported by the HP 1410-16 (J9662A) and HP 1410-24 (J9663A) Switches only | IEEE 802.3az Energy Efficient Ethernet protocol is supported by the HP 1410-16 (J9662A) and HP 1410-24 (J9663A) Switches only | ||

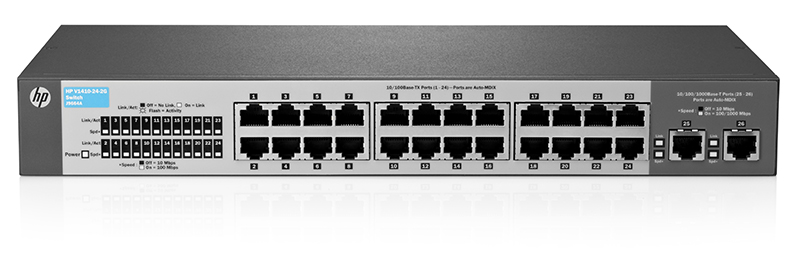

| HP 1410-24-2G Switch (J9664A) | |
|---|---|
| Ports | |
| Supports a maximum of 24 autosensing 10/100 ports plus 2 autosensing 10/100/1000 ports, or a combination | |
| Physical characteristics | |
| 13.23(w) x 6.65(d) x 1.73(h) in (33.6 x 16.89 x 4.39 cm) | |
| Weight | 2.98 lb (1.35 kg) |
| Memory and processor | |
| 2 KB EEPROM; packet buffer size: 2.5 Mb | |
| Mounting | |
| Mounts in an EIA-standard 19 in. telco rack (hardware included); wall, desktop, and under-table mounting | |
| Performance | |
| 100 Mb Latency | < 5.6 µs (LIFO 64-byte packets) |
| 1000 Mb Latency | < 2.2 µs (LIFO 64-byte packets) |
| Throughput | up to 6.5 million pps (64-byte packets) |
| Switching capacity | 8.8 Gbps |
| MAC address table size | 8192 entries |
| Environment | |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Operating relative humidity | 15% to 95% @ 104°F (40°C), noncondensing |
| Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) |
| Nonoperating/Storage relative humidity | 15% to 90% @ 149°F (65°C), noncondensing |
| Altitude | up to 10,000 ft (3 km) |
| Acoustic | Power: 0 dB |
| Electrical characteristics | |
| Maximum heat dissipation | 37 BTU/hr (39.03 kJ/hr) |
| Voltage | 100-240 VAC |
| DC voltage | 12 V |
| Current | 0.9 A |
| Maximum power rating | 10.8 W |
| Frequency | 50/60 Hz |
| Notes | Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. The exact input voltage and frequency rating are determined by the specific power adapter part number ordered. Please select the correct power adapter country option |
| Safety | |
| UL 60950-1CSA 22.2 60950-1IEC 60950-1:2005EN 60950-1:2006 + A11:2009 | |
Documentation:
Download the HP 1410 Switch Series Datasheet (PDF).
