HP 10500 Switch Series
Modular Ethernet Switches

Images:

Features & Benefits:

Performance, Reliability and Future-proof Scalability for The Campus

The HP 10500 Switch Series provides a high speed fully distributed next generation Clos architecture with up to 11.52 Tbps switching capacity and up to 13.72 Tbps switching fabric capacity to meet the demands of bandwidth-intensive applications today and in the future.

With ultra-high 1/10/40/100GbE port density and 3-microsecond latency. With up to 12 interface module slots, the 10500 Switch Series provides up to 24 ports 100GbE, 96 ports 40GbE, 576 10GbE ports and 576 1GbE ports and allows you to optimize deployment with a choice of 4-, 8-, and 12-slot chassis.

HP Intelligent Resilient Fabric (IRF) allows up to four 10500 Switch Series chassis to be virtualized into a single switching/routing fabric that can support more than 2,300 line-rate 10 Gigabit Ethernet ports, 192 line-rate 40 Gigabit ports, or 96 line-rate 100GbE ports.

The 7500/10500 Unified Wired WLAN Module integrates with the 10500 switching fabric to deliver a single unified network for wired and wireless connectivity. The 20Gbps VPN firewall module provides advanced firewall features.

No hidden costs with license-free software with advanced Layer 2 and 3 feature set including IPv6, MPLS functionality, and robust QoS.

Optimized Architecture For a Cloud-Connected and Media-Rich Network

The HP 10500 Switch Series includes a high-speed fully distributed next-generation Clos architecture that simplifies large-scale switching architecture, reduces possible fault points, and provides greater defense capabilities.

HP Comware 7, an advanced modular operating system, brings native high stability, independent process monitoring, and modular design to easily restart processes for seamless upgrades to individual software modules, enhancing serviceability and greater high-availability.

Fast software upgrades without service interruptions for higher availability and zero packet loss with In-Service Software Upgrade (ISSU).

Open application architecture enables fully-integrated high-performance application-specific modules.

Robust Security and QoS Controls

The HP 10500 Switch Series includes a robust set of security and quality of services features to build a trusted network that meets your ever-changing corporate policies and compliances.

Flexible authentication options include 802.1X, MAC and Web Authentication, and Endpoint Admission Defense, providing you with greater security and policy-driven application authentication.

Advanced distributed denial of service (DDOS) protection, such as DHCP Snooping, IP Source Guard, and ARP Protection, and flexible traffic controls, such as policy-based routing, QoS, and ACLs, manage end-to-end application priorities.

Included with 10500 Series Switches are a powerful set of multilevel-access security controls, such as varying security management login, RADIUS, SSH, TACACS/TACACS+, to protect and control change management access.

Single Management View of the Network

The HP 10500 Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management. Integrated security and unified wired and wireless networks.

Specifications:

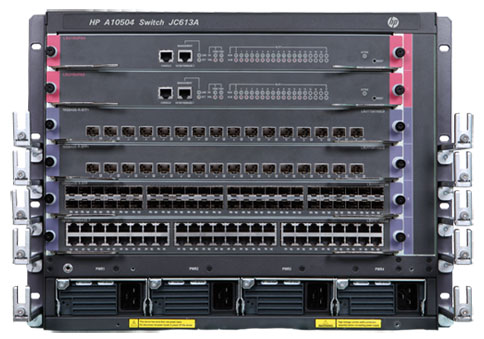

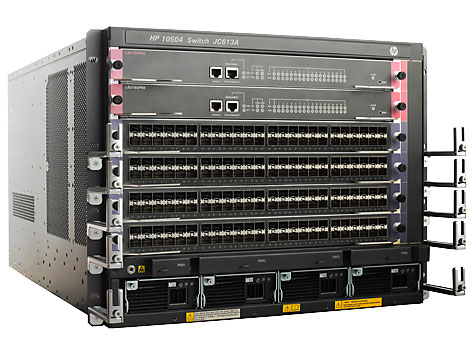

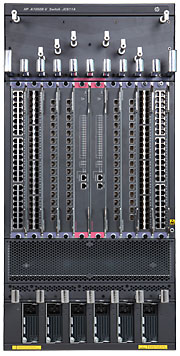

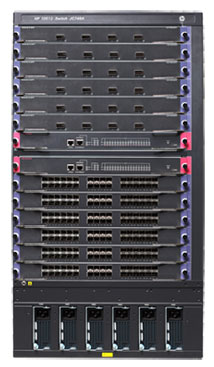

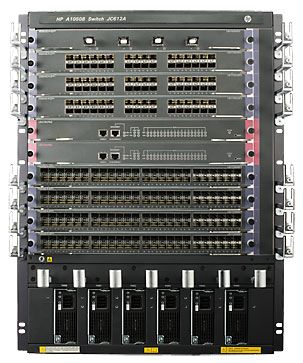

	10504 Switch Chassis (JC613A)	10508 Switch Chassis (JC612A)	10508-V Switch Chassis (JC611A)	10512 Switch Chassis (JC748A)
I/O ports and slots
	4 I/O module slots Supports a maximum of 192 10GbE ports or 96 1/10GBASE-T ports or 192 Gigabit Ethernet ports or 32 40GbE ports, or a combination	8 I/O module slots Supports a maximum of 384 10GbE ports or 192 1/10GBASE-T ports or 384 Gigabit Ethernet ports or 64 40GbE ports, or a combination	8 I/O module slots Supports a maximum of 384 10GbE ports or 192 1/10GBASE-T ports or 384 Gigabit Ethernet ports or 64 40GbE ports, or a combination	12 I/O module slots Supports a maximum of 576 10GbE ports or 288 1/10GBASE-T ports or 576 Gigabit Ethernet ports or 96 40GbE ports, or a combination
Additional ports and slots
	2 MPU (for management modules) slots 4 switch fabric slots	2 MPU (for management modules) slots 4 switch fabric slots	2 MPU (for management modules) slots 4 switch fabric slots	2 MPU (for management modules) slots 4 switch fabric slots
Power supplies
	4 power supply slots 1 minimum power supply required (ordered separately)	6 power supply slots 1 minimum power supply required (ordered separately)	6 power supply slots 1 minimum power supply required (ordered separately	6 power supply slots 1 minimum power supply required (ordered separately
Fan tray
	Includes: 1 x JC632A 1 fan tray slot	Includes: 1 x JC633A 1 fan tray slot	Includes: 1 x JC634A 1 fan tray slot	Includes: 1 x JC758A, JC773A 2 fan tray slots
Physical characteristics
Dimensions	17.32(w) x 25.98(d) x 13.9(h) in. (43.99 x 65.99 x 35.31 cm) (8U height)	17.32(w) x 25.98(d) x 24.41(h) in. (43.99 x 65.99 x 62 cm) (14U height)	17.32(w) x 25.98(d) x 34.88(h) in. (43.99 x 65.99 x 88.6 cm) (20U height)	17.32(w) x 25.98(d) x 31.38(h) in. (44.0 x 66.0 x 79.7 cm) (18U height)
Weight	85.32 lb (38.7 kg) chassis	125 lb (56.7 kg) chassis	169.53 lb (76.9 kg) chassis	166.23 lb (75.4 kg) chassis
Full configuration weight	183.14 lb (83.07 kg)	285.34 lb (129.43 kg)	331.31 lb (150.28 kg)	380.95 lb (172.8 kg)
Memory and processor
Management module	Dual Core MIPS @ 1.2 GHz, 512 MB flash, 8 GB DDR2 SDRAMDual Core MIPS @ 1.2 GHz, 512 MB flash, 8 GB DDR2 SDRAM
Mounting and enclosure
	Mounts in an EIA standard 19-inch rack or other equipment cabinet (hardware included); horizontal surface mounting only
Performance
Throughput	Up to 2.9 Bpps Type D Fabric / 1.9 Bpps Type B Fabric	Up to 5.7 Bpps Type D Fabric / 1.9 Bpps Type B Fabric	Up to 5.7 Bpps Type D Fabric / 1.9 Bpps Type B Fabric	Up to 8.6 Bpps Type D Fabric / 2.9 Bpps Type B Fabric
Switching capacity	Up to 4.8 Tbps Type D Fabric / 3.5 Tbps Type B Fabric	Up to 9.3 Tbps Type D Fabric / 4.2 Tbps Type B Fabric	Up to 9.3 Tbps Type D Fabric / 4.2 Tbps Type B Fabric	Up to 13.8 Tbps Type D Fabric / 6.0 Tbps Type B Fabric
Routing table size	Up to 256K IPv4 / 8K IPv6 with the EB LPU	Up to 256K IPv4 / 8K IPv6 with the EB LPU	Up to 256K IPv4 / 8K IPv6 with the EB LPU	Up to 256K IPv4 / 8K IPv6 with the EB LPU
MAC address table size	Up to 512K with the EB LPU	Up to 512K with the EB LPU	Up to 512K with the EB LPU	Up to 512K with the EB LPU
Reliability
Availability	99.999%	99.999%	99.999%	99.999%
Environment
Operating temperature	32°F to 113°F (0°C to 45°C)	32°F to 113°F (0°C to 45°C)	32°F to 113°F (0°C to 45°C)	32°F to 113°F (0°C to 45°C)
Operating relative humidity	10% to 95%, noncondensing	10% to 95%, noncondensing	10% to 95%, noncondensing	10% to 95%, noncondensing
Non-operating/Storage temperature	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)
Non-operating/Storage relative humidity	5% to 95%, noncondensing	5% to 95%, noncondensing	5% to 95%, noncondensing	5% to 95%, noncondensing
Altitude	Up to 13,123 ft (4 km)	Up to 13,123 ft (4 km)	Up to 13,123 ft (4 km)	Up to 13,123 ft (4 km)
Acoustic	Low-speed fan: 62.3 dB, High-speed fan: 75.5 dB	Low-speed fan: 63 dB, High-speed fan: 75.8 dB	Low-speed fan: 61.6 dB, High-speed fan: 72.6 dB	Low-speed fan: 66 dB, High-speed fan: 79 dB
Electrical characteristics
Frequency	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz
AC Voltage	100-120/200-240 VAC	100-120/200-240 VAC	100-120/200-240 VAC	100-120/200-240 VAC
DC voltage	-48 to -60 VDC	-48 to -60 VDC	-48 to -60 VDC	-48 to -60 VDC
Current	16/60 A	16/60 A	16/50 A	16/50 A
Power output	2500 W	2500 W	2500 W	2500 W
Notes	Based on common power supply 2,500 W (AC)
Safety
	CAN/CSA 22.2 No. 60950-1; FCC Part 15, Subpart B; FDA 21 CFR Subchapter J; RoHS Compliance; IEC 60950-1, Second Edition; EN 60950-1:2006 + A11:2009; AS/NZS 60950-1; IEC 60825-1; UL 60950-1, 2nd Edition; EN60825-2:2004+A1:2007
Emissions
	VCCI Class A; EN 55022 Class A; CISPR 22 Class A; IEC/EN 61000- 3-2; IEC/EN 61000-3-3; ICES-003 Class A; AS/NZS CISPR 22 Class A; FCC (CFR 47, Part 15) Class A; GB9254
Immunity
Generic	Directive 2004/108/EC
EN	EN 55024:1998+ A1:2001 + A2:2003; ETSI EN 300 386 V1.3.3
ESD	EN 61000-4-2
Radiated	EN 61000-4-3
EFT/Burst	EN 61000-4-4
Surge	EN 61000-4-5
Conducted	EN 61000-4-6
Power frequency magnetic field	EN 61000-4-8
Voltage dips and interruptions	EN 61000-4-11
Harmonics	EN 61000-3-2, IEC 61000-3-2
Flicker	EN 61000-3-3, IEC 61000-3-3
Management
	IMC—Intelligent Management Center; command-line interface; out-of-band management (serial RS-232C); SNMP Manager; Telnet; terminal interface (serial RS-232C); modem interface; IEEE 802.3 Ethernet MIB; Ethernet Interface MIB
Notes
	These modules—JC614A, JD252A, and JD254A—are only available using Comware v5 for the 10500. Please see an HP representative or technical notes for details.

Documentation:

Download the HP10500 Switch Series Datasheet (PDF).
