HP 2915 Switch Series
Fixed Port L3 Managed Ethernet Switches
HP Switches for Campus/Branch LAN Access

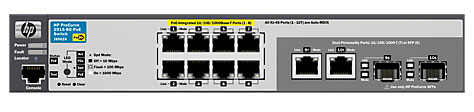

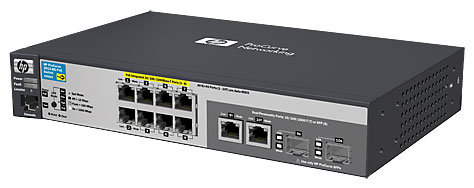

HP 2915 Switch
HP 2915-8G-PoE Switch#J9562A
List Price:$1,199.00
Our Price: $841.00
List Price:
Our Price: $841.00
More pricing below, click here!
Overview:
The HP 2915 Switch Series provides simple, cost-effective and reliable access layer connectivity for enterprises, branch offices and SMBs. This compact and quiet 8-port, fully managed, Basic Layer 3, Gigabit Ethernet switch with PoE is ideal for deployment in open areas, offices and environments.
A robust Basic Layer 3 feature set supports static and RIP routing, sFlow, ACLs, rate limiting, IPv6 and PoE. It is easy to use and deploy, supporting PoE devices and can be managed with the optional HP Intelligent Management Center (IMC) Software for a single view of your entire network.
A summary of the highlights of the 2915 Switch Series:
- Scalable 10/100/1000 connectivity
- L2 and L3 switching capabilities
- sFlow, ACLs, and rate limiting
- Energy-efficient design and quiet operation
- Rack-mountable, compact form factor
Features & Benefits:
Compact and Reliable Gigabit Access Layer Switch with PoE
- The HP 2915 Switch provides simple, cost-effective and reliable access layer connectivity for enterprises, branch offices and SMBs.
- This compact and quiet, 8-port fully managed Basic Layer 3 Gigabit Ethernet switch with PoE is ideal for deployment in open areas, offices and environments with limited space or are acoustically sensitive.
- Robust Basic Layer 3 feature set includes support for static and RIP routing, sFlow, ACLs, rate limiting, IPv6, and PoE.
- Eight Gigabit Ethernet PoE ports with two, additional, dual-personality Gigabit Ethernet ports provide copper or SFP connectivity for a total of ten ports.
- Single view of the entire network with the optional HP Intelligent Management Center (IMC) Software.
Security and Quality of Service (QoS)
- The HP 2915 Switch supports flexible authentication methods including Local MAC, 802.1X, MAC, and Web for greater, policy-driven application security.
- The HP 2915 Switch supports advanced denial of service (DOS) protection, such as DHCP, Dynamic ARP, and Dynamic IP lockdown, and flexible traffic controls including ACLs and QoS.
- Traffic prioritization with IEEE 802.1p allows real-time traffic classification with support for eight priority levels mapped to two or four queues.
- Rate limiting and flow control help ensure reliable communications.
- Defend your IPv6 network with DHCPv6 Protection.
Simple Deployment and Management
- The HP 2915 Switch supports a choice of management interfaces with Web GUI, command-line interface (CLI) and SNMP.
- The HP 2915 Switch Series can be seamlessly managed with the optional HP Intelligent Management Center (IMC) Software to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
- The HP 2915 Switch Series is compact and fanless for quiet and unobtrusive operation in open spaces, conference rooms and offices. Flexible deployment with wall, table, and rack mounting options.
- Convenient LEDs provide quick status of fault and power and per port status of activity, speed, and full-duplex operation.
Specifications:
| HP 2915-8G-PoE Switch (J9562A) | ||
|---|---|---|
| Included accessories | ||
| 1 HP X520 1U Power Adapter Shelf (J9701A) | ||
| Ports | ||
| 8 RJ-45 autosensing 10/100/1000 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3af PoE); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only | ||
| 2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10BASE-T; an IEEE 802.3u Type 100BASE-TX; an IEEE 802.3ab 1000BASE-T Gigabit Ethernet); or an SFP slot (for use with SFP transceivers) | ||
| 1 RJ-45 serial console port | ||
| Physical characteristics | ||
| Dimensions | 6.28(d) x 10(w) x 1.75(h) in. (15.95 x 25.4 x 4.45 cm) (1U height) | |
| Weight | 3.66 lb. (1.66 kg) including power adapter and power cord | |
| Memory and processor | ||
| Processor | Freescale PowerPC 8313 @ 333 MHz, 32 MB flash, 128 MB DDR2 SDRAM; packet buffer size: 512 KB dynamically allocated | |
| Mounting | ||
| Mounts in an EIA-standard 19 in. telco rack or equipment cabinet; horizontal surface mounting, wall mounting | ||
| Performance | ||
| 100 Mb Latency | < 5.3 µs (LIFO 64-byte packets) | |
| 1000 Mb Latency | < 2.7 µs (LIFO 64-byte packets) | |
| Throughput | 14.8 million pps | |
| Switching capacity | 20 Gbps | |
| MAC address table size | 8000 entries | |
| Environment | ||
| Operating temperature | 32°F to 113°F (0°C to 45°C) | |
| Operating relative humidity | 15% to 95% @ 104°F (40°C), noncondensing | |
| Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) | |
| Nonoperating/Storage relative humidity | 15% to 95% @ 149°F (65°C), noncondensing | |
| Altitude | up to 10,000 ft. (3 km) | |
| Acoustic | Power: 0 dB, Pressure: 0 dB | |
| Electrical characteristics | ||
| Description | Use only the external power adapter module (5070-6082, PA1 AC adapter) supplied with this product. | |
| Maximum heat dissipation | 89 BTU/hr (93.9 kJ/hr) | |
| Voltage | 100-240 VAC | |
| Current | 1.5 A | |
| Idle power | 11 W | |
| Maximum power rating | 86 W | |
| PoE power | 67 W | |
| Frequency | 50/60 Hz | |
| Notes | Idle power is the actual power consumption of the device with no ports connected.; Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.; PoE power is the total power budget available to all PoE ports. | |
| Safety | ||
| cUL (CSA 22.2 No. 60950); CE Labeled; UL 60950-1; UL Listed; CAN/CSA 22.2 No. 60950; EN 60825; AS/NZS 60950; IEC 60950-1; EN 60950-1 | ||
| Emissions | ||
| FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 (Canada); AS/NZS CISPR 22; IEC/EN 61000-3-2; IEC/EN 61000-3-3; IEC 61000:4-2, 4-3, 4-4, 4-5, 4-6, 4-8, 4-11 | ||
| Immunity | ||
| Generic | EN 55024, CISPR 24 | |
| EN | EN 55024, CISPR 24 | |
| ESD | IEC 61000-4-2 | |
| Radiated | IEC 61000-4-3 | |
| EFT/Burst | IEC 61000-4-4 | |
| Surge | IEC 61000-4-5 | |
| Conducted | IEC 61000-4-6 | |
| Power frequency magnetic field | IEC 61000-4-8 | |
| Voltage dips and interruptions | IEC 61000-4-11 | |
| Harmonics | EN 61000-3-2, IEC 61000-3-2 | |
| Flicker | EN 61000-3-3, IEC 61000-3-3 | |
| Management | ||
| HP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB | ||
| Standards and protocols | ||
Denial of service protection Automatic Filtering of well known Denial of Service Packets Device management RFC 1591 DNS (client)Multiple Configuration Files Multiple Software Images SSHv1/SSHv2 Secure Shell TACACS/TACACS+ Web UI General protocols IEEE 802.1D MAC BridgesIEEE 802.1p Priority IEEE 802.1Q VLANs IEEE 802.1s Multiple Spanning Trees IEEE 802.1w Rapid Reconfiguration of Spanning Tree IEEE 802.3 Type 10BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.3af Power over Ethernet IEEE 802.3u 100BASE-X IEEE 802.3x Flow Control RFC 768 UDP RFC 783 TFTP Protocol (revision 2) RFC 792 ICMP RFC 793 TCP RFC 826 ARP RFC 854 TELNET RFC 868 Time Protocol RFC 951 BOOTP RFC 1058 RIPv1 RFC 1350 TFTP Protocol (revision 2) RFC 1723 RIP v2 RFC 1812 IPv4 Routing RFC 2030 Simple Network Time Protocol (SNTP) v4 RFC 2131 DHCP RFC 2453 RIPv2 UDLD (Uni-directional Link Detection) IP multicast RFC 3376 IGMPv3 (host joins only) IPv6 RFC 1981 IPv6 Path MTU DiscoveryRFC 2460 IPv6 Specification RFC 2925 Remote Operations MIB (Ping only) RFC 3315 DHCPv6 (client only) RFC 3513 IPv6 Addressing Architecture RFC 3596 DNS Extension for IPv6 |
RFC 4022 MIB for TCP RFC 4113 MIB for UDP RFC 4251 SSHv6 Architecture RFC 4252 SSHv6 Authentication RFC 4253 SSHv6 Transport Layer RFC 4293 MIB for IP RFC 4419 Key Exchange for SSH RFC 4443 ICMPv6 RFC 4861 IPv6 Neighbor Discovery RFC 4862 IPv6 Stateless Address Auto-configuration MIBs RFC 1213 MIB IIRFC 1493 Bridge MIB RFC 2021 RMONv2 MIB RFC 2613 SMON MIB RFC 2618 RADIUS Client MIB RFC 2620 RADIUS Accounting MIB RFC 2665 Ethernet-Like-MIB RFC 2668 802.3 MAU MIB RFC 2674 802.1p and IEEE 802.1Q Bridge MIB RFC 2737 Entity MIB (Version 2) RFC 2863 The Interfaces Group MIB Network management IEEE 802.1AB Link Layer Discovery Protocol (LLDP)RFC 1098 A Simple Network Management Protocol (SNMP) RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events) RFC 3176 sFlow SNMPv1/v2c/v3 QoS/CoS RFC 2474 DiffServ precedence, with 4 queues per portRFC 2475 DiffServ Architecture RFC 2597 DiffServ Assured Forwarding (AF) RFC 2598 DiffServ Expedited Forwarding (EF) Ingress Rate Limiting Security IEEE 802.1X Port Based Network Access ControlRFC 1492 TACACS+ RFC 2138 RADIUS Authentication RFC 2866 RADIUS Accounting Access Control Lists (ACLs) MAC Authentication MAC Lockdown MAC Lockout Port Security Secure Sockets Layer (SSL) Web Authentication |
|
| Notes | ||
| When using mini-GBICs with this product, mini-GBICs with revision "B" or later (product number ends with the letter "B" or later, e.g., J4858B, J4859C) are required.
This product comes with a power supply clip adapter. The adapter dimensions are 1.7(d) x 10.7(w) x 3.8(h) in. (4.35 x 27.25 x 9.6 cm). The weight of the power supply clip adapter is .31 lb (.14 kg). |
||
Documentation:
Download the HP 2915 Switch Series Datasheet (PDF).
