HP 3100 SI Switch Series
Fixed Port L2 Managed Ethernet Switches
List Price:
Our Price: $267.00
List Price:
Our Price: $385.00
List Price:
Our Price: $484.00
More pricing below, click here!
Overview:
The HP 3100 SI Switch Series are cost-effective, fully managed Layer 2 switches ideal for the access layer of medium and large enterprises. Convenient 8-, 16- and 24-10/100 ports models with Gigabit Ethernet uplinks provide reliable connectivity, easy installation with quiet, fanless models and enterprise class quality of service and security features.
The HP 3100 SI Switch Series can be managed with the optional HP Intelligent Management Center (IMC) Software Platform for a single view of your entire network.
What's new
- Managed Layer 2 10/100 switches for enterprise access layer.
- 8-, 16- and 24-port models with Gigabit Ethernet uplinks.
- Fanless models for quiet deployment.
- Single View of the Network with IMC.
- Limited Lifetime Warranty 2.0 with 3 years 24x7 phone support.

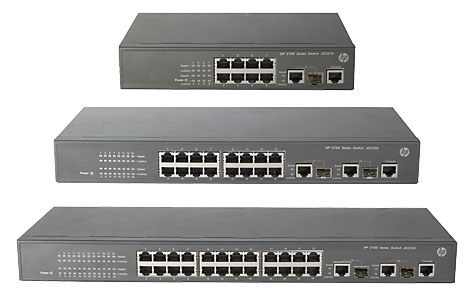

Images:

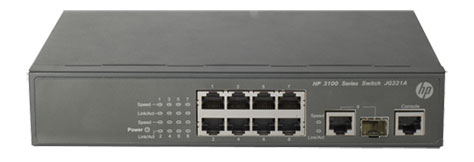

HP 3100-8 v2 SI Switch (JG221A)

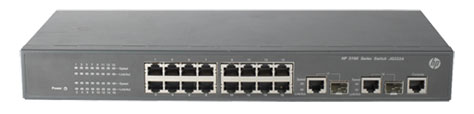

HP 3100-16 v2 SI Switch (JG222A)
HP 3100-24 v2 SI Switch (JG223A)
Features & Benefits:
Managed Fast Ethernet Access Layer Switches
- The HP 3100 SI Switch Series are cost-effective Fast Ethernet fully managed Layer 2 switches ideal for the access layer of medium and large enterprises.
- Convenient 8-, 16- and 24-ports models with Gigabit Ethernet uplinks for flexibility.
- Fanless models are ideal for quiet deployment in office spaces and other acoustically sensitive locations.
- Link aggregation expands bandwidth and enhances connection reliability.
Quality of Service (QoS) and Security Control
- The HP 3100 SI Switch Series provides traffic prioritization with supported congestion actions including weighted round robin queuing and HQ+WRR.
- Broadcast control cuts down on unwanted network broadcast traffic.
- Support for MAC Authentication and IEEE 802.1X for improved security and authentication.
- Enhanced security features include port isolation, STP BPDU port protection and root guard. Radius/HWTACAS eases switch management security administration by using a password authentication server.
Single View of the Network
- The HP 3100 SI Switch Series can be seamlessly managed with the optional HP Intelligent Management Center (IMC) Software Platform to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
- Manager and operator privilege levels enable read-only and read/write access on CLI and Web browser management interfaces.
Specifications:
3100-8 | 3100-16 | 3100-24 | |
---|---|---|---|
Part Number | HP 3100-8 v2 SI Switch (JG221A) | HP 3100-16 v2 SI Switch (JG222A) | HP 3100-24 v2 SI Switch (JG223A) |
Ports | |||
1 dual-personality 10/100/1000 port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)
Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 8 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX) Duplex: half or full 1 RJ-45 serial console port |
2 dual-personality 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)
Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 16 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX) Duplex: half or full 1 RJ-45 serial console port |
2 dual-personality 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)
Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 24 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX) Duplex: half or full 1 RJ-45 serial console port |
|
Physical characteristics | |||
9.06(w) x 6.3(d) x 1.72(h) in (23.01 x 16 x 4.37 cm) (1U height) | 14.17(w) x 6.3(d) x 1.72(h) in (35.99 x 16 x 4.37 cm) (1U height) | 17.32(w) x 6.3(d) x 1.72(h) in (43.99 x 16 x 4.37 cm) (1U height) | |
Weight | 6.61 lb (3 kg) | 6.61 lb (3 kg) | 6.61 lb (3 kg) |
Memory and processor | |||
128 MB SDRAM, 16 MB flash; packet buffer size: 384 KB | 128 MB SDRAM, 16 MB flash; packet buffer size: 384 KB | 128 MB SDRAM, 16 MB flash; packet buffer size: 384 KB | |
Mounting | |||
Requires angle mounting set if rack mounted (not included) | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (requires HP 3100/4210-16 Rack Mount Kit [JD321A]). | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included) | |
Performance | |||
100 Mb Latency | < 6 µs | < 6 µs | < 6 µs |
1000 Mb Latency | < 5 µs | < 5 µs | < 5 µs |
Throughput | up to 2.7 million pps | 5.4 million pps | 6.6 million pps |
Routing/Switching capacity | 3.6 Gbps | 7.2 Gbps | 8.8 Gbps |
Environment | |||
Operating temperature | 32°F to 113°F (0°C to 45°C) | 32°F to 113°F (0°C to 45°C) | 32°F to 113°F (0°C to 45°C) |
Operating relative humidity | 10% to 90%, noncondensing | 10% to 90%, noncondensing | 10% to 90%, noncondensing |
Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) | -40°F to 158°F (-40°C to 70°C) | -40°F to 158°F (-40°C to 70°C) |
Nonoperating/Storage relative humidity | 5% to 95%, noncondensing | 5% to 95%, noncondensing | 5% to 95%, noncondensing |
Electrical characteristics | |||
Maximum heat dissipation | 31 BTU/hr (32.71 kJ/hr) | 41 BTU/hr (43.26 kJ/hr) | 44 BTU/hr (46.42 kJ/hr) |
Voltage | 100-240 VAC | 100-240 VAC | 100-240 VAC |
Maximum power rating | 9 W | 12 W | 13 W |
Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz |
Notes | Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. | Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. | Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. |
Safety | |||
UL 60950-1EN 60825-1 Safety of Laser Products-Part 1EN 60825-2 Safety of Laser Products-Part 2IEC 60950-1CAN/CSA-C22.2 No. 60950-1EN 60950-1/A11FDA 21 CFR Subchapter JROHS Compliance | UL 60950-1EN 60825-1 Safety of Laser Products-Part 1EN 60825-2 Safety of Laser Products-Part 2IEC 60950-1CAN/CSA-C22.2 No. 60950-1EN 60950-1/A11FDA 21 CFR Subchapter JROHS Compliance | UL 60950-1EN 60825-1 Safety of Laser Products-Part 1EN 60825-2 Safety of Laser Products-Part 2IEC 60950-1CAN/CSA-C22.2 No. 60950-1EN 60950-1/A11FDA 21 CFR Subchapter JROHS Compliance |
Services & Support:
HP Networking Services - Services that add value to your business:
The warranties on HP Networking products provide a robust foundation for ongoing network support, but many customers have advanced support needs. Today's enterprise businesses, regardless of their size, are under increasing pressure to reduce the cost and complexity of supporting their network infrastructures. Demand for new services from businesses and their end users is constantly increasing. HP offers an affordable, comprehensive portfolio of networking services for organizations of all sizes. HP has a unique services advantage you can benefit from, and HP is the only vendor in the IT industry that can provide integrated and consistent support for your entire technology infrastructure worldwide, including networking, servers and storage, and imaging and printing, as well as desktop and mobile computing, to help you grow your business with expert support that is affordable, personal, and scaled to your needs. HP Networking's implementation and design centers simplify your network planning, while HP Technology and Enterprise Services deliver choice and flexibility.
HP provides a full range of custom services to meet the end-to-end networking needs of our customers. HP Network Lifecycle Services form the core foundation of network consulting, assessments, planning, design, integration, deployment, and management. They are available as standalone services or can be crafted to deliver solutions across the services portfolio, spanning network performance, network security and risk management, global deployment, data center networking, wireless LAN/mobility, and Unified Communications and Collaboration.
Documentation:
Download the HP 3100 SI Switch Series Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
