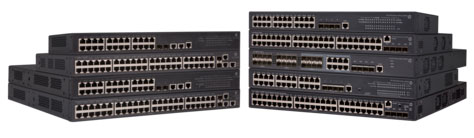

HP 5130 EI Switch Series
Fixed Port L3 Managed Ethernet Switches

Features & Benefits:

Scalable and Flexible Access Layer Switches

• The HP 5130 EI Switch Series delivers flexibility, scalability and low TCO at the access layer of medium- and large-enterprise campus networks. The 5130 supports stacking, fixed 10GbE ports, static layer 3 routing and RIP v1/v2, PoE+, ACLs, IPv6 and power savings with Energy Efficient Ethernet.
• The HP Intelligent Resilient Framework (IRF) virtualizes up to nine physical switches into one logical device for simpler, flatter, more agile networks.
• Four fixed 10GbE uplinks (SFP+ and 10GBASE-T) deliver performance for bandwidth intensive applications.
• Includes Software-defined Network (SDN) capabilities with OpenFlow 1.3 support for future proofing your network.
• Limited Lifetime Warranty 2.0 with 3 years 24x7 phone support and no software licensing required.

Improved Quality of Service with Traffic Management

• The HP 5130 EI Switch Series supports advanced classifier-based QoS which groups traffic using multiple match criteria based on Layer 2 and 3 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or entire switch.
• Provides traffic prioritization with supported congestion actions include: strict priority (SP) queuing, weighted round robin (WRR), weighted random early detection (WRED), and SP+WRR and traffic policing with Committed Access Rate (CAR) and line rate.
• Reduce unwanted network traffic with broadcast control allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic.

Comprehensive Security Control

• The HP 5130 EI Switch Series supports flexible authentication methods including 802.1X and MAC Authentication for greater security and policy-driven application authentication. Per-user access control lists (ACLs) provide identity-driven security and access control.
• ACLs provide IP Layer 2 to Layer 4 traffic filtering; supports global ACL, VLAN ACL, port ACL, and IPv6 ACL.
• Security with encryption of access methods (CLI, GUI, or MIB) through SSHv2, SSL, and/or SNMPv3, and other features including DHCP protection, IP source guard, dynamic ARP protection and RADIUS/HWTACAS.

Single View of the Network

• The HP 5130 EI Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
• RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.

Specifications:

	HP 5130-24G-4SFP+ EI Switch (JG932A)	HP 5130-24G-SFP-4SFP+ EI Switch (JG933A)	HP 5130-48G-4SFP+ EI Switch (JG934A)
Ports
	24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/ 100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ fixed 1000/10000 SFP+ ports 1 RJ-45 serial console port	16 SFP 100/1000 Mbps ports 8 SFP dual-personality ports; 100/1000BASE-X or 100/1000BASE-T RJ-45 Combo Ports 4 SFP+ fixed 1000/10000 SFP+ ports 1 RJ-45 serial console port 2 power supply slots 1 minimum power supply required (ordered separately)	48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/ 100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ fixed 1000/10000 SFP+ ports 1 RJ-45 serial console port
Physical characteristics
dimensions	17.32(w) x 6.3(d) x 1.72(h) in. (44 x 16 x 4.36 cm) (1U height)	17.32(w) x 14.17(d) x 1.72(h) in. (44 x 36 x 4.36 cm) (1U height)	17.32(w) x 10.24(d) x 1.72(h) in. (44 x 26 x 4.36 cm) (1U height)
Weight	11.02 lb (5 kg)	17.64 lb (8 kg)	11.02 lb (5 kg)
Memory and processor
	1 GB SDRAM, 512 MB flash; packet buffer size: 1.5 MB	1 GB SDRAM, 512 MB flash; packet buffer size: 1.5 MB	1 GB SDRAM, 512 MB flash; packet buffer size: 3 MB
Mounting
	Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)	Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)	Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)
Performance
1000 Mb Latency	< 5 µs	< 5 µs	< 5 µs
Throughput	96 Mpps	96 Mpps	130.9 Mpps
Routing/Switching capacity	128 Gbps	128 Gbps	176 Gbps
Routing table EIze	512 entries (IPv4), 256 entries (IPv6)	512 entries (IPv4), 256 entries (IPv6)	512 entries (IPv4), 256 entries (IPv6)
Environment
Operating temperature	23°F to 113°F (-5°C to 45°C)	23°F to 113°F (-5°C to 45°C)	23°F to 113°F (-5°C to 45°C)
Operating relative humidity	10% to 90%, noncondenEIng	10% to 90%, noncondenEIng	10% to 90%, noncondenEIng
Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity	5% to 95%, noncondenEIng	5% to 95%, noncondenEIng	5% to 95%, noncondenEIng
Electrical characteristics
Frequency	50/60 Hz	50/60 Hz	50/60 Hz
Maximum heat dissipation	64/88 BTU/hr (67.52/92.84 kJ/hr)	102/204 BTU/hr (107.61/215.22 kJ/hr), for AC powered units. For DC powered units heat dissipation is 130 BTU/hr minimum, 232 BTU/hr maximum.	130/153 BTU/hr (137.15/161.42 kJ/hr), for AC powered units. For DC powered units heat dissipation is 130 BTU/hr minimum, 171 BTU/hr maximum.
Voltage	100-240 VAC	100-240 VAC	100-240 VAC
Maximum power rating	26 W	60 W	45 W
Notes	Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.	Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. Power ratings for AC power supply indicated above. For DC input power, idle power is 38 W and maximum is 68 W. DC maximum input current is 8 A. Units are supplied without a power supply. Customer must buy 1 or 2 JD362A (AC) or JD366A (DC) power supply.	Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. Power ratings for AC power indicated above. Current used is 5 A maximum when DC power used. For DC input power, idle power is 38 W, maximum DC power used is 50 W
Safety
	UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; RoHS Compliance	UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; RoHS Compliance	UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance

	HP 5130-24G-PoE+-4SFP+ (370W) EI Switch (JG936A)	HP 5130-48G-PoE+-4SFP+ (370W) EI Switch (JG937A)
Ports
	24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/ 100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ fixed 1000/10000 SFP+ ports 1 RJ-45 serial console port	48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/ 100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ fixed 1000/10000 SFP+ ports 1 RJ-45 serial console port
Physical characteristics
Dimensions	17.32(w) x 11.81(d) x 1.72(h) in. (44 x 30 x 4.37 cm) (1U height)	17.32(w) x 14.17(d) x 1.72(h) in. (44 x 36 x 4.36 cm) (1U height)
Weight	17.64 lb (8 kg)	17.64 lb (8 kg)
Memory and processor
	1 GB SDRAM, 512 MB flash; packet buffer size: 1.5 MB	1 GB SDRAM, 512 MB flash; packet buffer size: 3 MB
Mounting
	Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)	Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)
Performance
1000 Mb Latency	< 5 µs	< 5 µs
Throughput	96 Mpps	130.9 Mpps
Routing/Switching capacity	128 Gbps	176 Gbps
Routing table EIze	512 entries (IPv4), 256 entries (IPv6)	512 entries (IPv4), 256 entries (IPv6)
Environment
Operating temperature	23°F to 113°F (-5°C to 45°C)	23°F to 113°F (-5°C to 45°C)
Operating relative humidity	10% to 90%, noncondenEIng	10% to 90%, noncondenEIng
Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity	5% to 95%, noncondenEIng	5% to 95%, noncondenEIng
Electrical characteristics
Frequency	50/60 Hz	50/60 Hz
Maximum heat dissipation	102/1569 BTU/hr (107.61/1655.29 kJ/hr), for AC power. For DC power minimum heat dissipation is 85 BTU/hr and maximum heat dissipation is 2559 BTU/hr	160/1671 BTU/hr (168.8/1762.91 kJ/hr), for AC power. For DC power minimum heat dissipation is 147 BTU/hr and 3037 BTU/hr maximum.
Voltage	100-240 VAC	100-240 VAC
Maximum power rating	460 W	490 W
PoE power	370 W PoE+	370 W PoE+
Notes	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE power is the power supplied by the internal power supply. When supplemented with the use of an HP RPS1600 Redundant Power System, up to 740 W of PoE+ can be supplied. Maximum current rating for DC power is 25 A. AC input power is 30 W typical, and 460 W maximum (including 370 W PoE+ consumption). DC input voltage range is -54 to -57 VDC. Total DC input power is 25 W typical and 790 W with 740 W PoE+ power consumption. DC input voltage range is -54 VDC to -57 VDC. DC input source is the HP RPS1600.	Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE power is the power supplied by the internal power supply. When supplemented with the use of an HP RPS1600 Redundant Power System, up to 740 W of PoE+ can be supplied. Maximum current rating for DC power is 25 A. AC input power is 47 W typical, and 490 W maximum (including 370 W PoE+ consumption). DC input voltage range is -54 to -57 VDC. Total DC input power is 43 W typical and 890 W with 800 W PoE+ power consumption. DC input voltage range is -54 VDC to -57 VDC. DC input source is the HP RPS1600.
Safety
	UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; RoHS Compliance	UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; RoHS Compliance

Documentation:
