HP 5500 HI Switch Series
Fixed Port L3 Managed Ethernet Switches

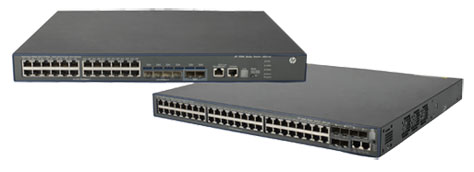

Images:

Features & Benefits:

Highly Resilient, More Secure and Scalability

• The HP 5500 HI Switch Series delivers outstanding resiliency, security, and multiservice support capabilities at the edge layer of data center and large campus networks. Advanced technologies include OAM, CFD, RRPP, BFD, Multi-level QoS, MPLS, and VPLS.
• Offers scalable stacking with fixed or modular 10GbE uplinks (SFP+ and 10GBASE-T) and up to 1440 W of PoE+ power with dual redundant hot-swappable power supplies for growth and reliability. The HP Intelligent Resilient Fabric (IRF) virtualizes up to nine physical switches into one logical device for simpler, flatter, more agile networks.
• The 5500 HI has IPv6 support and fully featured L3 functionality, including RIP, OSPF, ISIS, BGP, and PIM.
• Includes software-defined network (SDN) capabilities with OpenFlow 1.3 support for future proofing your network.
• Limited Lifetime Warranty 2.0 with 3 years 24x7 phone support and no software licensing required.

Powerful Performance with Higher Levels of Security

• The 5500 HI Switch Series provides higher levels of security with hardware-based, wire-speed access control lists (ACLs).
• Provides simple administration without impacting network performance offering feature-rich TCAM-based ACL implementation.
• Non-blocking architecture delivers up to 224 Gbps of wire-speed switching with a non-blocking switching fabric and up to 167 Mpps throughput.

Robust Quality of Service (QoS)

• The HP 5500 HI Switch Series supports advanced classifier-based QoS which directs traffic using multiple match criteria based on Layer 2, 3, and 4 information. It applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or whole switch.
• Creates traffic classes based on ACLs, IEEE 802.1p precedence, IP, and DSCP or Type of Service (ToS) precedence. Supports filter, redirect, mirror, or remark tasks.
• Get extensive traffic prioritization with congestion actions: strict priority (SP) queuing, weighted round robin (WRR), weighted fair queuing (WFQ), weighted random early discard (WRED), weighted deficit round robin (WDRR), SP+WDRR, and SP+WFQ.

Comprehensive Security Control and a Single View of the Network

• The HP 5500 HI Switch Series supports flexible authentication methods including 802.1X, and MAC and Web for greater policy-driven application security.
• This Series offers identity-driven security and access control with automatic VLAN assignment. Per-user ACLs allow access to specific network services without risking network security. Security features include: IP source guard, DHCPv6 snooping, STP BPDU port protection, RADIUS/HWTACACS, and SSL.
• Can be seamlessly managed with HP Intelligent Management Center (IMC) to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
• RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.

Specifications:

	5500-24G-4SFP	5500-48G-4SFP	5500-24G-PoE+-4SFP

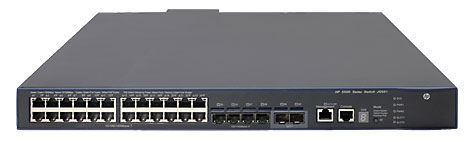

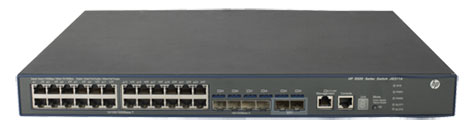

Part Numbers	HP 5500-24G-4SFP HI Switch with 2 Interface Slots (JG311A)	HP 5500-48G-4SFP HI Switch with 2 Interface Slots (JG312A)	HP 5500-24G-PoE+-4SFP HI Switch with 2 Interface Slots (JG541A)
Ports
	24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Media Type: Auto-MDIX Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP fixed Gigabit Ethernet SFP ports 2 port expansion module slots 1 RJ-45 serial console port 2 SFP+ Supports a maximum of 24 autosensing 10/100/1000 ports	48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Media Type: Auto-MDIX Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP fixed Gigabit Ethernet SFP ports 2 port expansion module slots 1 RJ-45 serial console port 2 SFP+ Supports a maximum of 48 autosensing 10/100/1000 ports	24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 fixed Gigabit Ethernet SFP ports 2 SFP+ 10GbE ports 2 port expansion module slots Supports a maximum of 38 autosensing 100/1000 ports, with optional module 1 RJ-45 serial console port 1 RJ-45 out-of-band management port
Power supplies
	2 power supply slots 1 minimum power supply required (ordered separately)	2 power supply slots 1 minimum power supply required (ordered separately)	2 power supply slots 1 minimum power supply required (ordered separately)
Physical characteristics
	14.17(w) x 17.32(d) x 1.72(h) in (35.99 x 43.99 x 4.37 cm) (1U height)	16.54(w) x 17.32(d) x 1.72(h) in (42.01 x 43.99 x 4.37 cm) (1U height)	17.32(w) x 18.11(d) x 1.72(h) in (43.99 x 46 x 4.37 cm) (1U height)
Weight	16.53 lb (7.5 kg), Fully loaded	18.74 lb (8.5 kg)	22.05 lb (10 kg) shipping weight
Memory and processor
	1 GB SDRAM, 512 MB flash; packet buffer size: 3 MB	1 GB SDRAM, 512 MB flash; packet buffer size: 6 MB	1 GB SDRAM, 512 MB flash; packet buffer size: 3 MB
Mounting
	Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)	Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)	Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)
Performance
1000 Mb Latency	< 5 µs	< 5 µs	< 5 µs
10 Gbps Latency	< 3 µs	< 3 µs	< 3 µs
Throughput	130.9 million pps	166.6 million pps	up to 130.9 million pps
Routing/Switching capacity	176 Gbps	224 Gbps	176 Gb/s
Routing table size	12000 entries	12000 entries	12000 entries
Environment
Operating temperature	32°F to 122°F (0°C to 50°C)	32°F to 122°F (0°C to 50°C)	32°F to 113°F (0°C to 45°C)
Operating relative humidity	5% to 95%, noncondensing	5% to 95%, noncondensing	5% to 95%, noncondensing
Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity	5% to 95%, noncondensing	5% to 95%, noncondensing	5% to 95%, noncondensing
Acoustic	Low-speed fan: 47.9 dB, High-speed fan: 51.1 dB	Low-speed fan: 48.6 dB, High-speed fan: 57.6 dB	Low-speed fan: 41.0 dB, High-speed fan: 64.0 dB; ISO 7779
Electrical characteristics
Maximum heat dissipation	481 BTU/hr (507.46 kJ/hr)	651 BTU/hr (686.81 kJ/hr)	460 BTU/hr (485.3 kJ/hr)
Maximum power rating			740 W
Frequency	50/60 Hz	50/60 Hz	50/60 Hz
Notes	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE power is the maximum power available from the required power supply or supplies. Device supports 1 or 2 internal modular power supplies. JG544A will supply up to 450 watts of PoE+ power per installed unit. JG545A will supply up to 740 watts of PoE+ power per installed unit to the extent needed by the installation
Safety
	UL 60950-1EN 60825-1 Safety of Laser Products-Part 1EN 60825-2 Safety of Laser Products-Part 2IEC 60950-1CAN/CSA-C22.2 No. 60950-1EN 60950-1/A11FDA 21 CFR Subchapter JROHS Compliance	UL 60950-1EN 60825-1 Safety of Laser Products-Part 1EN 60825-2 Safety of Laser Products-Part 2IEC 60950-1CAN/CSA-C22.2 No. 60950-1EN 60950-1/A11FDA 21 CFR Subchapter JROHS Compliance	UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; ROHS Compliance; AS/ NZS 60950-1; GB 4943

	5500-48G-PoE+-4SFP	5500-24G-4SFP

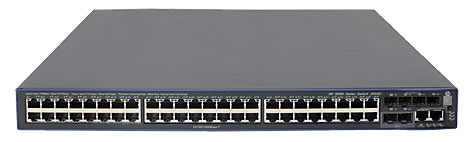

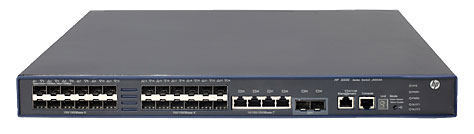

Part Numbers	HP 5500-48G-PoE+-4SFP HI Switch with 2 Interface Slots (JG542A)	HP 5500-24G-SFP HI Switch with 2 Interface Slots (JG543A)
Ports
	48 RJ-45 autosensing 10/100/1000 PoE+ ports; Duplex: 10BASET/100BASE-TX: half or full; 1000BASE-T: full only 4 fixed Gigabit Ethernet SFP ports 2 SFP+ 10GbE ports 2 port expansion module slots Supports a maximum of 70 autosensing 100/1000 ports, with optional module 1 RJ-45 serial console port 1 RJ-45 out-of-band management port	24 fixed Gigabit Ethernet SFP ports 4 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP+ 10GbE ports 2 port expansion module slots Supports a maximum of 12 autosensing 10/100/1000 ports, with optional module 1 RJ-45 serial console port RJ-45 out-of-band management port
Power supplies
	2 power supply slots 1 minimum power supply required (ordered separately)	2 power supply slots 1 minimum power supply required (ordered separately)
Physical characteristics
	17.32(w) x 18.11(d) x 1.72(h) in (43.99 x 46 x 4.37 cm) (1U height)	17.32(w) x 14.17(d) x 1.72(h) in (43.99 x 35.99 x 4.37 cm) (1U height)
Weight	23.15 lb (10.5 kg)	16.53 lb (7.5 kg)
Memory and processor
	1 GB SDRAM, 512 MB flash; packet buffer size: 6 MB	1 GB SDRAM, 512 MB flash; packet buffer size: 3 MB
Mounting
	Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)	Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)
Performance
1000 Mb Latency	< 5 µs	< 5 µs
10 Gbps Latency	< 3 µs	< 3 µs
Throughput	up to 166.6 million pps	up to 130.9 million pps
Routing/Switching capacity	224 Gb/s	176 Gb/s
Routing table size	12000 entries (IPv4), 6000 entries (IPv6)	12000 entries (IPv4), 6000 entries (IPv6)
MAC address table size	32000 entries	32000 entries
Environment
Operating temperature	32°F to 113°F (0°C to 45°C)	32°F to 122°F (0°C to 50°C)
Operating relative humidity	5% to 95%, noncondensing	5% to 95%, noncondensing
Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity	5% to 95%, noncondensing	5% to 95%, noncondensing
Acoustic	Low-speed fan: 48.3 dB, High-speed fan: 54.0 dB; ISO 7779	Low-speed fan: 48.3 dB, High-speed fan: 54.0 dB; ISO 7779
Electrical characteristics
Maximum heat dissipation	666 BTU/hr (702.63 kJ/hr)	460 BTU/hr (485.3 kJ/hr
Maximum power rating	195 W	135 W
PoE power	1440 W
Notes	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE power is the power supplied by the internal power supply. It is dependent on the type and quantity of power supplies. Device supports 1 or 2 internal modular power supplies. JG544A will supply 450 watts of PoE+ power per installed unit. JG545A will supply up to 800 watts of PoE+ power per installed unit.	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety
	UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; ROHS Compliance; AS/NZS 60950-1; GB 4943	UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; ROHS Compliance; AS/NZS 60950-1; GB 4943
