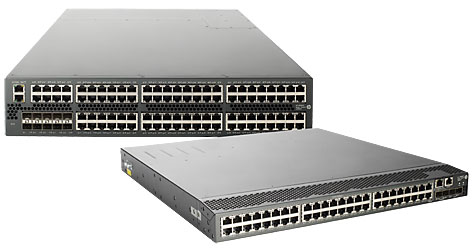

HP 5830 Switch Series
High-density, Gigabit and 10 Gigabit per second (Gbps) data center top-of-rack

Features & Benefits:

Quality of Service (QoS)

• Traffic policing — supports Committed Access Rate (CAR) and line rate
• Powerful QoS feature — creates traffic classes based on access control lists (ACLs), IEEE 802.1p precedence, IP, DSCP, or Type of Service (ToS) precedence; supports filter, redirect, mirror, or remark; supports the following congestion actions: strict priority (SP) queuing, weighted round robin (WRR), weighted fair queuing (WFQ), weighted random early discard (WRED), SP+WRR, and SP+WFQ

Management

• sFlow (RFC 3176) — provides scalable ASIC-based wire-speed network monitoring and accounting with no impact on network performance; this allows network operators to gather a variety of sophisticated network statistics and information for capacity planning and real-time network monitoring purposes
• Remote configuration and management — is available through a secure Web browser or a CLI
• Manager and operator privilege levels — enable read-only (operator) and read/write (manager) access on CLI and Web browser management interfaces
• Management VLAN — segments traffic to and from management interfaces, including CLI/telnet, a Web browser interface, and SNMP
• Multiple configuration files — can be stored to the flash image
• Secure Web GUI — provides a secure, easy-to-use graphical interface for configuring the module via HTTPS
• SNMPv1, v2c, and v3 — facilitate centralized discovery, monitoring, and secure management of networking devices
• Remote monitoring (RMON) — uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group
• Network Time Protocol (NTP) — synchronizes timekeeping among distributed time servers and clients; keeps consistent timekeeping among all clock-dependent devices within the network so that the devices can provide diverse applications based on the consistent time
• Out-of-band interface — isolates management traffic from user data plane traffic for complete isolation and total reachability, no matter what happens in the data plane
• Remote intelligent mirroring — mirrors ingress/egress ACL-selected traffic from a switch port or VLAN to a local or remote switch port anywhere on the network

Connectivity

• Jumbo frames — on Gigabit Ethernet and 10-Gigabit Ethernet ports, jumbo frames allow high-performance remote backup and disaster-recovery services
• Auto-MDIX — automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports
• IPv6 native support —
  • IPv6 host — enables switches to be managed and deployed at the IPv6 network's edge
  • Dual stack (IPv4 & IPv6) — transitions from IPv4 to IPv6, supporting connectivity for both protocols
  • Multicast Listener Discovery (MLD) snooping — IPv6 multicast traffic to the appropriate interface
  • IPv6 ACL/QoS — supports ACL and QoS for IPv6 network traffic, preventing traffic flooding
  • IPv6 routing — supports IPv6 static routes, RIP, BGP4+v6, IS-ISv6, and OSPF routing protocols

Performance

• Extraordinarily high port density — the HP 5830AF-96G Switch is a single box-type switch that can provide 96 GbE ports and 10 10GbE ports simultaneously with full line-rate switching and forwarding
• Ultradeep packet buffering — provides up to a 3 GB packet buffer to help eliminate network congestion at the I/O associated with heavy use of server virtualization, as well as bursty multimedia, storage applications, and other critical services
• Hardware-based wire-speed access control lists (ACLs) — feature-rich ACL implementation (TCAM-based) helps provide high levels of security and ease of administration without impacting network performance
• Local Address Resolution Protocol (ARP) — ARP fast reply feature provides an outstanding utilization of air-interface resources by first issuing an ARP request locally before the AP broadcasts over the radio interface

Resiliency and high availability

• Device Link Detection Protocol (DLDP) — monitors link connectivity and shuts down ports at both ends if unidirectional traffic is detected, preventing loops in STP-based networks
• Virtual Router Redundancy Protocol (VRRP) — allows groups of two routers to dynamically back each other up to create highly available routed environments
• Intelligent Resilient Framework (IRF) — creates virtual resilient switching fabrics, where two or more switches perform as a single L2 switch and L3 router; switches do not have to be co-located and can be part of a disaster recovery system; servers or switches can be attached using standard LACP for automatic load balancing and high availability; can eliminate the need for complex protocols like Spanning Tree Protocol, Equal-Cost Multipath (ECMP), or VRRP, thereby simplifying network operation
• Rapid Ring Protection Protocol (RRPP) — connects multiple switches in a high-performance ring using standard Ethernet technology; traffic can be rerouted around the ring in less than 200 ms, reducing the impact on traffic and applications
• Smart link — allows 200 ms failover between links
• Data center optimized design — supports front-to-back/back-to-front airflow for hot/cold aisles, rear rack mounts, and redundant hot-swappable AC or DC power and fans

Manageability

• Troubleshooting — ingress and egress port monitoring enable network problem solving

Layer 2 switching

• Spanning Tree/MSTP and RSTP — prevent network loops
• Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) protocol snooping — effectively control and manage the flooding of multicast packets in a Layer 2 network
• 32K MAC addresses — provide access to many Layer 2 devices
• IEEE 802.1ad QinQ and Selective QinQ — increase the scalability of an Ethernet network by providing a hierarchical structure; connect multiple LANs on a high-speed campus or metro network
• 10GbE port aggregation — allows grouping of ports to increase overall data throughput to a remote device
• Port isolation — increases security by isolating ports within a VLAN while still allowing them to communicate with other VLANs
• Per-VLAN Spanning Tree Plus (PVST+) — allows each VLAN to build a separate spanning tree to improve link bandwidth usage in network environments where multiple VLANs exist
• GVRP VLAN Registration Protocol — allows automatic learning and dynamic assignment of VLANs

Layer 3 services

• Loopback interface address — defines an address in Routing Information Protocol (RIP) and Open Standard Path First (OSPF), improving diagnostic capability
• User Datagram Protocol (UDP) helper function — allows UDP broadcasts to be directed across router interfaces to specific IP unicast or subnet broadcast addresses and prevents server spoofing for UDP services such as DHCP
• Route maps — provide more control during route redistribution; allow filtering and altering of route metrics
• Dynamic Host Configuration Protocol (DHCP) — simplifies the management of large IP networks and supports client and server; DHCP Relay enables DHCP operation across subnets

Layer 3 routing

• IPv6 tunneling — is an important element for the transition from IPv4 to IPv6; allows IPv6 packets to traverse IPv4-only networks by encapsulating the IPv6 packet into a standard IPv4 packet; supports manually configured, 6to4, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnels
• Bidirectional Forwarding Detection (BFD) — enables link connectivity monitoring and reduces network convergence time for RIP, OSPF, BGP, IS-IS, VRRP, and IRF
• Policy-based routing — makes routing decisions based on policies set by the network administrator
• IGMPv1, v2, and v3 — allow individual hosts to be registered on a particular VLAN
• PIM-SSM, PIM-DM, and PIM-SM (for IPv4 and IPv6) — support IP Multicast address management and inhibition of DoS attacks
• Layer 3 IPv4 routing — provides routing of IPv4 at media speed; supports static routes, RIP and RIPv2, OSPF, IS-IS, and BGP
• Equal-Cost Multipath (ECMP) — enables multiple equal-cost links in a routing environment to increase link redundancy and scale bandwidth
• Layer 3 IPv6 routing — provides routing of IPv6 at media speed; supports static routes, RIPng, OSPFv3, IS-ISv6, and MP-BGP

Security

• Access control lists (ACLs) — provide IP Layer 3 filtering based on source/destination IP address/subnet and source/destination TCP/UDP port number
• Secure Shell — encrypts all transmitted data for secure remote CLI access over IP networks
• Port security — allows access only to specified MAC addresses, which can be learned or specified by the administrator
• Secure FTP — allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a switch configuration file
• Secure management access — securely encrypts all access methods (CLI, GUI, or MIB) through SSHv2, SSL, and/or SNMPv3
• Identity-driven security and access control —
  • Per-user ACLs — permits or denies user access to specific network resources based on user identity, location, and time of day, allowing multiple types of users on the same network to access specific network services without risk to network security or unauthorized access to sensitive data
  • Automatic VLAN assignment — automatically assigns users to the appropriate VLAN based on their identity and location, and the time of day
• STP BPDU port protection — blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks
• DHCP protection — blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks
• Dynamic ARP protection — blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data
• STP Root Guard — protects the root bridge from malicious attacks or configuration mistakes
• Guest VLAN — similar to IEEE 802.1X, it provides a browser-based environment to authenticated clients
• MAC-based authentication — allows or denies access to the switch based on a client MAC address
• IP Source Guard — helps prevent IP spoofing attacks
• Endpoint Admission Defense (EAD) — provides security policies to users accessing a network
• RADIUS/HWTACACS — eases switch management security administration by using a password authentication server

Convergence

• IP multicast snooping (data-driven IGMP) — automatically prevents flooding of IP multicast traffic
• IEEE 802.1AB Link Layer Discovery Protocol (LLDP) — is an automated device discovery protocol that provides easy mapping of network management applications
• Internet Group Management Protocol (IGMP) — is used by IP hosts to establish and maintain multicast groups; supports IGMPv1, v2, and v3; utilizes Any-Source Multicast (ASM) or Source-Specific Multicast (SSM) to manage IPv4 multicast networks
• Protocol Independent Multicast (PIM) — is used for IPv4 and IPv6 multicast applications; supports PIM Dense Mode (PIM-DM), Sparse Mode (PIM-SM), and Source-Specific Mode (PIM-SSM)
• Multicast Source Discovery Protocol (MSDP) — is used for inter-domain multicast applications, allowing multiple PIM-SM domains to interoperate
• Multicast Border Gateway Protocol (MBGP) — allows multicast traffic to be forwarded across BGP networks and kept separate from unicast traffic
• Multicast VLAN — allows multiple VLANs to receive the same IPv4 or IPv6 multicast traffic, lessening network bandwidth demand by reducing or eliminating multiple streams to each VLAN
• LLDP-MED — is a standard extension that automatically configures network devices, including LLDP-capable IP phones
• LLDP-CDP compatibility — receives and recognizes CDP packets from Cisco's IP phones for seamless interoperation

Monitor and diagnostics

• Port mirroring — enables traffic on a port to be simultaneously sent to a network analyzer for monitoring
• OAM ( IEEE 802.3ah) — operations, administration and maintenance (OAM) management capability detects data link layer problems that occurred in the "last mile"; monitors the status of the link between the two devices
• CFD (IEEE 802.1ag) — connectivity fault detection (CFD) provides a Layer 2 link OAM mechanism used for link connectivity detection and fault locating

Additional information

• Green initiative support — provides support for RoHS and WEEE regulations
• Green IT and power — use the latest advances in silicon development, shut off unused ports, and use variable-speed fans to improve energy efficiency

Warranty and support

• 1-year warranty — with advance replacement and next-business-day delivery (available in most countries)
• Electronic and telephone support — limited electronic and telephone support is available from HP; to reach our support centers, refer to www.hp.com/networking/contact-support; for details on the duration of support provided with your product purchase, refer to www.hp.com/networking/warrantysummary
• Software releases — to find software for your product, refer to www.hp.com/networking/support; for details on the software releases available with your product purchase, refer to www.hp.com/networking/warrantysummary

Specifications:

	5830AF-48G (JC691A)	5830AF-96G (JC694A)
Ports
	48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 dual-personality ports auto-sensing 10/100/1000Base-T or SFP 2 fixed 1000/10000 SFP+ ports 1 RJ-45 serial console port 1 RJ-45 out-of-band management port 1 extended module slot	96 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 10 fixed 1000/10000 SFP+ ports 1 RJ-45 serial console port 1 RJ-45 out-of-band management port
Power supplies
	2 power supply slots 1 minimum power supply required (ordered separately)	2 power supply slots 1 minimum power supply required (ordered separately)
Fan tray
	1 fan tray slot	1 fan tray slot
Physical characteristics
	17.32(w) x 18.11(d) x 1.72(h) in (43.99 x 46 x 4.37 cm) (1U height)	17.32(w) x 25.98(d) x 3.39(h) in (43.99 x 65.99 x 8.61 cm)
Weight	14.53 lb (6.59 kg)	31.75 lb (14.4 kg)
Memory and processor
	64 MB flash, 1 GB SDRAM; packet buffer size: 1 GB	64 MB flash, 1 GB SDRAM; packet buffer size: 3 GB
Performance
Throughput	119 million pps (64-byte packets)	291.6 million pps (64-byte packets)
Switching capacity	160 Gbps	392 Gbps
Routing table size	12000 entries	12000 entries
MAC address table size	32000 entries	32000 entries
Environment
Operating temperature	32°F to 113°F (0°C to 45°C)	32°F to 113°F (0°C to 45°C)
Operating relative humidity	5% to 95%	5% to 95%
Acoustic	Low-speed fan: 58 dB, High-speed fan: 65 dB	Low-speed fan: 58 dB, High-speed fan: 65 dB
Electrical characteristics
Maximum heat dissipation	440 BTU/hr (464.2 kJ/hr)	1209 BTU/hr (1275.49 kJ/hr)
Voltage	100-240 VAC	100-240 VAC
DC voltage	-40 to -60 VDC	-40 to -60 VDC
Frequency	50/60 Hz	50/60 Hz
Safety
	UL 60950-1EN 60825-1 Safety of Laser Products-Part 1EN 60825-2 Safety of Laser Products-Part 2IEC 60950-1CAN/CSA-C22.2 No. 60950-1AnatelULARGOSTEN 60950-1/A11FDA 21 CFR Subchapter JNOMROHS Compliance	UL 60950-1EN 60825-1 Safety of Laser Products-Part 1EN 60825-2 Safety of Laser Products-Part 2IEC 60950-1CAN/CSA-C22.2 No. 60950-1AnatelULARGOSTEN 60950-1/A11FDA 21 CFR Subchapter JNOMROHS Compliance
Notes
	Additional specifications Static MAC table: 5120 Max VLAN interface: 1,000 Multicast L2 entries for IPv4: 2,000 Multicast L2 entries for IPv6: 1,000 Multicast L3 entries for IPv4: 2,000 Multicast L3 entries for IPv6: 1,000 VLAN table: 4,000 QoS forward queue number: 8 Static ARP number: 1,000 Dynamic ARP number: 8,000 MAX number in one link group: 8 Link group number: 128 ACL number: 4,000 (ingress); 512 (egress)	Additional specifications Static MAC table: 5120 Max VLAN interface: 1,000 Multicast L2 entries for IPv4: 2,000 Multicast L2 entries for IPv6: 1,000 Multicast L3 entries for IPv4: 2,000 Multicast L3 entries for IPv6: 1,000 VLAN table: 4,000 QoS forward queue number: 8 Static ARP number: 1,000 Dynamic ARP number: 8,000 MAX number in one link group: 8 Link group number: 128 ACL number (GbE ports): 8,000 (ingress); 1,000 (egress) ACL number(10 GbE ports): 2,000 (ingress); 512 (egress)

Documentation:

Download the HP 5830 Switch Series Datasheet (PDF).
