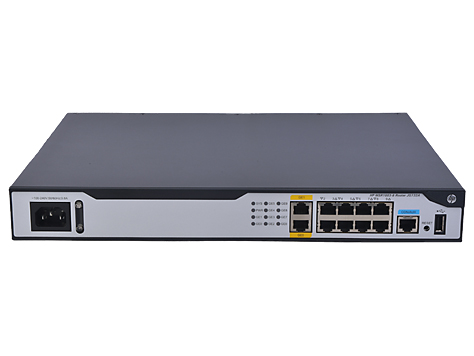

HP MSR1000 Series
Modular Ethernet Router

Features & Benefits:

Reduce Complexity and Simplify Your Network

• The HP MSR1000 Router Series simplifies your network through integrated routing/switching/security/voice/3G and 4G LTE WAN.
• Single pane of glass management with HP Intelligent Management Center makes administration easier.
• Zero-touch deployment and Dynamic VPN reduces management complexity.

Enhance Time to Service and Branch Performance

• The HP MSR1000 Router Series offers high performance routing with up to 500Kpps forwarding and 170Mbps of IPSec encryption throughput to meet bandwidth-intensive applications demands for small branch offices.
• Comprehensive feature set enables branch services to support your needs.
• Integrated security eases the transition to the cloud.
• Powerful security capacity and high port density satisfies small branches with embedded hardware encryption.

Increased Affordability and Reduce TCO

• The HP MSR1000 Router Series delivers an entry-level modular router to reduce your TCO through open standards, power and space savings, and energy-efficient hardware.
• No additional licensing complexity or cost for advanced features.

Increase Flexibility and Agility, Fortify Resiliency and Survivability

• The HP MSR1000 Router Series is built on a modular platform with a wide range of connectivity options that enables the right design for your small branch needs.
• Based on open standards for ease of network integration.
• 4GE LTE and 3G WAN access support enables service and business continuity in the branch.
• Advanced hardware architecture with multi-core processors provides reliable, high performance functionality.

Specifications:

	HP MSR1002-4 AC Router (JG875A)	HP MSR1003-8 AC Router (JG732A) Comware V5 based	HP MSR1003-8S AC Router (JH060A) Comware V7 based
I/O ports and slots
	2 SIC slots, or 1 DSIC slot 1 RJ-45 autosensing 10/100/1000 WAN port 1 SFP fixed Gigabit Ethernet SFP port 4 RJ-45 autosensing 10/100/1000 LAN ports 1 Serial port	3 SIC slots, or 1 DSIC slot, and 1 SIC slot 2 RJ-45 autosensing 10/100/1000 WAN ports 8 RJ-45 autosensing 10/100/1000 LAN ports	3 SIC slots, or 1 DSIC slot, and 1 SIC slot 2 RJ-45 autosensing 10/100/1000 WAN ports 8 RJ-45 autosensing 10/100/1000 LAN ports
Additional ports and slots
	1 USB 2.0 1 RJ-45 console port to access limited CLI port	1 USB 2.0 1 RJ-45 console port to access limited CLI port	1 USB 2.0 1 RJ-45 console port to access limited CLI port
AP characteristics
Radios (via optional modules)	3G, 4G LTE	3G, 4G LTE	3G, 4G LTE
Physical characteristics
Dimensions	14.17(w) x 11.81(d) x 17.4(h) in (36 x 30 x 44.2 cm)	14.17(w) x 11.81(d) x 17.4(h) in (36 x 30 x 44.2 cm)	14.17(w) x 11.81(d) x 17.4(h) in (36 x 30 x 44.2 cm)
Weight	6.83 lb (3.10 kg)	6.94 lb (3.15 kg)	6.94 lb (3.15 kg)
Memory and processor
	RISC @ 667 MHz, 1 GB DDR3 SDRAM, 256 MB flash	RISC @ 667 MHz, 512 MB DDR3 SDRAM, 256 MB flash	RISC @ 667 MHz, 1 GB DDR3 SDRAM, 256 MB flash
Mounting and enclosure
	Desktop or can be mounted in a EIA standard 19-inch telco rack when used with the rack-mount kit in the package.	Desktop or can be mounted in a EIA standard 19-inch telco rack when used with the rack-mount kit in the package.	Desktop or can be mounted in a EIA standard 19-inch telco rack when used with the rack-mount kit in the package.
Performance
Throughput	Up to 500 Kpps (64-byte packets)	Up to 500 Kpps (64-byte packets)	Up to 500 Kpps (64-byte packets)
Routing table size	200000 entries (IPv4), 200000 entries (IPv6)	30000 entries (IPv4), 30000 entries (IPv6)	200000 entries (IPv4), 200000 entries (IPv6)
Forwarding table size	200000 entries (IPv4), 200000 entries (IPv6)	30000 entries (IPv4), 30000 entries (IPv6)	200000 entries (IPv4), 200000 entries (IPv6)
Environment
Operating temperature	32°F to 113°F (0°C to 45°C)	32°F to 113°F (0°C to 45°C)	32°F to 113°F (0°C to 45°C)
Operating relative humidity	5% to 90%, noncondensing	5% to 90%, noncondensing	5% to 90%, noncondensing
Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity	5% to 90%, noncondensing	5% to 90%, noncondensing	5% to 90%, noncondensing
Altitude	up to 16,404 ft (5 km)	up to 16,404 ft (5 km)	up to 16,404 ft (5 km)
Electrical characteristics
Frequency	50/60 Hz	50/60 Hz	50/60 Hz
Maximum heat dissipation	92 BTU/hr (97.06 kJ/hr)	65 BTU/hr (68.58 kJ/hr)	65 BTU/hr (68.58 kJ/hr)
AC voltage	100 - 240 VAC, rated (depending on power supply chosen)	100 - 240 VAC, rated (depending on power supply chosen)	100 - 240 VAC, rated (depending on power supply chosen)
Maximum power rating	30 W	30 W	30 W
Notes	*Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Reliability
Availability	137.5	137.5	137.5
