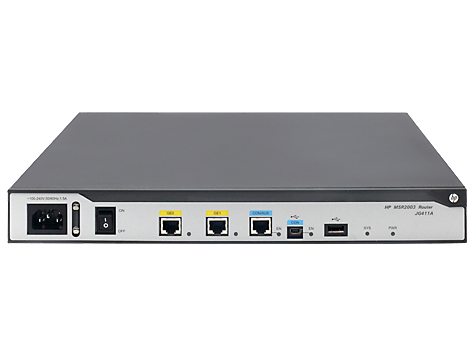

HP MSR2000 Router Series
Modular Ethernet Router

Features & Benefits:

Enhanced Time to Service and Branch Performance

• The HP MSR2000 Router Series offers high performance routing with up to 1 Mpps forwarding and 400 Mbps of IPSec encryption throughput to meet bandwidth-intensive applications demands for small to medium branch offices.
• Powerful security capacity and high port density to satisfy small to medium branches with embedded hardware encryption.
• Comprehensive feature set enables branch services that support your needs.
• Integrated security eases the transition to the cloud.

Reduces Complexity and Simplifies Your Network

• The HP MSR2000 Router Series simplifies your network through integrated routing, switching, security, voice, and 3G and 4G WAN.
• Reduces your TCO through open standards, power and space savings, and energy-efficient hardware.
• Single pane of glass management with HP Intelligent Management Center makes administration easier.
• Zero-touch deployment and Dynamic VPN reduces management complexity.
• No additional licensing complexity or cost for advanced features.

Increased Flexibility and Agility Across Your Network

• The HP MSR2000 Router Series is built on a modular platform with a wide range of connectivity options that enables the right design for your needs.
• Based on open standards for ease of network integration.

Strengthen Branch Resiliency and Survivability

• The HP MSR2000 Router Series with 4GE LTE and 3G WAN access support enables service survivability.
• Advanced hardware architecture with multi-core processors ensures reliable, high performance functionality.

Specifications:

	HP MSR2003 AC Router (JG411A)	HP MSR2004-24 AC Router (JG734A)	HP MSR2004-48 Router (JG735A)
I/O ports and slots
	3 SIC slots, or 1 DSIC slot, and 1 SIC slot 2 RJ-45 1000BASE-T ports (IEEE 802.3ab Type 1000BASE-T)	4 SIC slots 3 RJ-45 1000BASE-T ports (IEEE 802.3ab Type 1000BASE-T) 1 SFP fixed Gigabit Ethernet SFP port 24 RJ-45 autosensing 10/100/1000 LAN ports	4 SIC slots 3 RJ-45 1000BASE-T ports (IEEE 802.3ab Type 1000BASE-T) 48 RJ-45 autosensing 10/100/1000 LAN ports
AP characteristics
Radios (via optional modules)	3G, 4G LTE	3G, 4G LTE	3G, 4G LTE
Physical characteristics
Dimensions	14.17(w) x 11.81(d) x 1.74(h) in (36 x 30 x 4.42 cm) (1U height)	17.32(w) x 14.17(d) x 1.74(h) in (43.99 x 35.99 x 4.42 cm) (1U height)	17.32(w) x 15.75(d) x 1.74(h) in (43.99 x 40.01 x 4.42 cm) (1U height)
Weight	7.61 lb (3.45 kg)	15.1 lb (6.85 kg)	17.2 lb (7.8 kg)
Memory and processor
	RISC @ 800 MHz, 1 GB DDR3 SDRAM, 256 MB flash	RISC @ 800 MHz, 1 GB DDR3 SDRAM, 256 MB flash	RISC @ 800 MHz, 1 GB DDR3 SDRAM, 256 MB flash
Mounting and enclosure
	Desktop or can be mounted in a EIA standard 19-inch telco rack when used with the rack-mount kit in the package.	Desktop or can be mounted in a EIA standard 19-inch telco rack when used with the rack-mount kit in the package.	Desktop or can be mounted in a EIA standard 19-inch telco rack when used with the rack-mount kit in the package.
Performance
Throughput	1 Mpps (64-byte packets)	500 Kpps (64-byte packets)	500 Kpps (64-byte packets)
Routing table size	200000 entries (IPv4), 200000 entries (IPv6)	200000 entries (IPv4), 200000 entries (IPv6)	200000 entries (IPv4), 200000 entries (IPv6)
Forwarding table size	200000 entries (IPv4), 200000 entries (IPv6)	200000 entries (IPv4), 200000 entries (IPv6)	200000 entries (IPv4), 200000 entries (IPv6)
Environment
Operating temperature	32°F to 113°F (0°C to 45°C)	32°F to 113°F (0°C to 45°C)	32°F to 113°F (0°C to 45°C)
Operating relative humidity	5% to 90%, noncondensing	5% to 90%, noncondensing	5% to 90%, noncondensing
Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity	5% to 90%, noncondensing	5% to 90%, noncondensing	5% to 90%, noncondensing
Altitude	up to 16,404 ft (5 km)	up to 16,404 ft (5 km)	up to 16,404 ft (5 km)
Electrical characteristics
Frequency	50/60 Hz	50/60 Hz	50/60 Hz
Maximum heat dissipation	78 BTU/hr (82.29 kJ/hr)	170 BTU/hr (179.35 kJ/hr)	499 BTU/hr (526.44 kJ/hr)
AC voltage	100–240 VAC	100–240 VAC	100–240 VAC
DC voltage			-48 to -60 VDC
Maximum power rating	54 W	54 W	150 W
Notes	*Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Reliability
MTBF (years)	92.73	92.2	96.2

*For more information on MSR2000 Series products, Download the HP MSR2000 Router Series Datasheet. (Click Here)
