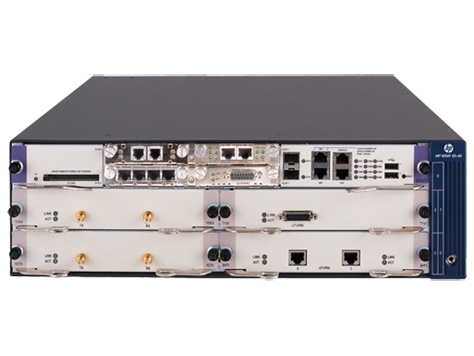

HP MSR50 Series
Modular Ethernet Router

Features & Benefits:

Quality of Service (QoS)

• Traffic policing: supports Committed Access Rate (CAR) and line rate
• Congestion management: supports FIFO, PQ, CQ, WFQ, CBQ, and RTPQ
• Weighted random early detection (WRED)/random early detection (RED): delivers congestion avoidance capabilities through the use of queue management algorithms
• Other QoS technologies: support traffic shaping, FR QoS, MPLS QoS, and MP QoS/LFI

Management

• Management interface control: provides management access through modem port and terminal interface; provides access through terminal interface, telnet, or SSH
• Industry-standard CLI with a hierarchical structure: reduces training time and expenses, and increases productivity in multivendor installations
• Management security: restricts access to critical configuration commands; offers multiple privilege levels with password protection; ACLs provide telnet and SNMP access; local and remote syslog capabilities allow logging of all access
• SNMPv1, v2, and v3: provides complete support of SNMP; provide full support of industry-standard Management Information Base (MIB) plus private extensions; SNMPv3 supports increased security using encryption
• Remote monitoring (RMON): uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group

Connectivity

• High-density port connectivity: provides up to 10 interface module slots and up to 90 Fast Ethernet ports
• Multiple WAN and LAN interfaces: provide a traditional link with E3, T3, E1, T1, ADSL, ADSL2, ADSL2+, G.SHDSL, OC-3, POS, ATM, and ISDN/AM backup; deliver high-density Ethernet access with WAN Fast Ethernet/Gigabit Ethernet, LAN Fast Ethernet, and PoE; offer mobility access with IEEE 802.11b/g/n Wi-Fi and 3G
• 3G access support: provides 3G wireless access for primary or backup connectivity via a 3G SIC module certified on various cellular networks; optional carrier 3G USB modems are available
• Ideal IP telephony solutions: support FXO, FXS, T1, E1, and BRI in various densities; provide Web browser-based administration, Smart Dial Routing, FXS and FXO 1:1 binding for all ports, Power to Escape to PSTN when IP failures occur, and Enhanced Local MSR Survivability
• Flexible port selection: provides a combination of fiber and copper interface modules, 100/1000BASE-X auto-speed selection, and 10/100/1000BASE-T auto-speed detection plus auto duplex and MDI/MDI-X

Performance

• Excellent forwarding performance: provides forwarding performance up to 800 Kpps/1280 Kpps (for two kinds of engines); meets current and future bandwidth-intensive application demands of enterprise businesses
• Powerful encryption capacity: includes embedded hardware encryption accelerator to improve encryption performance
• Flexible chassis selection: offers a choice of four or six FIC slot routers, meeting different requirements on enterprise branches

Specifications:

	HP MSR50-40 Router (JD433A)	HP MSR50-60 Router (JF231A)
I/O ports and slots
	4 FIC slots	6 FIC slots
Physical characteristics
Dimensions	17.17(w) x 16.69(d) x 5.16(h) in (43.6 x 42.4 x 13.1 cm) (3U height)	17.17(w) x 16.69(d) x 6.89(h) in (43.6 x 42.4 x 17.5 cm) (4U height)
Weight	39.68 lb (18 kg)	44.09 lb (20 kg)
Memory and processor
	RISC @ 1700 MHz, 1 GB DDR SDRAM, 256 MB compact flash RISC @ 833 MHz, 512 MB DDR SDRAM, 256 MB compact flash	RISC @ 1700 MHz, 1 GB DDR SDRAM, 256 MB compact flash RISC @ 833 MHz, 512 MB DDR SDRAM, 256 MB compact flash
Mounting and enclosure
	Mounts in an EIA-standard 19 in. telco rack	Mounts in an EIA-standard 19 in. telco rack
Performance
Throughput	up to 1280 Kpps (64-byte packets)	up to 1280 Kpps (64-byte packets)
Routing/Switching capacity	3 Gbps	3 Gbps
Routing table size	100000 entries (IPv4), 100000 entries (IPv6)	100000 entries (IPv4), 100000 entries (IPv6)
Environment
Operating temperature	32°F to 104°F (0°C to 40°C)	32°F to 104°F (0°C to 40°C)
Operating relative humidity	5% to 90%, noncondensing	5% to 90%, noncondensing
Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity	5% to 90%, noncondensing	5% to 90%, noncondensing
Electrical characteristics
Frequency	50/60 Hz	50/60 Hz
Maximum heat dissipation	1194 BTU/hr (1259.67 kJ/hr)	1194 BTU/hr (1259.67 kJ/hr)
AC voltage	100 - 240 VAC	100 - 240 VAC
Maximum power rating	350 W	350 W
PoE power	500 W	500 W
Notes	*Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. **PoE power is the power supplied by the internal power supply. It is dependent on the type and quantity of power supplies and may be supplemented with the use of an external power supply (EPS).

*For more information on MSR50 Series products, Download the HP MSR50 Series Datasheet. (Click Here)
