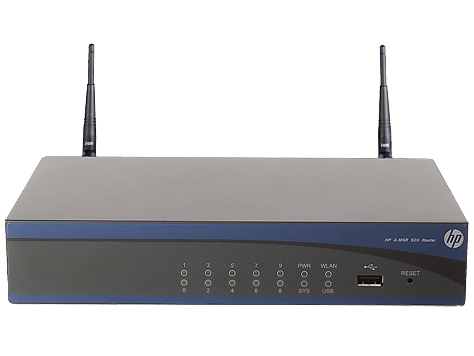

HP MSR900 Series
Fixed Port Ethernet Router

Features & Benefits:

Quality of Service (QoS)

• Traffic policing — Supports Committed Access Rate (CAR) and line rate
• Congestion management — Supports FIFO, PQ, CQ, WFQ, CBQ, and RTPQ
• Weighted random early detection (WRED)/random early detection (RED) — Delivers congestion avoidance capabilities using queue management algorithms
• Other QoS technologies — Support traffic shaping, FR QoS, and MP QoS/LFI

Management

• Industry-standard CLI with a hierarchical structure — Reduces training time and expenses, and increases productivity in multivendor installations
• Management security — Restricts access to critical configuration commands; offers multiple privilege levels with password protection; ACLs provide Telnet and SNMP access; local and remote syslog capabilities allow logging of all access
• SNMPv1, v2, and v3 — Provide complete support of SNMP; provide full support of industry-standard management information base (MIB) plus private extensions; SNMPv3 supports increased security using encryption
• Remote monitoring (RMON) — Uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group
• FTP, TFTP, and SFTP support — Offer different mechanisms for configuration updates; FTP allows bidirectional transfers over a TCP/IP network; trivial FTP (TFTP) is a simpler method using User Datagram Protocol (UDP); Secure File Transfer Protocol (SFTP) runs over an SSH tunnel to provide additional security
• Debug and sampler utility — Supports ping and traceroute for both IPv4 and IPv6
• Network Time Protocol (NTP) — Synchronizes timekeeping among distributed time servers and clients; keeps timekeeping consistent among all clock-dependent devices within the network so that the devices can provide diverse applications based on the consistent time
• Information center — Provides a central repository for system and network information; aggregates all logs, traps, and debugging information generated by the system and maintains them in order of severity; outputs the network information to multiple channels based on user-defined rules
• Network Quality Analyzer (NQA) — analyzes network performance and service quality by sending test packets, and provides network performance and service quality parameters such as jitter, TCP, or FTP connection delays; allows network manager to determine overall network performance and diagnose and locate network congestion points or failures

Connectivity

• Packet storm protection — Protects against broadcast, multicast, or unicast storms with user-defined thresholds
• Loopback — Supports internal loopback testing for maintenance purposes and an increase in availability; loopback detection protects against incorrect cabling or network configurations and can be enabled on a per-port basis for added flexibility
• 3G access support — provides support for popular USB 3G modems; for a list of specific modems, please refer to your local product manager

Performance

• Excellent forwarding performance — provides forwarding performance up to 100 Kpps; meets current and future bandwidth-intensive application demands for enterprise businesses
• Embedded encryption — Supports up to 100 VPN tunnels and up to 8 Mbps encryption throughput

Resiliency and high availability

• Backup center — acts as a part of the management and backup function to provide backup for device interfaces; delivers reliability by switching traffic over to a backup interface when the primary one fails
• Virtual Router Redundancy Protocol (VRRP) — allows groups of two routers to dynamically back each other up to create highly available routed environments; supports VRRP load balancing

Layer 2 switching

• Spanning Tree Protocol (STP) — supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) protocol snooping — Control and manage the flooding of multicast packets in a Layer 2 network
• Port mirroring — Duplicates port traffic (ingress and egress) to a local or remote monitoring port
• Port isolation — Increases security by isolating ports within a VLAN while still allowing them to communicate with other VLANs
• VLANs — Supports IEEE 802.1Q-based VLANs
• sFlow® — Allows traffic sampling

Layer 3 services

• Address Resolution Protocol (ARP) — determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
• Dynamic Host Configuration Protocol (DHCP) — Simplifies the management of large IP networks and supports client and server; DHCP Relay enables DHCP operation across subnets

Layer 3 routing

• Static IPv4 routing — provides simple, manually configured IPv4 routing
• Routing Information Protocol (RIP) — uses a distance vector algorithm with UDP packets for route determination; supports RIPv1 and RIPv2 routing; includes loop protection
• Open shortest path first (OSPF) — delivers faster convergence; uses this link-state routing Interior Gateway Protocol (IGP), which supports ECMP, NSSA, and MD5 authentication for increased security and graceful restart for faster failure recovery
• Border Gateway Protocol 4 (BGP-4) — delivers an implementation of the Exterior Gateway Protocol (EGP) utilizing path vectors; uses TCP for enhanced reliability for the route discovery process; reduces bandwidth consumption by advertising only incremental updates, and supports extensive policies for increased flexibility, as well as scales to very large networks
• Intermediate system to intermediate system (IS-IS) — uses a path vector Interior Gateway Protocol (IGP), which is defined by the ISO organization for IS-IS routing and extended by IETF RFC 1195 to operate in both TCP/IP and the OSI reference model (Integrated IS-IS)
• Static IPv6 routing — provides simple, manually configured IPv6 routing
• Dual IP stack — maintains separate stacks for IPv4 and IPv6 to ease the transition from an IPv4-only network to an IPv6-only network design
• Routing Information Protocol next generation (RIPng) — extends RIPv2 to support IPv6 addressing
• OSPFv3 — provides OSPF support for IPv6
• BGP+ — extends BGP-4 to support Multiprotocol BGP (MBGP), including support for IPv6 addressing
• IS-IS for IPv6 — extends IS-IS to support IPv6 addressing
• IPv6 tunneling — is an important element for the transition from IPv4 to IPv6; allows IPv6 packets to traverse IPv4-only networks by encapsulating the IPv6 packet into a standard IPv4 packet; supports manually configured, 6to4, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnels
• Policy routing — allows custom filters for increased performance and security; supports ACLs, IP prefix, AS paths, community lists, and aggregate policies

Security

• Access control list (ACL) — Supports powerful ACLs for both IPv4 and IPv6; ACLs are used for filtering traffic to prevent unauthorized users from accessing the network, or for controlling network traffic to save resources; rules can either deny or permit traffic to be forwarded; rules can be based on a Layer 2 header or a Layer 3 protocol header; rules can be set to operate on specific dates or times
• Terminal Access Controller Access-Control System (TACACS+) — Delivers an authentication tool using TCP with encryption of the full authentication request, providing additional security
• Network login — standard IEEE 802.1x allows authentication of multiple users per port
• RADIUS — eases security access administration by using a password authentication server
• Network address translation (NAT) — supports one-to-one NAT, many-to-many NAT, and NAT control, enabling NAT-PT to support multiple connections; supports blacklist in NAT/NAT-PT, a limit on the number of connections, session logs, and multi-instances
• Secure Shell (SSHv2) — uses external servers to securely login into a remote device or securely login into MSR from a remote location; with authentication and encryption, it protects against IP spoofing and plain text password interception; increases the security of SFTP transfers
• Unicast Reverse Path Forwarding (URPF) — allows normal packets to be forwarded correctly, but discards the attaching packet due to lack of reverse path route or incorrect inbound interface; prevents source spoofing and distributed attacks
• IPSec VPN — supports DES, 3DES, and AES 128/192/256 encryption, and MD5 and SHA-1 authentication
• Dynamic Virtual Private Network (DVPN) — collects, maintains, and distributes dynamic public addresses through the VPN Address Management (VAM) protocol, making VPN establishment available between enterprise branches that use dynamic addresses to access the public network; compared to traditional VPN technologies, DVPN technology is more flexible and has richer features, such as NAT traversal of DVPN packets, AAA identity authentication, IPSec protection of data packets, and multiple VPN domains

Convergence

• Internet Group Management Protocol (IGMP) — Utilizes Any-Source Multicast (ASM) or Source-Specific Multicast (SSM) to manage IPv4 multicast networks; supports IGMPv1, v2, and v3
• Protocol Independent Multicast (PIM) — Defines modes of Internet IPv4 and IPv6 multicasting to allow one-to-many and many-to-many transmission of information; supports PIM Dense Mode (DM), Sparse Mode (SM), and Source-Specific Mode (SSM)
• Multicast Source Discovery Protocol (MSDP) — Allows multiple PIM-SM domains to interoperate; is used for inter-domain multicast applications
• Multicast Border Gateway Protocol (MBGP) — Allows multicast traffic to be forwarded across BGP networks and kept separate from unicast traffic

Integration

• Embedded NetStream — Improves traffic distribution using powerful scheduling algorithms, including Layer 4 to 7 services; monitors the health status of servers and firewalls
• Embedded VPN firewall — provides enhanced stateful packet inspection and filtering; provides advanced VPN services with Triple DES (3DES) and Advanced Encryption Standard (AES) encryption at high performance and low latency, Web content filtering, and application prioritization and enhancement

Additional Information

• Green initiative support — Provides support for RoHS and WEEE regulations
• OPEX savings — realized through the use of a common operating system, which simplifies and streamlines deployment, management, and training, thereby cutting costs as well as reducing the risk of human errors associated with having to manage multiple operating systems across different platforms and network layers
• Faster time to market — engineering efficiencies allow new and custom features to be brought rapidly to the market with better initial and ongoing stability

Warranty and support

• 1-year Warranty — with advance replacement and next-business-day delivery (available in most countries)
• Electronic and telephone support — limited electronic and telephone support is available from HP; to reach our support centers, refer to www.hp.com/networking/contact-support; for details on the duration of support provided with your product purchase, refer to www.hp.com/networking/warrantysummary
• Software releases — To find software for your product, refer to hp.com/networking/support; for details on the software releases available with your product purchase, refer to hp.com/networking/warrantysummary

Specifications:

	HP MSR900 Router (JF812A)	HP MSR920 Router (JF813A)	HP MSR900-W Router (JF814A)
Ports
	2 RJ-45 autosensing 10/100 WAN ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full 4 RJ-45 autosensing 10/100 LAN ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full	2 RJ-45 autosensing 10/100 WAN ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full 8 RJ-45 autosensing 10/100 LAN ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full	2 RJ-45 autosensing 10/100 WAN ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full 4 RJ-45 autosensing 10/100 LAN ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full
AP Characteristics
Radios			Single (b/g)
Radio Operation Modes			Radio operation modes Client access
AP Operation Modes			AP operation modes Autonomous
Wi-Fi Alliance Certification			Wi-Fi Alliance Certification b/g Wi-Fi Certified
Physical characteristics
Dimensions	9.06(w) x 6.3(d) x 1.74(h) in (23 x 16 x 4.42 cm)	9.06(w) x 6.3(d) x 1.74(h) in (23 x 16 x 4.42 cm)	9.06(w) x 6.3(d) x 1.74(h) in (23 x 16 x 4.42 cm)
Weight	3.97 lb (1.8 kg)	3.97 lb (1.8 kg)	3.97 lb (1.8 kg)
Memory and processor
Processor	RISC @ 266 MHz, 256 MB DDR SDRAM, 256 MB flash	RISC @ 333 MHz, 256 MB DDR SDRAM, 256 MB flash	RISC @ 266 MHz, 256 MB DDR SDRAM, 256 MB flash
Performance
Throughput	up to 70 Kpps (64-byte packets)	up to 100 Kpps (64-byte packets)	up to 70 Kpps (64-byte packets)
Routing table size	10000 entries (IPv4), 5000 entries (IPv6)	10000 entries (IPv4), 5000 entries (IPv6)	10000 entries (IPv4), 5000 entries (IPv6)
Environment
Operating temperature	32°F to 113°F (0°C to 45°C)	32°F to 113°F (0°C to 45°C)	32°F to 113°F (0°C to 45°C)
Operating relative humidity	5% to 90%	5% to 90%	5% to 90%
Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity	5% to 90%	5% to 90%	5% to 90%
Electrical characteristics
Maximum heat dissipation	20 BTU/hr (21.1 kJ/hr)	29 BTU/hr (30.6 kJ/hr)	20 BTU/hr (21.1 kJ/hr)
Voltage	100-240 VAC	100-240 VAC	100-240 VAC
Maximum power rating	15 W	15 W	15 W
Notes	*Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety
	UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J	UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J	UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J
Emissions
	ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B	ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B	ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B
Telecom
	FCC part 68	FCC part 68	FCC part 68
Management
	IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB	IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB	IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB
Services
	3-year, parts only, global next-day advance exchange (UY865E) 3-year, 4-hour onsite, 13x5 coverage for hardware (UY866E) 3-year, 4-hour onsite, 24x7 coverage for hardware (UY869E) 3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support and SW updates (UY872E) 3-year, 24x7 SW phone support, software updates (UY875E) 4-year, 4-hour onsite, 13x5 coverage for hardware (UY867E) 4-year, 4-hour onsite, 24x7 coverage for hardware (UY870E) 4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UY873E) 4-year, 24x7 SW phone support, software updates (UY876E) 5-year, 4-hour onsite, 13x5 coverage for hardware (UY868E) 5-year, 4-hour onsite, 24x7 coverage for hardware (UY871E) 5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UY874E) 5-year, 24x7 SW phone support, software updates (UY877E) 3 Yr 6 hr Call-to-Repair Onsite (UY878E) 4 Yr 6 hr Call-to-Repair Onsite (UY879E) 5 Yr 6 hr Call-to-Repair Onsite (UY880E) 1-year, 4-hour onsite, 13x5 coverage for hardware (HR648E) 1-year, 4-hour onsite, 24x7 coverage for hardware (HR649E) 1-year, 6 hour Call-To-Repair Onsite for hardware (HR652E) 1-year, 24x7 software phone support, software updates (HR651E) 1-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support and software updates (HR650E) Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.	3-year, parts only, global next-day advance exchange(UY881E) 3-year, 4-hour onsite, 13x5 coverage for hardware (UY882E) 3-year, 4-hour onsite, 24x7 coverage for hardware (UY885E) 3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support and SW updates (UY888E) 3-year, 24x7 SW phone support, software updates (UY891E) 1-year, post-warranty, 4-hour onsite, 13x5 coverage for hardware (HR653E) 1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware (HR654E) 4-year, 4-hour onsite, 13x5 coverage for hardware (UY883E) 4-year, 4-hour onsite, 24x7 coverage for hardware (UY886E) 4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UY889E) 4-year, 24x7 SW phone support, software updates (UY892E) 5-year, 4-hour onsite, 13x5 coverage for hardware (UY884E) 5-year, 4-hour onsite, 24x7 coverage for hardware (UY887E) 5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UY890E) 5-year, 24x7 SW phone support, software updates (UY893E) 3 Yr 6 hr Call-to-Repair Onsite (UY894E) 4 Yr 6 hr Call-to-Repair Onsite (UY895E) 5 Yr 6 hr Call-to-Repair Onsite (UY896E) 1-year, 6 hour Call-To-Repair Onsite for hardware (HR657E) 1-year, 24x7 software phone support, software updates (HR656E) 1-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support and software updates (HR655E) Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.	3-year, parts only, global next-day advance exchange (UY865E) 3-year, 4-hour onsite, 13x5 coverage for hardware (UY866E) 3-year, 4-hour onsite, 24x7 coverage for hardware (UY869E) 3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support and SW updates (UY872E) 3-year, 24x7 SW phone support, software updates (UY875E) 4-year, 4-hour onsite, 13x5 coverage for hardware (UY867E) 4-year, 4-hour onsite, 24x7 coverage for hardware (UY870E) 4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UY873E) 4-year, 24x7 SW phone support, software updates (UY876E) 5-year, 4-hour onsite, 13x5 coverage for hardware (UY868E) 5-year, 4-hour onsite, 24x7 coverage for hardware (UY871E) 5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UY874E) 5-year, 24x7 SW phone support, software updates (UY877E) 3 Yr 6 hr Call-to-Repair Onsite (UY878E) 4 Yr 6 hr Call-to-Repair Onsite (UY879E) 5 Yr 6 hr Call-to-Repair Onsite (UY880E) 1-year, 4-hour onsite, 13x5 coverage for hardware (HR648E) 1-year, 4-hour onsite, 24x7 coverage for hardware (HR649E) 1-year, 6 hour Call-To-Repair Onsite for hardware (HR652E) 1-year, 24x7 software phone support, software updates (HR651E) 1-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support and software updates (HR650E) Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

	HP MSR920-W Router (JF815A)	HP MSR900-W Router (NA) (JG207A)	HP MSR920-W Router (NA) (JG208A)
Ports
	2 RJ-45 autosensing 10/100 WAN ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full 8 RJ-45 autosensing 10/100 LAN ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full	2 RJ-45 autosensing 10/100 WAN ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full 4 RJ-45 autosensing 10/100 LAN ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full	2 RJ-45 autosensing 10/100 WAN ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full 8 RJ-45 autosensing 10/100 LAN ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full
AP Characteristics
Radios	Single (b/g)	Single (b/g)	Single (b/g)
Radio Operation Modes	Client access	Client access	Client access
AP Operations Modes	Autonomous	Autonomous	Autonomous
Wi-Fi Alliance Certification	b/g Wi-Fi Certified	b/g Wi-Fi Certified	b/g Wi-Fi Certified
Physical Characteristics
Dimensions	9.06(w) x 6.3(d) x 1.74(h) in (23 x 16 x 4.42 cm)	9.06(w) x 6.3(d) x 1.74(h) in (23.01 x 16 x 4.42 cm) 9	9.06(w) x 6.3(d) x 1.74(h) in (23.01 x 16 x 4.42 cm) 9
Weight	3.97 lb (1.8 kg)	3.97 lb (1.8 kg)	3.97 lb (1.8 kg)
Memory and processor
Processor	RISC @ 333 MHz, 256 MB DDR SDRAM, 256 MB flash	RISC @ 266 MHz, 256 MB DDR SDRAM, 256 MB flash	RISC @ 333 MHz, 256 MB DDR SDRAM, 256 MB flash
Performance
Throughput	up to 100 Kpps (64-byte packets)	up to 70 Kpps (64-byte packets)	up to 100 Kpps (64-byte packets)
Routing Table Size	10000 entries (IPv4), 5000 entries (IPv6)	10000 entries (IPv4), 5000 entries (IPv6)	10000 entries (IPv4), 5000 entries (IPv6) /td>
Environment
Operating Temperature	32°F to 113°F (0°C to 45°C)	32°F to 113°F (0°C to 45°C)	32°F to 113°F (0°C to 45°C)
Operating relative humidity	5% to 90%	5% to 90%	5% to 90%
Nonoperating/Storage temperature -	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity	5% to 90%	5% to 90%	5% to 90%
Electrical characteristics
Maximum heat dissipation	29 BTU/hr (30.6 kJ/hr)	20 BTU/hr (21.1 kJ/hr)	29 BTU/hr (30.6 kJ/hr)
Voltage	100-240 VAC	100-240 VAC	100-240 VAC
Maximum power rating	15 W	15 W	15 W
Notes	*Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety
	UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J	UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J	UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J
Emissions
	ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B	ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B	ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B
Telecom
	FCC part 68	FCC part 68	FCC part 68
Management
	IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB	IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB	IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB
Services
	3-year, parts only, global next-day advance exchange (UY881E) 3-year, 4-hour onsite, 13x5 coverage for hardware (UY882E) 3-year, 4-hour onsite, 24x7 coverage for hardware (UY885E) 3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support and SW updates (UY888E) 3-year, 24x7 SW phone support, software updates (UY891E) 1-year, post-warranty, 4-hour onsite, 13x5 coverage for hardware (HR653E) 1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware (HR654E) 4-year, 4-hour onsite, 13x5 coverage for hardware (UY883E) 4-year, 4-hour onsite, 24x7 coverage for hardware (UY886E) 4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UY889E) 4-year, 24x7 SW phone support, software updates (UY892E) 5-year, 4-hour onsite, 13x5 coverage for hardware (UY884E) 5-year, 4-hour onsite, 24x7 coverage for hardware (UY887E) 5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UY890E) 5-year, 24x7 SW phone support, software updates (UY893E) 3 Yr 6 hr Call-to-Repair Onsite (UY894E) 4 Yr 6 hr Call-to-Repair Onsite (UY895E) 5 Yr 6 hr Call-to-Repair Onsite (UY896E) 1-year, 6 hour Call-To-Repair Onsite for hardware (HR657E) 1-year, 24x7 software phone support, software updates (HR656E) 1-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support and software updates (HR655E) Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.	3-year, parts only, global next-day advance exchange (UY865E) 3-year, 4-hour onsite, 13x5 coverage for hardware (UY866E) 3-year, 4-hour onsite, 24x7 coverage for hardware (UY869E) 3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support and SW updates (UY872E) 3-year, 24x7 SW phone support, software updates (UY875E) 4-year, 4-hour onsite, 13x5 coverage for hardware (UY867E) 4-year, 4-hour onsite, 24x7 coverage for hardware (UY870E) 4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UY873E) 4-year, 24x7 SW phone support, software updates (UY876E) 5-year, 4-hour onsite, 13x5 coverage for hardware (UY868E) 5-year, 4-hour onsite, 24x7 coverage for hardware (UY871E) 5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UY874E) 5-year, 24x7 SW phone support, software updates (UY877E) 3 Yr 6 hr Call-to-Repair Onsite (UY878E) 4 Yr 6 hr Call-to-Repair Onsite (UY879E) 5 Yr 6 hr Call-to-Repair Onsite (UY880E) 1-year, 4-hour onsite, 13x5 coverage for hardware (HR648E) 1-year, 4-hour onsite, 24x7 coverage for hardware (HR649E) 1-year, 6 hour Call-To-Repair Onsite for hardware (HR652E) 1-year, 24x7 software phone support, software updates (HR651E) 1-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support and software updates (HR650E) Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.	3-year, parts only, global next-day advance exchange (UY881E) 3-year, 4-hour onsite, 13x5 coverage for hardware (UY882E) 3-year, 4-hour onsite, 24x7 coverage for hardware (UY885E) 3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support and SW updates (UY888E) 3-year, 24x7 SW phone support, software updates (UY891E) 4-year, 4-hour onsite, 13x5 coverage for hardware (UY883E) 4-year, 4-hour onsite, 24x7 coverage for hardware (UY886E) 4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UY889E) 4-year, 24x7 SW phone support, software updates (UY892E) 5-year, 4-hour onsite, 13x5 coverage for hardware (UY884E) 5-year, 4-hour onsite, 24x7 coverage for hardware (UY887E) 5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UY890E) 5-year, 24x7 SW phone support, software updates (UY893E) 3 Yr 6 hr Call-to-Repair Onsite (UY894E) 4 Yr 6 hr Call-to-Repair Onsite (UY895E) 5 Yr 6 hr Call-to-Repair Onsite (UY896E) Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

Documentation:
