HP MSR931 Router Series
Fixed Port Ethernet Router

HP MSR93x Router Series

HP Network Routers
MSR931 Router Series
USA: FREE Ground ShippingHP MSR931 Dual 3G Router
#JG531B
List Price: $1,800.00
Our Price: $1,263.00
USA: FREE Ground ShippingHP MSR931 Router
#JG514A
List Price: $900.00
Our Price: $631.00

More pricing below, click here!

Overview:

The HP MSR93x Router Series is a high-performance, small-branch router that delivers integrated routing, switching, security, SIP, embedded IEEE 802.11b/g/n WLAN connectivity, integrated 4G LTE and 3G, serial port, ADSL2+ (annex A/M, annex B/J, ADSL2+ over POTS, and ADSL2+ over ISDN), and an optional dual 3G WAN—all in a single box.

The MSR93x Router Series solutions deliver up to 300 Kpps forwarding with comprehensive IPv4 and IPv6 routing, MPLS, QoS, firewall, Network Address Translation (NAT), VPN, switching, voice, and wireless capabilities in a compact, fixed form factor. Moreover, this router series is based on open standards for seamless integration within small-branch deployments.

Key Features

  • Converged high-performance routing, switching, security, SIP, and 300 Kpps performance
  • Integrated GbE WAN and LAN, ADSL2+, and optional serial port
  • Integrated 4G LTE and 3G/dual 3G wireless WAN (WWAN) as well as IEEE 802.11b/g/n WLAN
  • Embedded encryption, NAT, DVPN, GDVPN, security features
  • Unified OS, zero-touch solution, and single-pane-of-glass management

Features & Benefits:

Quality of Service (QoS)

  • Traffic policing — Supports Committed Access Rate (CAR) and line rate
  • Congestion management — Supports FIFO, PQ, CQ, WFQ, CBQ, and RTPQ
  • Weighted random early detection (WRED)/random early detection (RED) — Delivers congestion avoidance capabilities using queue management algorithms
  • Other QoS technologies — Support traffic shaping, FR QoS, and MP QoS/LFI

Management

  • Industry-standard CLI with a hierarchical structure — Reduces training time and expenses, and increases productivity in multivendor installations
  • Management security — Restricts access to critical configuration commands; offers multiple privilege levels with password protection; ACLs provide Telnet and SNMP access; local and remote syslog capabilities allow logging of all access
  • SNMPv1, v2, and v3 — Provide complete support of SNMP; provide full support of industry-standard management information base (MIB) plus private extensions; SNMPv3 supports increased security using encryption
  • Remote monitoring (RMON) — Uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group
  • FTP, TFTP, and SFTP support — Offer different mechanisms for configuration updates; FTP allows bidirectional transfers over a TCP/IP network; trivial FTP (TFTP) is a simpler method using User Datagram Protocol (UDP); Secure File Transfer Protocol (SFTP) runs over an SSH tunnel to provide additional security
  • Debug and sampler utility — Supports ping and traceroute for both IPv4 and IPv6
  • Network Time Protocol (NTP) — Synchronizes timekeeping among distributed time servers and clients; keeps timekeeping consistent among all clock-dependent devices within the network so that the devices can provide diverse applications based on the consistent time
  • Information center — Provides a central repository for system and network information; aggregates all logs, traps, and debugging information generated by the system and maintains them in order of severity; outputs the network information to multiple channels based on user-defined rules

Connectivity

  • Packet storm protection — Protects against broadcast, multicast, or unicast storms with user-defined thresholds
  • Loopback — Supports internal loopback testing for maintenance purposes and an increase in availability; loopback detection protects against incorrect cabling or network configurations and can be enabled on a per-port basis for added flexibility
  • Integrated 3G WWAN capability
    • Offers models with built-in 3G and dual 3G WWAN connectivity
    • Supports up to four antennas in dual 3G models for improved connectivity and throughput
    • Comes with a default 3G antenna; additional 3G antennas are also available
  • 3G and 4G LTE access — Support popular 3G and 4G LTE USB modems; for a list of supported products, contact your local HP representative
  • Multiple Gigabit Ethernet connection options — Provide GbE WAN and GbE LAN ports onboard
  • 4G LTE Verizon and global carrier support — Deliver embedded 4G LTE wireless WAN backhaul connectivity with two different carrier chipset options
  • Multiple advanced WAN interfaces — Provide traditional connection options including serial, ADSL2+ (Annex A/M, annex B/J, over POTS, or over ISDN), four-pair, and WAN Gigabit Ethernet ports; and offer wireless access with 4G LTE and 3G connectivity

Performance

  • Forwarding performance — Provides up to 300 Kpps; and meets current and future bandwidth-intensive application demands for enterprise businesses
  • Embedded encryption — Supports up to 100 VPN tunnels and up to 160 Mbps encryption throughput
  • Gigabit Ethernet interface — Provides a connection to the network that eliminates the network as a bottleneck

Resiliency and high availability

  • Backup center — Acts as a part of the management and backup function to provide backup for device interfaces; delivers reliability by switching traffic over to a backup interface when the primary one fails
  • Virtual Router Redundancy Protocol (VRRP) — Allows groups of two routers to back each other up dynamically to create highly available routed environments; and supports VRRP load balancing
  • WWAN with integrated 3G — Allows small-branch users to maintain remote office-data connectivity to the data center or headquarters, using integrated carrier connections

Layer 2 switching

  • Spanning Tree Protocol (STP) — Supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
  • Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) protocol snooping — Control and manage the flooding of multicast packets in a Layer 2 network
  • Port mirroring — Duplicates port traffic (ingress and egress) to a local or remote monitoring port
  • Port isolation — Increases security by isolating ports within a VLAN while still allowing them to communicate with other VLANs
  • VLANs — Supports IEEE 802.1Q-based VLANs
  • sFlow® — Allows traffic sampling

Layer 3 services

  • Address Resolution Protocol (ARP) — Determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
  • Dynamic Host Configuration Protocol (DHCP) — Simplifies the management of large IP networks and supports client and server; DHCP Relay enables DHCP operation across subnets
  • Built-in applications support
    • Device management controller (DMC) — Acts as the gateway of a virtual “network training room”
    • Wisdom Network (WiNet) technology — Helps manage a large number of scattered network devices centrally
    • Remote terminal connection (RTC) and true type terminal (TTY) access — Allows the connection of a terminal to a router through an asynchronous interface for data exchange with a front-end processor (FEP) or another terminal through the router

Layer 3 routing

  • Static IPv4 routing — Provides simple manually configured IPv4 routing
  • Routing Information Protocol (RIP) — Uses a distance vector algorithm with UDP packets for route determination; supports RIPv1 and RIPv2 routing; includes loop protection
  • Open Shortest Path First (OSPF) — Delivers faster convergence; uses this link-state routing Interior Gateway Protocol (IGP), which supports ECMP, NSSA, and MD5 authentication for increased security and graceful restart for faster failure recovery
  • Border Gateway Protocol 4 (BGP-4) — Delivers an implementation of the Exterior Gateway Protocol (EGP) utilizing path vectors; uses TCP for enhanced reliability for the route discovery process; reduces bandwidth consumption by advertising only incremental updates; supports extensive policies for increased flexibility; scales to very large networks
  • Intermediate system to intermediate system (IS-IS) — Uses a path vector Interior Gateway Protocol (IGP), which is defined by the ISO organization for IS-IS routing and extended by IETF RFC 1195 to operate in both TCP/IP and the OSI reference model (Integrated IS-IS)
  • Static IPv6 routing — Provides simple manually configured IPv6 routing
  • Dual IP stack — Maintains separate stacks for IPv4 and IPv6 to ease the transition from an IPv4-only network to an IPv6-only network design
  • Routing Information Protocol next generation (RIPng) — Extends RIPv2 to support IPv6 addressing
  • OSPFv3 — Provides OSPF support for IPv6
  • BGP+ — Extends BGP-4 to support Multiprotocol BGP (MBGP), including support for IPv6 addressing
  • IS-IS for IPv6 — Extends IS-IS to support IPv6 addressing
  • IPv6 tunneling — Allows IPv6 packets to traverse IPv4-only networks by encapsulating the IPv6 packet into a standard IPv4 packet; supports manually configured, 6 to 4, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnels; is an important element for the transition from IPv4 to IPv6
  • Policy routing — Allows custom filters for increased performance and security; supports ACLs, IP prefix, AS paths, community lists, and aggregate policies
  • BGP-4+ support — Utilizes the BGP-4 (RFC 4271) exterior routing protocol for routing integrity and reliability between different autonomous systems

Security

  • Access control list (ACL) — Supports powerful ACLs for both IPv4 and IPv6; ACLs are used for filtering traffic to prevent unauthorized users from accessing the network, or for controlling network traffic to save resources; rules can either deny or permit traffic to be forwarded; rules can be based on a Layer 2 header or a Layer 3 protocol header; rules can be set to operate on specific dates or times
  • Terminal Access Controller Access-Control System (TACACS+) — Delivers an authentication tool using TCP with encryption of the full authentication request, providing additional security
  • Network login — Allows authentication of multiple users per port using the IEEE 802.1X standard
  • Remote Authentication Dial In User Service (RADIUS) login — Eases security access administration by using a password authentication server
  • NAT enablement — Facilitates one-to-one NAT, many-to-many NAT, and NAT control—enabling NAT-PT to support multiple connections; supports blacklisting in the NAT/NAT-PT; and enables a limit on the number of connections, session logs, and multiple instances
  • SSHv2 — Uses external servers to safely log in to a remote device or MSRs from a remote location; protects against IP spoofing and plain text password interception, with authentication and encryption; and increases the security of SFTP transfers
  • Unicast Reverse Path Forwarding (URPF) — Allows normal packets to be forwarded correctly, but discards the attaching packets due to lack of a reverse path route or an incorrect inbound interface; and helps prevent source spoofing and distributed attacks
  • IPSec VPN — Supports DES, 3DES, and AES 128/192/256 encryption as well as MD5 and SHA1 authentication
  • DVPN — Collects, maintains, and distributes dynamic public addresses through the VPN Address Management (VAM) protocol, making the VPN establishment available between enterprise branches that use dynamic addresses to access the public network; compared to traditional VPN technologies, the DVPN technology is more flexible and has richer features, such as NAT traversal of DVPN packets, AAA identity authentication, IPSec protection of data packets, and multiple VPN domains

Convergence

  • Internet Group Management Protocol (IGMP) — Utilizes Any-Source Multicast (ASM) or Source-Specific Multicast (SSM) to manage IPv4 multicast networks; supports IGMPv1, v2, and v3
  • Protocol Independent Multicast (PIM) — Defines modes of Internet IPv4 and IPv6 multicasting to allow one-to-many and many-to-many transmission of information; supports PIM Dense Mode (DM), Sparse Mode (SM), and Source-Specific Mode (SSM)
  • Multicast Source Discovery Protocol (MSDP) — Allows multiple PIM-SM domains to interoperate; is used for inter-domain multicast applications
  • Multicast Border Gateway Protocol (MBGP) — Allows multicast traffic to be forwarded across BGP networks and kept separate from unicast traffic
  • Internet Group Management Protocol (IGMP) snooping and proxy
    • Monitor and observe IGMP network traffic, allowing the network device to listen in on the IGMP conversation between hosts and routers—enabling better IP multicast stream control
    • Allow a multicast router to learn multicast group membership information; and enables it to forward multicast packets
  • Multicast VPN and bidirectional protocol-independent multicasting (PIM)
    • Allow rich multicast services such as video conferencing and data sharing amongst enterprise VPN-based deployments
    • Improve scalability of various applications through the use of bidirectional PIM

Integration

  • Embedded NetStream — Improves traffic distribution using powerful scheduling algorithms, including Layer 4 to 7 services; monitors the health status of servers and firewalls
  • Embedded VPN firewall
    • Provides enhanced stateful packet inspection and filtering
    • Delivers advanced VPN services with Triple DES (3DES) and Advanced Encryption Standard (AES) encryption at high performance and low latency
    • Offers Web content filtering and application prioritization and enhancement

Additional Information

  • Green initiative support — Provides support for RoHS and WEEE regulations
  • OPEX savings — Simplify and streamline deployment, management, and training using a common operating system, thereby cutting costs as well as reducing the risk of human errors associated with having to manage multiple operating systems across different platforms and network layers
  • Faster time to market — Allows new and custom features to be brought rapidly to market through engineering efficiencies, delivering better initial and ongoing stability

Warranty and support

  • 1-year Warranty 2.0 — Advance hardware replacement with next-business-day delivery (available in most countries)
  • Electronic and telephone support (for Warranty 2.0) — Limited electronic and 24x7 telephone support is available from HP for the entire warranty period; to reach our support centers, refer to hp.com/networking/contact-support; for details on the duration of support provided with your product purchase, refer to hp.com/networking/warrantysummary
  • Software releases — To find software for your product, refer to hp.com/networking/support; for details on the software releases available with your product purchase, refer to hp.com/networking/warrantysummary

Specifications:

  HP MSR930 Router (JG511B) HP MSR930 3G Router (JG513B) HP MSR931 Router (JG514A)
HP MSR931 Router (JG514B)
I/O ports and slots
  1 RJ-45 autosensing 10/100/1000 WAN port
4 RJ-45 autosensing 10/100/1000 LAN ports
1 RJ-45 autosensing 10/100/1000 WAN port
4 RJ-45 autosensing 10/100/1000 LAN ports
1 G.SHDSL (8-wire) port
1 RJ-45 autosensing 10/100/1000 WAN port
4 RJ-45 autosensing 10/100/1000 LAN ports
1 G.SHDSL (8-wire) port
AP/Wireless characteristic
Radios (built-in) 3G, 4G LTE   3G
Physical characteristics
Dimensions: 9.06(w) x 6.3(d) x 1.72(h) in. (23 x 16 x 4.36 cm) 11.81(w) x 7.87(d) x 1.74(h) in. (30 x 20 x 4.42 cm) 11.81(w) x 7.87(d) x 1.74(h) in. (30 x 20 x 4.42 cm)
Weight: 3.97 lb (1.8 kg) 3.97 lb (1.8 kg) 3.97 lb (1.8 kg)
Memory and processor
  RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash
Performance
Throughput 300 Kpps (64-byte packets) 300 Kpps (64-byte packets) 300 Kpps (64-byte packets)
Routing table size 10000 entries (IPv4), 5000 entries (IPv6) 10000 entries (IPv4), 5000 entries (IPv6) 10000 entries (IPv4), 5000 entries (IPv6)
Forwarding table size 10000 entries (IPv4), 5000 entries (IPv6) 10000 entries (IPv4), 5000 entries (IPv6) 10000 entries (IPv4), 5000 entries (IPv6)
Environment
Operating temperature 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C)
Operating relative humidity 5% to 90%, noncondensing 5% to 90%, noncondensing 5% to 90%, noncondensing
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity 5% to 90%, noncondensing 5% to 90%, noncondensing 5% to 90%, noncondensing
Shock and vibration Anti-Seismic ETS 300 019-2-3
HALT: 0~40Grms
Anti-Seismic ETS 300 019-2-3
HALT: 0~40Grms
Anti-Seismic ETS 300 019-2-3
HALT: 0~40Grms
Altitude Up to 6,561 ft (2 km) Up to 6,561 ft (2 km) Up to 6,561 ft (2 km)
Electrical characteristics
Maximum heat dissipation 20 BTU/hr (21.1 kJ/hr) 20 BTU/hr (21.1 kJ/hr) 20 BTU/hr (21.1 kJ/hr)
AC voltage 100–240 Vac 100–240 Vac 100–240 Vac
Maximum power rating 24 W 24 W 24 W
*Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety
UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J
Emissions
ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+A1:2001+A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+A1:2001+A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+A1:2001+A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B
Telecom
  FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5 FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5 FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5
Management
  IMC—Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB IMC—Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB IMC—Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB
Notes
    Supports HSPA+
SIM card not included
Default antennas: 1
Maximum antennas: 2
Optional antenna cable also available for remote location
3G firmware changes through CLI
For regional carrier certifications please contact your local HP sales representative

Services
  Refer to the HP website at hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. Refer to the HP website at hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. Refer to the HP website at hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

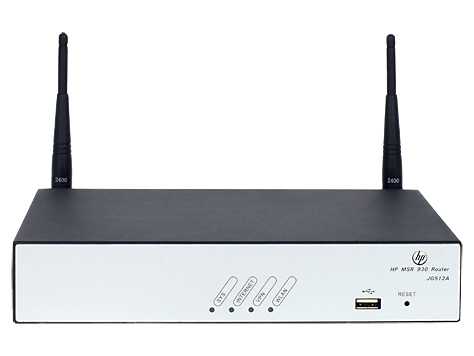

    HP MSR931 Dual 3G Router (JG531B) HP MSR930 Wireless Router (JG512A)
HP MSR930 Wireless 11n (NA) Router (JH012B)
I/O ports and slots
  1 RJ-45 autosensing 10/100/1000 WAN port
4 RJ-45 autosensing 10/100/1000 LAN ports
1 serial port
1 RJ-45 autosensing 10/100/1000 WAN port
4 RJ-45 autosensing 10/100/1000 LAN ports
AP/Wireless characteristic
Radios (built-in)   3G 802.11b/g/n
Physical characteristics
Dimensions   11.81(w) x 7.87(d) x 1.74(h) in. (30 x 20 x 4.42 cm) 9.06(w) x 6.3(d) x 1.72(h) in. (23 x 16 x 4.36 cm)
Weight   5.95 lb (2.7 kg) 2.65 lb (1.2 kg)
Memory and processor
  RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash
Performance
Throughput   300 Kpps (64-byte packets) 300 Kpps (64-byte packets)
Routing table size   10000 entries (IPv4), 5000 entries (IPv6) 10000 entries (IPv4), 5000 entries (IPv6)
Forwarding table size   10000 entries (IPv4), 5000 entries (IPv6) 10000 entries (IPv4), 5000 entries (IPv6)
Environment
Operating temperature   32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C)
Operating relative humidity   5% to 90%, noncondensing 5% to 90%, noncondensing
Nonoperating/Storage temperature   -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity   5% to 90%, noncondensing 5% to 90%, noncondensing
Shock and vibration   Anti-Seismic ETS 300 019-2-3
HALT: 0~40Grms
Anti-Seismic ETS 300 019-2-3
HALT: 0~40Grms
Altitude   Up to 6,561 ft (2 km) Up to 6,561 ft (2 km)
Electrical characteristics
Maximum heat dissipation   20 BTU/hr (21.1 kJ/hr) 20 BTU/hr (21.1 kJ/hr)
AC voltage   100–240 Vac 100–240 Vac
Maximum power rating   24 W 24 W
*Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety
  UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J UL 60950-1; CAN/CSA 22.2 No. 60950-1; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; AS/NZS 60950-1
Emissions
  ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+A1:2001+A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+A1:2001+A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B
Telecom
  FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5 FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5
Management
  IMC—Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB IMC—Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB
Notes
  Supports HSPA+
SIM card not included
Default antennas: 1
Maximum antennas: 2
Optional antenna cable also available for remote location
3G firmware changes through CLI
For regional carrier certifications please contact your local HP sales representative
Supports 802.11b/g/n
Default antennas: 2
Maximum antennas: 2
Services
  Refer to the HP website at hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. Refer to the HP website at hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.
  HP MSR930 4G LTE/3G CDMA Router (JG596A) HP MSR933 Router (JG516A) HP MSR933 3G Router (JG517A)
I/O ports and slots
1 RJ-45 autosensing 10/100/1000 WAN port
4 RJ-45 autosensing 10/100/1000 LAN ports
1 RJ-45 autosensing 10/100/1000 WAN port
4 RJ-45 autosensing 10/100/1000 LAN ports
1 G.SHDSL (8-wire) port
1 RJ-45 autosensing 10/100/1000 WAN port
4 RJ-45 autosensing 10/100/1000 LAN ports
1 G.SHDSL (8-wire) port
AP/Wireless characteristic
Radios (built-in) 3G, 4G LTE   3G
Physical characteristics
Dimensions 9.06(w) x 6.3(d) x 1.72(h) in. (23 x 16 x 4.36 cm) 11.81(w) x 7.87(d) x 1.74(h) in. (30 x 20 x 4.42 cm) 11.81(w) x 7.87(d) x 1.74(h) in. (30 x 20 x 4.42 cm)
Weight 3.97 lb (1.8 kg) 3.97 lb (1.8 kg) 3.97 lb (1.8 kg)
Memory and processor
RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash
Performance
Throughput Up to 300 Kpps (64-byte packets) Up to 300 Kpps (64-byte packets) Up to 300 Kpps (64-byte packets)
Routing table size 10000 entries (IPv4), 5000 entries (IPv6) 10000 entries (IPv4), 5000 entries (IPv6) 10000 entries (IPv4), 5000 entries (IPv6)
Forwarding table size 10000 entries (IPv4), 5000 entries (IPv6) 10000 entries (IPv4), 5000 entries (IPv6) 10000 entries (IPv4), 5000 entries (IPv6)
Environment
Operating temperature 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C)
Operating relative humidity 5% to 90%, noncondensing 5% to 90%, noncondensing 5% to 90%, noncondensing
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity 5% to 90%, noncondensing 5% to 90%, noncondensing 5% to 90%, noncondensing
Shock and vibration Anti-Seismic ETS 300 019-2-3
HALT: 0~40Grms
Anti-Seismic ETS 300 019-2-3
HALT: 0~40Grms
Anti-Seismic ETS 300 019-2-3
HALT: 0~40Grms
Altitude Up to 6,561 ft (2 km) Up to 6,561 ft (2 km) Up to 6,561 ft (2 km)
Electrical characteristics
Maximum heat dissipation 20 BTU/hr (21.1 kJ/hr) 20 BTU/hr (21.1 kJ/hr) 20 BTU/hr (21.1 kJ/hr)
AC voltage 100–240 Vac 100–240 Vac 100–240 Vac
Maximum power rating 24 W 24 W 24 W
*Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety
UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J
Emissions
ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+A1:2001+A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+A1:2001+A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+A1:2001+A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B
Telecom
FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5 FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5 FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5
Management
IMC—Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB IMC—Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB IMC—Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB
Notes
For local 4G LTE/3G carrier certification, please contact your regional sales team.
This router has the Sierra Wireless MC7750 AirPrime Series
  • Module embedded with support the following specs: Air Interface: LTE/EV-DO LTE Freq. Bands: 700 (B13) MHz CDMA 1xRTT/EV-DO RevA: 800/1900MHz
  • This model (JG665A) is certified with Verizon Wireless 4GLTE networks
  • Carrier SIM card not included
  • Default Antennas: 2
  • Maximum Antennas: 2
  • Optional antenna cable extensions available HP MSR 3G RF 2.8m Antenna Cable (JG522A) HP MSR 3G RF 6m Antenna Cable (JG666A) HP MSR 3G RF 15m Antenna Cable (JG667A)
  • Only 4G Antenna (JG669A HP MSR 4G 5W TNC Antenna) is supported
  Supports HSPA+SIM card included
Default antennas: 1
Maximum antennas: 2
Optional antenna cable also available for remote location
3G firmware changes through CLI
For regional carrier certifications please contact your local HP sales representative
Services
Refer to the HP website at hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. Refer to the HP website at hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. Refer to the HP website at hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.
  HP MSR935 Router (JG518B) HP MSR935 Wireless Router (JG519A)
HP MSR935 Wireless 11n (NA) Router (JH013A)
HP MSR935 3G Router (JG520A)
I/O ports and slots
1 RJ-45 autosensing 10/100/1000 WAN port
4 RJ-45 autosensing 10/100/1000 LAN ports
1 ADSL2+ Annex A/M port
1 RJ-45 autosensing 10/100/1000 WAN port
4 RJ-45 autosensing 10/100/1000 LAN ports
1 ADSL2+ Annex A/M port
1 RJ-45 autosensing 10/100/1000 WAN port
4 RJ-45 autosensing 10/100/1000 LAN ports
1 ADSL2+ Annex A/M port
AP/Wireless characteristic
Radios (built-in)   802.11b/g/n 3G
Physical characteristics
Dimensions 11.81(w) x 7.87(d) x 1.74(h) in. (30 x 20 x 4.42 cm) 11.81(w) x 7.87(d) x 1.74(h) in. (30 x 20 x 4.42 cm) 11.81(w) x 7.87(d) x 1.74(h) in. (30 x 20 x 4.42 cm)
Weight 3.97 lb (1.8 kg) 3.97 lb (1.8 kg) 3.97 lb (1.8 kg)
Memory and processor
  RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash
Performance
Throughput Up to 300 Kpps (64-byte packets) Up to 300 Kpps (64-byte packets) Up to 300 Kpps (64-byte packets)
Routing table size 10000 entries (IPv4), 5000 entries (IPv6) 10000 entries (IPv4), 5000 entries (IPv6) 10000 entries (IPv4), 5000 entries (IPv6)
Forwarding table size 10000 entries (IPv4), 5000 entries (IPv6) 10000 entries (IPv4), 5000 entries (IPv6) 10000 entries (IPv4), 5000 entries (IPv6)
Environment
Operating temperature 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C)
Operating relative humidity 5% to 90%, noncondensing 5% to 90%, noncondensing 5% to 90%, noncondensing
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity 5% to 90%, noncondensing 5% to 90%, noncondensing 5% to 90%, noncondensing
Shock and vibration Anti-Seismic ETS 300 019-2-3
HALT: 0~40Grms
Anti-Seismic ETS 300 019-2-3
HALT: 0~40Grms
Anti-Seismic ETS 300 019-2-3
HALT: 0~40Grms
Altitude Up to 6,561 ft (2 km) Up to 6,561 ft (2 km) Up to 6,561 ft (2 km)
Electrical characteristics
Maximum heat dissipation 20 BTU/hr (21.1 kJ/hr) 20 BTU/hr (21.1 kJ/hr) 20 BTU/hr (21.1 kJ/hr)
AC voltage 100–240 Vac 100–240 Vac 100–240 Vac
Maximum power rating 24 W 24 W 24 W
*Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety
  UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J
Emissions
ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+A1:2001+A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+A1:2001+A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+A1:2001+A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B
Telecom
FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5 FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5 FCC part 68; TIA-968-B; CS03 Part 8; AS/ACIF S043; G.992.1/2/3/5
Management
IMC—Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB IMC—Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB IMC—Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB
Notes
Supports ADSL2+ Annex A/M Supports 802.11b/g/n
Default antennas: 2
Maximum antennas: 2
Supports HSPA+
SIM card included
Default antennas: 1
Maximum antennas: 2
Optional antenna cable also available for remote location
3G firmware changes through CLI
For regional carrier certifications please contact your local HP sales representative
Services
Refer to the HP website at hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. Refer to the HP website at hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. Refer to the HP website at hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.
  HP MSR936 Wireless Router (JG597A) HP MSR930 4G LTE/3G WCDMA Global Router (JG665A) HP MSR930 4G LTE/3G WCDMA ATT Router (JG704A)
I/O ports and slots
1 RJ-45 autosensing 10/100/1000 WAN port
4 RJ-45 autosensing 10/100/1000 LAN ports
1 ADSL2+ Annex B/J ISDN backup port
1 RJ-45 autosensing 10/100/1000 WAN port
4 RJ-45 autosensing 10/100/1000 LAN ports
1 RJ-45 autosensing 10/100/1000 WAN port
4 RJ-45 autosensing 10/100/1000 LAN ports
AP/Wireless characteristic
Radios (built-in) 802.11b/g/n 3G, 4G LTE 3G, 4G LTE
Physical characteristics
Dimensions 11.81(w) x 7.87(d) x 1.74(h) in. (30 x 20 x 4.42 cm) 9.06(w) x 6.3(d) x 1.72(h) in. (23 x 16 x 4.36 cm) 9.06(w) x 6.3(d) x 1.72(h) in. (23 x 16 x 4.36 cm)
Weight 3.97 lb (1.8 kg) 3.97 lb (1.8 kg) 3.97 lb (1.8 kg)
Memory and processor
RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash RISC @ 533 MHz, 256 MB DDR3 SDRAM, 128 MB NAND flash
Performance
Throughput Up to 300 Kpps (64-byte packets) Up to 300 Kpps (64-byte packets) Up to 300 Kpps (64-byte packets)
Routing table size 10000 entries (IPv4), 5000 entries (IPv6) 10000 entries (IPv4), 5000 entries (IPv6) 10000 entries (IPv4), 5000 entries (IPv6)
Forwarding table size 10000 entries (IPv4), 5000 entries (IPv6) 10000 entries (IPv4), 5000 entries (IPv6) 10000 entries (IPv4), 5000 entries (IPv6)
Environment
Operating temperature 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C)
Operating relative humidity 5% to 90%, noncondensing 5% to 90%, noncondensing 5% to 90%, noncondensing
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity 5% to 90%, noncondensing 5% to 90%, noncondensing 5% to 90%, noncondensing
Shock and vibration Anti-Seismic ETS 300 019-2-3
HALT: 0~40Grms
Anti-Seismic ETS 300 019-2-3
HALT: 0~40Grms
Anti-Seismic ETS 300 019-2-3
HALT: 0~40Grms
Altitude Up to 6,561 ft (2 km) Up to 6,561 ft (2 km) Up to 6,561 ft (2 km)
Electrical characteristics
Maximum heat dissipation 20 BTU/hr (21.1 kJ/hr) 20 BTU/hr (21.1 kJ/hr) 20 BTU/hr (21.1 kJ/hr)
AC voltage 100–240 Vac 100–240 Vac 100–240 Vac
Maximum power rating 24 W 24 W 24 W
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety
UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J
Emissions
ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+A1:2001+A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+A1:2001+A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995+A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+A1:2001+A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B
Telecom
IMC—Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB IMC—Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB IMC—Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB
Notes
Supports 802.11b/g/n
Default antennas: 2
Maximum antennas: 2
For local 4GLTE/3G carrier certification, please contact your regional sales team.
This router has the Sierra Wireless MC7710 AirPrime Series Wireless Module
  • Module embedded with support the following specs: Air Interface: LTE/HSPA+LTE Freq. Bands: 800/900/1800/2100/2600 MHz WCDMA: 900/2100 MHz GSM/GPRS/EDGE: 900/1800/1900 MHz
  • This model (JG665A) is pre-certified with T-Mobile (EU) and conforms to above specifications for local certifications
  • Carrier SIM card not included
  • Default Antennas: 2
  • Maximum Antennas: 2
  • Optional antenna cable extensions available HP MSR 3G RF 2.8m Antenna Cable (JG522A) HP MSR 3G RF 6m Antenna Cable (JG666A) HP MSR 3G RF 15m Antenna Cable (JG667A)
  • Only 4G Antenna (JG669A HP MSR 4G 5W TNC Antenna) is supported.
For local 4GLTE/3G carrier certification, please contact your regional sales team.
This router has the Sierra Wireless AT&T, NTT Docomo MC7700 AirPrime Series Wireless Module
  • Module embedded with support the following specs: Air Interface: LTE/ HSPA+LTE Freq. Bands: 700 (B17)/AWS WCDMA: 850/1900/2100 MHz GSM/ GPRS/EDGE: 850/900/1800/1900 MHz Regulatory: TELEC Carriers: AT&T, NTT Docomo
  • This model (JG704A) is pre-certified with AT&T, NTT Docomo and conforms to above specifications for local certifications.
  • Carrier SIM card not included
  • Default Antennas: 2
  • Maximum Antennas: 2
  • Optional antenna cable extensions available HP MSR 3G RF 2.8m Antenna Cable (JG522A) HP MSR 3G RF 6m Antenna Cable (JG666A) HP MSR 3G RF 15m Antenna Cable (JG667A)
  • Only 4G Antenna (JG669A HP MSR 4G 5W TNC Antenna) is supported.
Services
Refer to the HP website at hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. Refer to the HP website at hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. Refer to the HP website at hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

Documentation:

Download the HP MSR93x Router Series Datasheet (PDF).

Pricing Notes:

HP Network Routers
MSR931 Router Series
USA: FREE Ground ShippingHP MSR931 Dual 3G Router
#JG531B
List Price: $1,800.00
Our Price: $1,263.00
USA: FREE Ground ShippingHP MSR931 Router
#JG514A
List Price: $900.00
Our Price: $631.00
