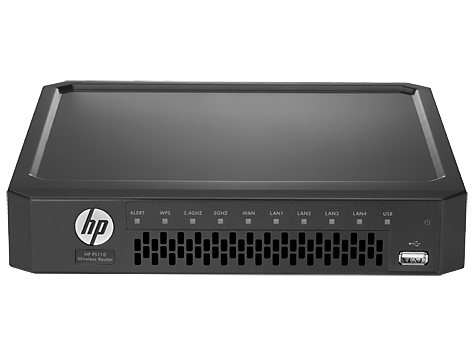

HP PS110 Wireless VPN Router Series
Fixed Port Ethernet Routers

Features & Benefits:

Wireless features

• IEEE 802.11 a/b/g/n compliance - Unit has built-in single radio dual band IEEE 802.11a/b/g/n compliant access point
• MIMO - Unit supports 3x3 MIMO antennas to ensure wider wireless coverage and superior throughput
• Multiple SSIDs - Radio supports up to four SSIDs to help segregate wireless clients and apply granular policies
• WMM (IEEE 802.11e) - Provides Quality of Service (QoS) to wireless clients based on access categories like voice, video, best effort, and background
• WMM-Power Save - WMM-Power Save mode helps reduce power consumption on wireless network
• Wireless distribution system (WDS) - Allows users to expand wireless coverage without the requirement for a wired connection. HP PS110 and/or HP R100 series routers can be linked together via the wireless medium (using SSIDs), while at the same time servicing clients in the vicinity of each router
• Wi-Fi protected setup (WPS v2) - WPS v2 protocol allows customers to easily create secure wireless link between wireless client devices that support WPS v2 and the router
• SSID to VLAN mapping - Allows user to segregate wireless traffic

Security

• SPI - Enforces firewall policies to control traffic and filter access to network services; maintains session information for every connection passing through it, enabling the firewall to control packets based on existing sessions
• URL filtering - Blocks unsafe websites and protects network based on URL information
• Content filtering - Blocks websites and protects network based on keyword match done on the content in the webpage
• Network access control - MAC address and IP address based network access control
• IEEE 802.1x authentication and RADIUS login - Authenticate wireless clients based on 802.1x protocol using RADIUS server
• DoS prevention - Detects and blocks commonly used DoS attacks that can be initiated on the devices. Common attack signatures are stored in the device
• Application level gateway (SIP/H.323) - Discovers the IP address and service port information embedded in the application data using deep packet inspection in the firewall; firewall then dynamically opens appropriate connections for specific applications
• Secure management - MAC/IP based administrator authentication, secure WAN/LAN access to management interface, encrypt management traffic using HTTPS
• HTTPS management - Provides secure Web management
• Management password - Provides security so that only authorized access to the Web browser interface is allowed

Virtual private network (VPN)

• IPsec - Provides secure tunneling over an untrusted network such as the Internet or a wireless network; offers data confidentiality, authenticity, and integrity between two network endpoints
• Layer 2 Tunneling Protocol (L2TP) - An industry standard-based traffic encapsulation mechanism supported by many common OSs; will tunnel the point-to-point Protocol (PPP) traffic over the IP and non-IP networks; may use the IP/UDP transport mechanism in IP networks
• Network Address Translation-Traversal (NAT-T) - Enables IPsec-protected IP datagrams to pass through a network address translator (NAT)
• Point-to-Point Tunneling Protocol - An industry standard-based traffic encapsulation mechanism for VPN tunnels supported by many common OSs; PPTP uses a control channel over TCP and a GRE tunnel operating to encapsulate PPP packets
• Site-to-Site VPN Tunnel - Configures VPN gateways on routers to provide secure site-to-site communication between offices, partners, or remote workers; tunnels can be set using IPsec, PPTP or L2TP over IPsec protocols
• Client Mode VPN Tunnel - Supports native VPN client based on Windows® and MAC OS
• VPN pass through - Supports VPN pass through of PPTP, L2TP, and IPsec tunnels

Management

• HP ProLiant Server Dashboard - Enables auto-detection of HP ProLiant servers connected on the network followed by real-time updates of Active health status for the monitored servers
• Network Time Protocol (NTP) - Synchronizes timekeeping among distributed time servers and clients; keeps timekeeping consistent among all clock-dependent devices within the network so that the devices can provide diverse applications based on the consistent time
• Secure Web GUI - Provides a secure, easy-to-use graphical interface for configuring the module via HTTPS
• Event logging - Supports local logging as well as remote Syslog server
• Email alerts - Device can be configured to send email alerts to preconfigured email address
• USB support - Supports file transfer from compatible USB devices. Supports Samba and FTP server
• SNMP v1, v2c - Supports limited SNMP management capability
• Firmware upgrade - Supports firmware upgrade via HTTP/HTTPS. Also supports configuration file import/export through Web interface
• Traffic statistics - Monitor traffic statistics on device interfaces, SSID, and client level
• Tools - Troubleshooting tools, such as tech file generation, ping, trace-route, NSlookup, etc.
• Time-based rules - Simplifies network management by setting time-based rules on device features, such as wireless radio, security filters, etc.

Layer 2 switching

• Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) protocol snooping - Controls and manages the flooding of multicast packets in a Layer 2 network
• IEEE 802.1D Spanning Tree Protocol (IEEE 802.1D) - Provides redundant links while preventing network loops
• IEEE 802.1w Rapid Convergence Spanning Tree Protocol - Increases network uptime through faster recovery from failed links
• Auto MDI/MDI-X - Provides automatic adjustments for straight-through or crossover cables on all 10/100/1000 ports
• VLAN (IEEE 802.1Q) - Supports one tagged VLAN per LAN port. Helps segregate traffic on LAN ports to virtual groups

Layer 3 services

• Address Resolution Protocol (ARP) - Determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
• Dynamic Host Configuration Protocol (DHCP) - Simplifies the management of large IP networks and supports client and server; DHCP Relay enables DHCP operation across subnets
• IPv6 - Dual stack (IPv4/IPv6): transitions from IPv4 to IPv6, supporting connectivity for both protocols-MLD snooping: forwards IPv6 multicast traffic to the appropriate interface, preventing traffic flooding-IPv6 ready: switch hardware can support IPv6 routing
• Network Address Translation (NAT) and Port Address Translation (PAT) - Preserves a network’s IP address pool or conceals the private address of network resources such as Web servers, which are made accessible to users of a guest or public wireless LAN; provides choice of dynamic or static translation
• DHCP server - Multi-scope DHCP server hands out IPv4 and/or IPv6 addresses to client devices
• DMZ support - Allows users to open a local client for unrestricted two way access, especially if that client cannot run an Internet application properly from behind the NAT firewall
• Dynamic DNS (DDNS) - Supports DDNS feature that allows customers to access a dynamic address with a fixed domain name

Layer 3 routing

• Static routes - Ability to manually configure IPv4 and IPv6 routes
• RIP v1, v2, ng - Dynamically routes IPv4 and IPv6 packet between different subnets using RIP protocol

QoS

• Traffic Prioritization (DSCP) - Prioritizes traffic based on Layer 3 header in IP packets. Helps prioritize time-sensitive traffic like voice and video
• Traffic Prioritization (IEEE 802.1p) - Traffic prioritization based on Layer 2 packet headers. Allows real time traffic like voice and video to be prioritized
• IEEE 802.11e - IEEE 802.11e Wi-Fi Multimedia (WMM) wireless QoS standard—when combined with wired QoS policies—provides end-to-end QoS, delivering different wireless channel competitiveness for different services
• Queue - Device capable of segregating traffic into four priority queue to enable more granular traffic prioritization. This enables consistent performance for high priority traffic, even during periods of network congestion
• Traffic shaping - Enable configuration of bandwidth limit to traffic per queue
• Traffic remarking - Allows remarking of 802.1p and DSCP traffic priority
• Queue mapping - Allows mapping of traffic to queue based on MAC address, IP address, traffic type, and certain commonly used services

Ease of use

• MicroServer mounting - Purpose-built enclosure allows for physical stacking on HP ProLiant MicroServer Gen8
• Aesthetics - Embedded antennas expand installation options and increase aesthetics
• Easy to use - GUI-driven central management and configuration
• Fanless design - Enables quiet operation for deployment in open spaces
• Flexible mounting - Supports desktop as well as wall mount operation

Warranty and support

• 3-year Warranty 2.0 - Advance hardware replacement with next-business-day delivery (available in most countries).
• Electronic and telephone support (for Warranty 2.0) - Limited electronic and 24x7 telephone support is available from HP for the entire warranty period; to reach our support centers, refer to hp.com/networking/contact-support; for details on the duration of support provided with your product purchase, refer to hp.com/networking/warrantysummary.
• Software releases - To find software for your product, refer to hp.com/networking/support; for details on the software releases available with your product purchase, refer to hp.com/networking/warrantysummary.

Specifications:

	HP PS110 Wireless 802.11n VPN AM Router (JL065A)	HP PS110 Wireless 802.11n VPN WW Router (JL066A)
I/O ports and slots
	1 RJ-45 autosensing 10/100/1000 WAN port 4 RJ-45 autosensing 10/100/1000 LAN ports	1 RJ-45 autosensing 10/100/1000 WAN port 4 RJ-45 autosensing 10/100/1000 LAN ports
AP characteristics
Radios (built-in)	802.11a/b/g/n	802.11a/b/g/n
Radio operation modes	Client access, Client bridge	Client access, Client bridge
AP operation modes	Autonomous	Autonomous
Wi-Fi Alliance Certification	a/b/g/n Wi-Fi Certified	a/b/g/n Wi-Fi Certified
Physical characteristics
Dimensions	9.06(w) x 9.33(d) x 1.67(h) in (23 x 23.7 x 4.25 cm)	9.06(w) x 9.33(d) x 1.67(h) in (23 x 23.7 x 4.25 cm)
Weight	2.2 lb (1 kg)	2.2 lb (1 kg)
Memory and processor
	MIPS @ 700 MHz, 128 MB NAND flash	MIPS @ 700 MHz, 128 MB NAND flash
Mounting and enclosure
	MicroServer Gen8 mount/Desktop/wall-mount	Desktop/wall-mount
Performance
MAC address table size	2048 entries	2048 entries
VPN throughput	up to 30 Mbps	up to 30 Mbps
Dedicated IPsec VPN tunnels	5	5
Network throughput	920 Mbps (NAT)	920 Mbps (NAT)
Concurrent sessions	5	5
Number of VLANs	4	4
Environment
Operating temperature	32°F to 104°F (0°C to 40°C)	32°F to 104°F (0°C to 40°C)
Operating relative humidity	5% to 95%, noncondensing	5% to 95%, noncondensing
Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)
Altitude	up to 10,000 ft (3 km)	up to 10,000 ft (3 km)
	No Fan	No Fan
Electrical characteristics
AC voltage	100 - 240 VAC	100 - 240 VAC
Maximum power rating	9.5 W	9.5 W
Notes	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. 12 VDC power adapter
Reliability
MTBF (years)	51.54	51.54
Safety	UL 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1	UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60950-1

*For more information on 6600 Router Series products, Download the HP PS110 Wireless VPN Router Series Datasheet. (Click Here)

Documentation:

Download the HP PS110 Wireless VPN Router Series Datasheet (PDF).
