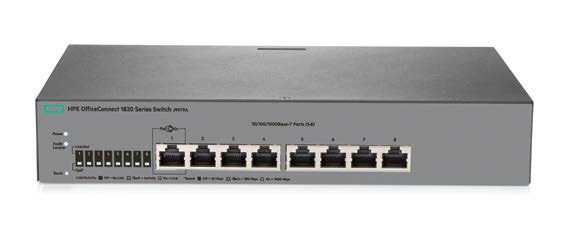

HPE OfficeConnect 1820-8G Switch #J9979A
Basic, smart-managed, fixed-configuration Gigabit Ethernet Layer 2 switches

Features & Benefits:

• Simple Web management Allows for easy management of the switch—even by nontechnical users—through an intuitive Web GUI; supports HTTP and HTTP Secure (HTTPS)
• SNMPv1, v2c Enable devices to be discovered and monitored from an SNMP management station
• Port mirroring Enables traffic on a port to be simultaneously sent to a network analyzer for monitoring
• Dual flash images Provide independent primary and secondary operating system files for backup while upgrading
• Network Time Protocol (NTP) Synchronizes timekeeping among distributed time servers and clients; keeps timekeeping consistent among all clock-dependent devices within the network
• Manual network time configuration Manually set the date and time on the switch in the absence of an NTP server
• Default DHCP client mode Allows the switch to be directly connected to a network, enabling plug-and-play operation; in the absence of a DHCP server on the network, the switch falls back to a default, fixed IP address

Quality of service (QoS)

• Traffic prioritization Provides time-sensitive packets (like VoIP and video) with priority over other traffic based on DSCP or IEEE 802.1p classification; packets are mapped to eight hardware queues for more effective throughput
• Broadcast control Allows limiting of broadcast traffic rate to reduce unwanted network broadcast traffic
• IEEE 802.1p/Q Delivers data to devices based on the priority and type of traffic; supports IEEE 802.1Q

Connectivity

• Auto-MDI/MDIX Automatically adjusts for straight through or crossover cables on all ports
• IEEE 802.3X Flow Control Provides a flow throttling mechanism propagated through the network to prevent packet loss at a congested node
• Loop protection If the switch detects a loop, it disables the source port from forwarding data packets originating from the switch to avoid broadcast storms
• SFP ports for fiber connectivity Provides fiber connections for uplinks and other connections across longer distances than copper cabling can support; SFP ports are in addition to available copper Ethernet ports, providing a higher total number of available ports. SFP ports available on 24- and 48 port models
• IEEE 802.3af PoE-powered device option Obtains power provided by a standard PoE device connected to port 1; deploy the switch wherever an Ethernet cable can reach as a power outlet is not needed (8-port GbE non-PoE+ model only) 3 Data sheet | HP 1820 Switch Series
• IEEE 802.3at Power over Ethernet (PoE+) Provides up to 30 W per port, which allows support of the latest PoE+-capable devices such as IP phones, wireless access points, and security cameras, as well as any IEEE 802.3afcompliant end device; lowers the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments
• PoE+ port availability Ports 1–4 provide PoE+ on the HP 1820-8G-PoE+ (65W) switch; ports 1–12 provide PoE+ on the HP 1820-24G-PoE+ (180W) switch; ports 1–24 provide PoE+ on the HP 1820-48G-PoE+ (370W) switch
• Auto-PoE power configuration The switch automatically assigns the required power to a port for a PD device based on Link Layer Discovery Protocol (LLDP). Optionally, the switch permits manual, per port, PoE power configuration
• PoE shutdown mode A PoE scheduler provides the ability to define the hours of PoE power being supplied to a group of switch ports based on a 24-hour day. The scheduler enables the flexibility to select individual days of a week as well as reoccurrence on a weekly basis with a start and end date.
• Energy Efficient Ethernet Compliant with IEEE 802.3az standard requirements to save energy during periods of low data activity
• Auto-port shutdown The switch saves power by automatically shutting down power to inactive ports. Power is restored on a port upon link detection
• Energy savings status The switch provides an estimated cumulative energy savings due to green Ethernet features being enabled

Security

• Secure Sockets Layer (SSL) Encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch
• Automatic denial-of-service protection Monitors nine types of malicious attacks and protects the network by blocking these attacks.
• Management password Provides security so that only authorized access to the Web browser interface is allowed

Performance

• Half-/full-duplex auto-negotiating capability on every port doubles the throughput of every port
• IGMP snooping Improves network performance through multicast filtering, instead of flooding traffic to all ports

Layer 2 switching

• VLAN support and tagging Supports up to 64 port-based VLANs and dynamic configuration of IEEE 802.1Q VLAN tagging, providing security between workgroups
• Jumbo packet support Improves the performance of large data transfers; supports frame size of up to 9,220 bytes

Resiliency and high availability

• IEEE 802.1D Spanning Tree Protocol (STP) and IEEE 802.1W Rapid Spanning Tree Protocol (RSTP) Provides redundant links while preventing network loops
• Link aggregation (trunking) Brings together groups of ports automatically using Link Aggregation Control Protocol (LACP), or manually, to form an ultra-high bandwidth connection to the network backbone; helps prevent traffic bottlenecks; the 8-port models support four trunks, the 24-port models support eight trunks and the 48-port models support 16 trunks. The 8- and 24-port switches can support up to four trunk members, and the 48-port switches can support up to eight trunk members

Ease of use

• Locator LED Allows users to set the locator LED on a specific switch to either turn on, blink, or turn off; simplifies troubleshooting by making it easy to locate a particular switch within a rack of similar switches
• Comprehensive LED display with per-port indicators Provides an at-a-glance view of status, activity, speed, and full-duplex operation

Flexibility

• Flexible installation Allows mounting on wall, desktop, or under table with supplied hardware
• Rack mountable All models include rack-mounting hardware for mounting in a standard 19-inch telco rack
• Kensington lock slot Allows switches to be physically secured in open-space deployments (8- and 24-port models)

Convergence

• LLDP-MED (Media Endpoint Discovery)

  Defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN to automatically configure network devices such as IP phones and access points, and allocate PoE power for more efficient energy savings

Warranty and support

• Limited Lifetime Warranty 2.0

Advance hardware replacement with next-business-day delivery (available in most countries). See hp.com/networking/warrantysummary for duration details

• Electronic and telephone support (for Limited Lifetime Warranty 2.0)

Limited 24x7 telephone support is available from HP for the first three years; limited electronic and business hours telephone support is available from HP for the entire warranty period.

Specifications:

	HPE OfficeConnect 1820 8G Switch (J9979A)	HPE OfficeConnect 1820 24G Switch (J9980A)	HPE OfficeConnect 1820 48G Switch (J9981A)
Ports
	8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASET/ 100BASE-TX: half or full; 1000BASE-T: full only Supports a maximum of 8 autosensing 10/100/1000 ports	24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 100/1000 Mbps ports (IEEE 802.3z Type 1000BASE-X, IEEE 802.3u Type 100BASE-FX) Supports a maximum of 24 autosensing 10/100/1000 ports plus 2 SFP ports	48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP 100/1000 Mbps ports (IEEE 802.3z Type 1000BASE-X, IEEE 802.3u Type 100BASE-FX) Supports a maximum of 48 autosensing 10/100/1000 ports plus 4 SFP ports
Physical characteristics
Dimensions	10(w) x 6.28(d) x 1.73(h) in (25.4 x 15.95 x 4.39 cm) (1U height)	17.42(w) x 9.69(d) x 1.73(h) in (44.25 x 24.61 x 4.39 cm) (1U height)	17.42(w) x 9.69(d) x 1.73(h) in (44.25 x 24.61 x 4.39 cm) (1U height)
Weight	1.81 lb (0.82 kg)	6 lb (2.72 kg)	7.3 lb (3.31 kg)
Memory and processor	ARM Cortex-A9 @ 400 MHz, 128 MB SDRAM, 16 MB flash; packet buffer size: 1.5 MB	ARM Cortex-A9 @ 400 MHz, 128 MB SDRAM; Packet buffer size: 1.5 MB, 16 MB flash	ARM Cortex-A9 @ 400 MHz, 128 MB SDRAM; Packet buffer size: 1.5 MB, 16 MB flash
Performance
100 Mb Latency	< 7 µs (LIFO 64-byte packets)	< 7 µs (LIFO 64-byte packets)	< 7 µs (LIFO 64-byte packets)
1000 Mb Latency	< 2.4 µs (LIFO 64-byte packets)	< 2 µs (LIFO 64-byte packets)	< 2 µs (LIFO 64-byte packets)
Throughput	up to 11.9 Mpps (64-byte packets)	up to 38.6 Mpps (64-byte packets)	up to 77.3 Mpps (64-byte packets)
Switching capacity	16 Gbps	52 Gbps	104 Gbps
MAC address table size	8000 entries	8000 entries	16000 entries
Reliability
MTBF (years)	144.93	80.00	61.73
Environment
Operating temperature	32°F to 104°F (0°C to 40°C)	32°F to 104°F (0°C to 40°C)	32°F to 104°F (0°C to 40°C)
Operating relative humidity	15% to 95% @ 104°F (40°C)	15% to 95% @ 104°F (40°C)	15% to 95% @ 104°F (40°C)
Non-Operating temperature	40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)
Non-Operating relative humidity	15% to 95% @ 140°F (60°C)	15% to 95% @ 140°F (60°C)	15% to 95% @ 140°F (60°C)
Altitude	up to 9,842 ft (3 km)	up to 9,842 ft (3 km)	up to 9,842 ft (3 km)
Acoustic	Power: 0 dB no fan	Power: 0 dB no fan	Power: 0 dB no fan
Electrical characteristics
Frequency	50/60 Hz	50/60 Hz	50/60 Hz
Voltage	100 - 240 VAC, rated (depending on power supply chosen)	100 - 127 / 200 - 240 VAC, rated (depending on power supply chosen)	100 - 127 / 200 - 240 VAC, rated (depending on power supply chosen)
Current	. 2 A	. 5/. 3 A	. 8/. 5 A
Maximum power rating	12.2 W	22 W	39 W
Idle power	10.2 W	16.9 W	28.8 W
Notes	Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Certifications
Safety	UL 60950-1; EN 60825; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1	UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1	UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1
Emmissions	FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A F	FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A	FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A
Services	Refer to the HP website for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.
Standards and Protocols (applies to all products in series)
Denial of service protection	CPU DoS Protection
General protocols	IEEE 802.1D Spanning Tree Protocol IEEE 802.1p Priority IEEE 802.1Q VLANs IEEE 802.1W Rapid Spanning Tree Protocol IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.3x Flow Control RFC 1534 DHCP/BOOTP Interoperation RFC 2030 Simple Network Time Protocol (SNTP) v4
Network management	IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
	HPE OfficeConnect 1820 8G PoE+ (65W) Switch (J9982A)	HPE OfficeConnect 1820 24G PoE+ (185W) Switch (J9983A)	HPE OfficeConnect 1820 48G PoE+ (370W) Switch (J9984A)
Ports
	4 RJ-45 autosensing 10/100/1000 PoE+ ports; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASET/ 100BASE-TX: half or full; 1000BASE-T: full only Supports a maximum of 8 autosensing 10/100/1000 ports	12 RJ-45 autosensing 10/100/1000 PoE+ ports; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 12 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASET/ 100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 100/1000 Mbps ports (IEEE 802.3z Type 1000BASE-X, IEEE 802.3u Type 100BASE-FX) Supports a maximum of 24 autosensing 10/100/1000 ports plus 2 SFP ports	24 RJ-45 autosensing 10/100/1000 PoE+ ports; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASET/ 100BASE-TX: half or full; 1000BASE-T: full only 4 SFP 100/1000 Mbps ports (IEEE 802.3z Type 1000BASE-X, IEEE 802.3u Type 100BASE-FX) Supports a maximum of 48 autosensing 10/100/1000 ports plus 4 SFP ports
Physical characteristics
Dimensions	10(w) x 6.28(d) x 1.73(h) in (25.4 x 15.95 x 4.39 cm) (1U height)	17.42(w) x 9.69(d) x 1.73(h) in (44.25 x 24.61 x 4.39 cm)(1U height)	17.42(w) x 12.7(d) x 1.73(h) in (44.25 x 32.26 x 4.39 cm) (1U height)
Weight	2.01 lb (0.91 kg)	7.3 lb (3.31 kg)	9.7 lb (4.4 kg)
Memory and processor	ARM Cortex-A9 @ 400 MHz, 128 MB SRAM, 16 MB flash; packet buffer size: 1.5 MB	ARM Cortex-A9 @ 400 MHz, 128 MB SDRAM, 16 MB flash; packet buffer size: 1.5 MB	ARM Cortex-A9 @ 400 MHz, 128 MB SDRAM, 16 MB flash; packet buffer size: 1.5 MB
Performance
100 Mb Latency	< 7 μs (LIFO 64-byte packets)	< 7 μs (LIFO 64-byte packets)	< 7 μs (LIFO 64-byte packets)
1000 Mb Latency	< 2.3 μs (LIFO 64-byte packets)	< 2 μs (LIFO 64-byte packets)	< 2 μs (LIFO 64-byte packets)
Throughput	up to 11.9 Mpps (64-byte packets)	up to 38.6 Mpps (64-byte packets)	up to 77.3 Mpps (64-byte packets)
Switching capacity	16 Gbps	52 Gbps	104 Gbps
MAC address table size	8000 entries	8000 entries	16000 entries
Reliability
MTBF (years)	112.36	64.52	45.05
Environment
Operating temperature	32°F to 104°F (0°C to 40°C)	32°F to 104°F (0°C to 40°C)	32°F to 104°F (0°C to 40°C)
Operating relative humidity	15% to 95% @ 104°F (40°C)	15% to 95% @ 104°F (40°C)	15% to 95% @ 104°F (40°C)
Non-Operating temperature	-40°F to 158°F (-40°C to 70°C)	-40°F to 70°F (-40°C to 21.1°C)	-40°F to 158°F (-40°C to 70°C)
Non-Operating relative humidity	15% to 95% @ 140°F (60°C)	15% to 95% @ 140°F (60°C)	15% to 95% @ 140°F (60°C)
Altitude	up to 9,842 ft (3 km)	up to 9,842 ft (3 km)	up to 9,842 ft (3 km)
Acoustic	Power: 0 dB no fan	Power: 0 dB no fan	Power: 45 dB
Electrical characteristics
Frequency	50/60 Hz	50/60 Hz	50/60 Hz
Voltage	100 - 240 VAC	100 - 127 / 200 - 240 VAC	100 - 127 / 200 - 240 VAC
Current	.9 A	2.6/1.3 A	5.1/2.6 A
Maximum power rating	83.9 W	240 W	481 W
Idle power	12.6 W	28.3 W	54.8 W
PoE power	65 W PoE+	185 W PoE+	370 W PoE+
Notes	Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE Power is the power supplied by the internal power supply, it is dependent on the type and quantity of power supplies and may be supplemented with the use of a External Power Supply (EPS).
Certifications
Safety	UL 60950-1; EN 60825; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1	UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1	UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1
Emmissions	FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A	FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A	FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A
Services	Refer to the HP website for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.
Standards and Protocols (applies to all products in series)
Denial of service protection	CPU DoS Protection
General protocols	IEEE 802.1D Spanning Tree Protocol IEEE 802.1p Priority IEEE 802.1Q VLANs IEEE 802.1W Rapid Spanning Tree Protocol IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.3x Flow Control RFC 1534 DHCP/BOOTP Interoperation RFC 2030 Simple Network Time Protocol (SNTP) v4
Network management	IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

Documentation:

Download the HPE OfficeConnect 1820 Switch Series Datasheet (PDF).
