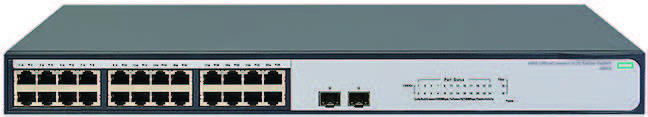

HPE OfficeConnect 1420-24G-2SFP Switch #JH017A
Unmanaged plug-and-play Gigabit Ethernet switching
Please visit our Aruba Networks (HPE) site for the latest Aruba Networks' wireless products
HPE OfficeConnect 1420 24G 2SFP SwitchOur Price: $310.00
More pricing below, click here!
Overview:
Key features
- Unmanaged plug-and-play Gigabit Ethernet switching
- Green features for low power consumption
- Fanless design for silent operation
- Quality of Service capabilities for improved network efficiency
- Limited Lifetime Warranty
Product overview
The HPE OfficeConnect 1420 Switch Series consists of unmanaged Gigabit Ethernet switches, for small businesses and others looking for plug-and-play basic Layer 2 connectivity for their network, including low-cost PoE+ and 10-Gigabit uplink models.
The 1420 Switch Series includes nine Gigabit switches. All have 10/100/1000 ports for affordable Gigabit connections using copper Category 5 cabling. There is a model with 16 RJ-45 ports. There is a 24-port model with two SFP Gigabit ports, ideal where long distances require fiber-based connections. Another 24-port model supports IEEE 802.3at PoE+ on 12 of its ports, able to forward up to 30 W power on these ports to power access points, IP phones, IP cameras, and other PoE-enabled devices. For cost-effective high-speed fiber-based server connections, there is a 24-port 10/100/1000 switch with two SFP+ 10-Gigabit ports. Lastly, there is a model simply with a 24-port 10/100/1000 layout.
HPE OfficeConnect 1420 switches have Quality of Service (QoS) support and IEEE 802.3x flow control features that improve network efficiency.
Simplified plug-and-play convenience is supported by features such as auto-MDIX and auto-speed negotiation. Hewlett Packard Enterprise has innovated and combined the latest advances in silicon technology to bring you some of the most power-efficient switches. All models support the Energy Efficient Ethernet IEEE 802.3az standard, as well as auto power-down mode on idle ports and power saving on short-distance cables. With their fanless silent operation, these switches are ideal for office deployment. HPE OfficeConnect 1420 switches come with a Limited Lifetime Warranty covering the unit and power supplies.
Features & Benefits:
Ease of use- Unmanaged
Provides plug-and-play simplicity - Auto-speed negotiation
Selects individual port speed automatically, depending on client capabilities; removing the need for manual intervention enables simple plug-and-play operation - Comprehensive LED display with per-port indicators
Provides an at-a-glance view of the status, activity, speed, and full-duplex operation of the switches - Flow control
Helps ensure reliable communications during full-duplex operation - HPE/IEEE Auto-MDIX
Automatically adjusts for straight-through or crossover cables on all RJ-45 ports
- Gigabit Ethernet 10/100/1000 connectivity—high speed Ethernet connections over highly affordable copper Category 5 cabling
- 10-Gigabit fiber connectivity
Future-proof 10-Gigabit technology allows high-speed fiber connection to servers or other switches with connection flexibility using optional SFP+ transceivers (Model: JH018A) - IEEE 802.3at Power over Ethernet (PoE+)
Provides up to 30 W per port, which allows support of the latest PoE+ capable devices such as IP phones, wireless Access Points, and security cameras, as well as any IEEE 802.3af compliant end device; reduces the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments (Models: JH019A, JH328A, JH330A)
- Energy Efficient Ethernet support
Supports new IEEE 802.3az standard; and allows lower power consumption, when operated with IEEE-compliant client devices - Half-/full-duplex auto-negotiating capability on every port doubles the throughput of every port
- Jumbo frame support
Allows frames up to 9,216 bytes to be switched through the network
- Fanless design
Enables quiet operation for deployment in open spaces - Internal power supply
Delivers operational convenience and an environment suitable for business operations
- IEEE 802.1p prioritization
Delivers data to devices, based on the priority and type of traffic - DiffServ Code Point (DSCP) support
Allows real-time traffic prioritization, based on Layer 3 TOS/DSCP parameters
- Limited Lifetime Warranty
This series comes with a Limited Lifetime Warranty providing advance hardware replacement with next business day shipment in most countries, 24x7 phone support available for the first 90 days, and electronic and business hours phone support for the entire warranty period.
See hpe.com/networking/warrantysummary for full warranty and support information included with your product purchase.
Specifications:
| Specifications | HPE OfficeConnect 1420-24G-2SFP Switch (JH017A) |
|---|---|
| I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASE- T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 100/1000 Mbps ports (IEEE 802.3z Type 1000BASE-X, IEEE 802.3u Type 100BASE-FX) Supports a maximum of 24 autosensing 10/100/1000 ports plus 2 SFP ports |
| Physical characteristics | |
| Dimensions | 17.32(w) x 6.81(d) x 1.73(h) in. (44 x 17.3 x 4.4 cm) |
| Weight | 4.85 lb (2.2 kg) |
| Memory and processor | 1 MB flash; Packet buffer size: 512 KB |
| Mounting and enclosure | Mounts in an EIA standard 19-inch telco rack (hardware included); Desktop mounting |
| Performance | |
| 100 Mb Latency | < 8 µs (LIFO 64-byte packets) |
| 1000 Mb Latency | < 16 µs (LIFO 64-byte packets) |
| Throughput | Up to 38.7 Mpps (64-byte packets) |
| Switching capacity | 52 Gbps |
| MAC address table size | 8192 entries |
| Environment | |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Operating relative humidity | 5% to 95%, noncondensing |
| Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) |
| Nonoperating/Storage relative humidity | 5% to 95%, noncondensing |
| Altitude | Up to 16,404 ft (5 km) |
| Acoustic | Power: 0 dB No fan |
| Reliability | |
| MTBF (years) | 131.08 years |
| Specifications (continued) | HPE OfficeConnect 1420-24G-2SFP Switch (JH017A) |
| Electrical characteristics | |
| Frequency | 50/60 Hz |
| Voltage | 100–240 VAC, rated |
| Current | 0.3 A |
| Maximum power rating | 18 W |
| Notes | Maximum power rating is the worst-case theoretical maximum number provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. This model comes with an internal power supply. Power cord provided based on region option. |
| Safety | CSA 22.2 No. 60950; UL 60950-1; IEC 60950-1; EN 60950-1 |
| Emissions | FCC Rules Part 15, Subpart B Class A |
| Immunity | |
| Generic | EN 55022, CISPR 22 |
| EN | EN 55024, CISPR 24 |
| ESD | IEC 61000-4-2 |
| Radiated | IEC 61000-4-3 |
| EFT/Burst | IEC 61000-4-4 |
| Surge | IEC 61000-4-5 |
| Conducted | IEC 61000-4-6 |
| Power frequency magnetic field | IEC 61000-4-8 |
| Voltage dips and interruptions | IEC 61000-4-11 |
| Harmonics | IEC 61000-3-2 |
| Flicker | IEC 61000-3-3 |
| Notes | Use only supported genuine HPE transceivers with your switch. |
| Services | Refer to the Hewlett Packard Enterprise website at hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services, and response times in your area, please contact your local Hewlett Packard Enterprise sales office. |
Documentation:
Download the HPE OfficeConnect 1420 Switch Series Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
HPE OfficeConnect 1420 24G 2SFP SwitchOur Price: $310.00
