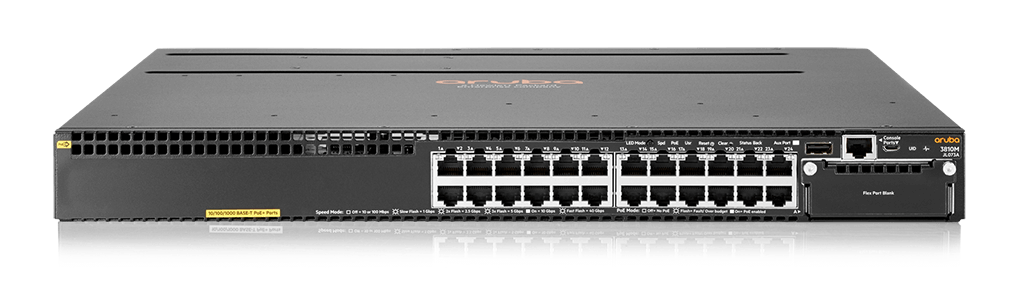

Aruba 3810M 24G PoE+ 1-slot Switch (JL073A)
Performance and power for the mobile-first campus

Features and Benefits:

Software-defined networking

• OpenFlow is a key technology that enables SDN by allowing separation of the data (packet forwarding) and control (routing decision) paths

Unified wired and wireless

• Aruba ClearPass Policy Manager provides profiling, authentication, and policy management across multi- vendor wired and wireless networks
• HTTP redirect function supports HPE Intelligent Management Center (IMC) bring your own device (BYOD) solution
• Switch auto-configuration automatically configures switch for different settings such as VLAN, CoS, PoE max power, and PoE priority when Aruba AP is detected
• User Role a set of switch-based policies in areas such as security, authentication, and QoS. A User Role can be assigned to a group of users or devices, using switch configuration or ClearPass
• Per-port Tunneled Node provide secured tunnel to transport network traffic on a per-port basis to Aruba Controller. Authentication and network policies will be applied and enforced at the Controller
• NEW Static IP Visibility allows ClearPass to do accounting for clients with static IP address

Quality of Service (QoS)

• Advanced classifier-based QoS classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis
• Layer 4 prioritization enables prioritization based on TCP/UDP port numbers
• Class of Service (CoS) sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
• Bandwidth shaping

- Port-based rate limiting provides per-port ingress-/ egress-enforced increased bandwidth
- Classifier-based rate limiting uses an access control list (ACL) to enforce increased bandwidth for ingress traffic on each port
- Reduced bandwidth provides per-port, per-queue egress-based reduced bandwidth

• Remote intelligent mirroring mirrors selected ingress/egress traffic based on an ACL, port, MAC address, or VLAN to a local or remote HPE 8200 zl, 6600, 6200 yl, 5400 zl, 5400R, or 3500 Switch anywhere on the network
• Remote monitoring (RMON), Extended RMON (XRMON), and sFlow® v5 provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events
• Traffic prioritization allows real-time traffic classification into eight priority levels that are mapped to eight queues

Management

• NEW Aruba Central support Cloud based management platform offers simple, secure, and cost effective way to manage switches
• Friendly port names allows assignment of descriptive names to ports
• IEEE 802.1AB Link Layer Discovery Protocol (LLDP) advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications
• Command authorization leverages RADIUS to link a custom list of CLI commands to an individual network administrator’s login; an audit trail documents activity
• Multiple configuration files stores easily to the flash image
• Dual flash images provides independent primary and secondary operating system files for backup while upgrading
• Out-of-band Ethernet management port enables management over a separate physical management network; and keeps management traffic segmented from network data traffic
• Comware CLI
  • Comware-compatible CLI bridges the experience of Hewlett Packard Enterprise (HPE) Comware CLI users who are using the ArubaOS-Switch CLI
  • Display and fundamental Comware CLI commands are natively embedded in the switch CLI; display output is formatted as on Comware-based switches; fundamental commands provide Comware-familiar initial switch setup
  • Configuration Comware CLI commands when Comware commands are entered, CLI help is elicited to formulate the correct ArubaOS-Switch software CLI command
• Zero-Touch Provisioning (ZTP) simplified installation of the switch infrastructure using Aruba Activate-based or DHCP- based process with AirWave Network Management
• Unidirectional Link Detection (UDLD) supports HPE UDLD and DLDP protocols to monitor a cable between two switches and shut down the ports on both ends if a broken link is detected, preventing network problems such as loops
• NEW IP SLA for Voice Monitor quality of voice traffic with UDP Jitter and UDP Jitter for VoIP tests

Connectivity

• Jumbo frames on Gigabit Ethernet and 10-Gigabit Ethernet ports, jumbo frames allow high-performance remote backup and disaster-recovery services
• IEEE 802.3at PoE+ provides up to 30 W per port to IEEE 802.3at-complaint PoE/PoE+-powered devices such as video IP phones, IEEE 802.11n wireless access points, and advanced pan/zoom/tilt security cameras
• Pre-standard PoE support detects and provides power to pre-standard PoE devices (refer to the list of supported devices in the product FAQs, which can be accessed at www.hpe.com/networking)
• Choice of uplinks
  • SFP+ uplink models provide fiber-optic (up to 70 km) or direct-attach-cable (DAC) connectivity
  • 10GBASE-T uplink models offer 10GbE speeds, using standard RJ-45 connectors and standard twisted-pair cabling up to 100 m
• Auto-MDIX provides automatic adjustments for straight- through or crossover cables on all RJ-45 ports
• IPv6
  • IPv6 host enables switch management in an IPv6 network
  • Dual stack (IPv4 and IPv6) transitions IPv4 to IPv6, supporting connectivity for both protocols
  • MLD snooping forwards IPv6 multicast traffic to the appropriate interface
  • IPv6 ACL/QoS supports ACL and QoS for IPv6 traffic
  • IPv6 routing supports static, RIPng, OSPFv3 routing protocols
  • 6in4 tunneling supports encapsulation of IPv6 traffic in IPv4 packets
  • Security provides RA guard, DHCPv6 protection, dynamic IPv6 lockdown, and ND snooping

Performance

• Selectable queue configurations allows for increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications
• Energy-efficient design
  • 80 PLUS Silver Certified Power Supply increases power efficiency and savings
  • Energy-efficient Ethernet (EEE) support reduces power consumption in accordance with IEEE 802.3az
• Meshed stacking technology
  • High-performance stacking provides up to 336 Gbps of stacking throughput; each 4-port stacking module can support up to 42 Gbps in each direction per stacking port
  • Ring, chain, and mesh topologies support up to a 10-member ring or chain and 5-member fully meshed stacks; meshed topologies offer increased resiliency vs. a standard ring
  • Virtualized switching provides simplified management as the switches appear as a single chassis when stacked
• Aruba Provision ASIC architecture is designed with the latest ProVision ASIC, providing very low latency, increased packet buffering, and adaptive power consumption

Resiliency and high availability

• Virtual Router Redundancy Protocol (VRRP) allows groups of two routers to back each other up dynamically to create highly available routed environments in IPv4 and IPv6 networks
• Nonstop switching and routing improves network availability to better support critical applications, such as unified communication and mobility; traffic will continue to be forwarded during failovers, when the backup member of the stack becomes the commander
• IEEE 802.3ad Link Aggregation Protocol (LACP) and Hewlett Packard Enterprise port trunking support up to 144 trunks, each with up to 8 links (ports) per trunk
• IEEE 802.1s Multiple Spanning Tree provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w
• Dual hot-swappable power supplies
  • Increased resiliency provides secondary power supply to enable complete switch power redundancy in case of power line or supply failure
  • Increased PoE+ power provides the secondary power supply to increase the total available PoE+ power
• Distributed trunking enables loop-free and redundant network topology without using Spanning Tree Protocol; allows a server or switch to connect to two switches using one logical trunk for redundancy and load sharing
• SmartLink provides easy-to-configure link redundancy of active and standby links

Layer 2 switching

• IEEE 802.1ad QinQ increases the scalability of an Ethernet network by providing a hierarchical structure; connects multiple LANs on a high-speed campus or metro network
• VLAN support and tagging supports the IEEE 802.1Q standard and 4096 VLANs simultaneously
• IEEE 802.1v protocol VLANs isolate select non-IPv4 protocols automatically into their own VLANs
• MAC-based VLAN provides granular control and security; uses RADIUS to map a MAC address/user to specific VLANs
• Rapid Per-VLAN Spanning Tree (RPVST+) allows each VLAN to build a separate spanning tree to improve link bandwidth usage; is compatible with PVST+
• HPE switch meshing dynamically load balances across multiple active redundant links to increase available aggregate bandwidth; allows concurrent Layer 3 routing
• GVRP and MVRP allows automatic learning and dynamic assignment of VLANs

Layer 3 services

• Loopback interface address defines an address in Routing Information Protocol (RIP) and Open Shortest Path First (OSPF), improving diagnostic capability
• Route maps provide more control during route redistribution; allow filtering and altering of route metrics
• User datagram protocol (UDP) helper function allows UDP broadcasts to be directed across router interfaces to specific IP unicast or subnet broadcast addresses; and helps prevent server spoofing for UDP services such as DHCP
• DHCP server centralizes and reduces the cost of IPv4 address management
• Bidirectional Forwarding Detection (BFD) enables link connectivity monitoring and reduces network convergence time for OSPFv2, and VRRP

Layer 3 routing

• Static IP routing provides manually configured routing for both IPv4 and IPv6 networks
• OSPF provides OSPFv2 for IPv4 routing and OSPFv3 for IPv6 routing
• Policy-based routing makes routing decisions based on policies set by the network administrator

• Border Gateway Protocol (BGP) provides IPv4 Border Gateway Protocol routing, which is scalable, robust, and flexible
• Routing Information Protocol (RIP) provides RIPv1, RIPv2, and RIPng

Security

• Source-port filtering allows only specified ports to communicate with each other
• RADIUS/TACACS+ eases switch management security administration by using a password authentication server
• Secure shell encrypts all transmitted data for secure remote CLI access over IP networks
• Secure Sockets Layer (SSL) encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch
• Port security allows access only to specified MAC addresses, which can be learned or specified by the administrator
• MAC address lockout prevents particular configured MAC addresses from connecting to the network
• Detection of malicious attacks monitors 10 types of network traffic and sends a warning when an anomaly that potentially can be caused by malicious attacks is detected
• Secure FTP allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a switch configuration file
• Switch management logon security helps secure switch CLI logon by optionally requiring either RADIUS or TACACS+ authentication
• Secure management access delivers secure encryption of all access methods (CLI, GUI, or MIB) through SSHv2, SSL, and/or SNMPv3
• ICMP throttling defeats ICMP denial-of-service attacks by enabling any switch port to automatically throttle ICMP traffic automatically
• Identity-driven ACL enables implementation of a highly granular and flexible access security policy and VLAN assignment specific to each authenticated network user
• STP BPDU port protection blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks
• Dynamic IP lockdown works with DHCP protection to block traffic from unauthorized hosts, preventing IP source address spoofing
• DHCP protection blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks
• Dynamic ARP protection blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data
• STP root guard protects the root bridge from malicious attacks or configuration mistakes
• Management Interface Wizard helps secure management interfaces such as SNMP, telnet, SSH, SSL, Web, and USB at the desired level
• Security banner displays a customized security policy when users log in to the switch
• Switch CPU protection provides automatic protection against malicious network traffic trying to shut down the switch
• ACLs provide filtering based on the IP field, source/ destination IP address/subnet and source/destination TCP/UDP port number on a per-VLAN or per-port basis
• Multiple authentication methods
  • IEEE 802.1X authenticates multiple IEEE 802.1X users per port; prevents a user from “piggybacking” on another user’s authentication
  • Web-based authentication authenticates from Web browser for clients that do not support 802.1X supplicant
  • MAC-based authentication authenticates client with the RADIUS server based on client’s MAC address
  • Concurrent authentication modes enables a switch port to accept up to 32 sessions of 802.1X, Web, and MAC authentication
• Private VLAN provides network security by restricting peer- to-peer communication to prevent a variety of malicious attacks; typically a switch port can only communicate with other ports in the same community and/or an uplink port, regardless of VLAN ID or destination MAC address

Convergence

• IP multicast snooping (data-driven IGMP) prevents flooding of IP multicast traffic
• LLDP-MED (Media Endpoint Discovery) defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN to configure network devices such as IP phones automatically
• PoE allocations supports multiple methods (automatic, IEEE 802.3af class, LLDP-MED, or user-specified) to allocate PoE power for more efficient energy savings
• IP multicast routing includes PIM sparse and dense modes to route IP multicast traffic
• Auto VLAN configuration for voice
  • RADIUS VLAN uses a standard RADIUS attribute and LLDP-MED to configure a VLAN automatically for IP phones
  • CDPv2 uses CDPv2 to configure legacy IP phones
• Local MAC Authentication assigns attributes such as VLAN and QoS using locally configured profile that can be a list of MAC prefixes

Warranty and support

• Limited Lifetime Warranty See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.
• Software releases to find software for your product, refer to www.hpe.com/networking/support; for details on the software releases available with your product purchase, refer to www.hpe.com/networking/warrantysummary

Specifications:

3810 Series Specifications

PHYSICAL INTERFACES 3810M 24G 1-slot Switch (JL071A) 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 – 24 support MACSec 3810M 48G 1-slot Switch (JL072A) 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 – 48 support MACSec 3810M 24G PoE+ 1-slot Switch (JL073A) 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 – 24 support MACSec 3810M 48G PoE+ 1-slot Switch (JL074A) 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 – 48 support MACSec 3810M 16SFP+ 2-slot Switch (JL075A) 16 SFP+ fixed 1000/10000 SFP+ ports; Duplex: 100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 – 16 support MACSec 3810M 40G 8 HPE Smart Rate PoE+ 1-slot Switch (JL076A) 40 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 – 40 support MACSec 3810M 48G PoE+ 4sfp+ 680W Switch (JL428A) 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1-48 support MACSec 3810M 48G PoE+ 4SFP+ 1050W Switch (JL429A) 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1-48 support MACSec 3810M 24SFP+ 250W Switch (JL430A) 24 SFP+ fixed 1000/10000 SFP+ ports; Duplex: 100BASE-TX: half or full; 1000BASE-T: full only; Ports 1-24 support MACSec Additional ports and slots 1 stacking module slot 1 RJ-45 serial console port 1 RJ-45 out-of-band management port 1 dual-personality (RJ-45 or USB micro-B) Power supplies 2 power supply slots 1 minimum power supply required (ordered separately) Bundles (JL428A, JL429A, JL430A) include a power supply and uplink module(s) Memory and processor P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card Dual ARM Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal Performance IPv6 Ready Certified 1000 Mb Latency: < 2.8 µs (FIFO 64-byte packets) 10 Gbps Latency: < 1.8 µs (FIFO 64-byte packets) 40 Gbps Latency: < 1.5 µs (FIFO 64-byte packets) Routing table size: 10000 entries (IPv4), 5000 entries (IPv6) MAC address table size: 64000 entries Throughput: 3810M 24G 1-slot Switch (JL071A): up to 95.2 Mpps (64-byte packets) 3810M 48G 1-slot Switch (JL072A): up to 190.5 Mpps (64-byte packets) 3810M 24G PoE+ 1-slot Switch (JL073A): up to 95.2 Mpps (64-byte packets) 3810M 48G PoE+ 1-slot Switch (JL074A): up to 190.5 Mpps (64-byte packets) 3810M 16SFP+ 2-slot Switch (JL075A): up to 287.5 Mpps (64-byte packets) 3810M 40G 8 HPE Smart Rate PoE+ 1-slot Switch (JL076A): up to 273.8 Mpps (64-byte packets) 3810M 48G PoE+ 4sfp+ 680W Switch (JL428A): up to 190.5 Mpps (64-byte packets) 3810M 48G PoE+ 4SFP+ 1050W Switch (JL429A): up to 190.5 Mpps (64-byte packets) 3810M 24SFP+ 250W Switch (JL430A): up to 285.7 Mpps (64-byte packets) Routing/Switching capacity: 3810M 24G 1-slot Switch (JL071A): 160 Gbps 3810M 48G 1-slot Switch (JL072A): 320 Gbps 3810M 24G PoE+ 1-slot Switch (JL073A): 160 Gbps 3810M 48G PoE+ 1-slot Switch (JL074A): 320 Gbps 3810M 16SFP+ 2-slot Switch (JL075A): 480 Gbps 3810M 40G 8 HPE Smart Rate PoE+ 1-slot Switch (JL076A): 480 Gbps 3810M 48G PoE+ 4sfp+ 680W Switch (JL428A): 320 Gbps 3810M 48G PoE+ 4SFP+ 1050W Switch (JL429A): 320 Gbps 3810M 24SFP+ 250W Switch (JL430A): 480 Gbps Switch fabric speed: 3810M 24G 1-slot Switch (JL071A): 169 Gbps 3810M 48G 1-slot Switch (JL072A): 338 Gbps 3810M 24G PoE+ 1-slot Switch (JL073A): 169 Gbps 3810M 48G PoE+ 1-slot Switch (JL074A): 338 Gbps 3810M 16SFP+ 2-slot Switch (JL075A): 508 Gbps 3810M 40G 8 HPE Smart Rate PoE+ 1-slot Switch (JL076A): 508 Gbps 3810M 48G PoE+ 4sfp+ 680W Switch (JL428A): 338Gbps 3810M 48G PoE+ 4SFP+ 1050W Switch (JL429A): 338Gbps 3810M 24SFP+ 250W Switch (JL430A): 508Gbps

DIMENSIONS (H) 4.39 cm x (W) 44.25 cm x (D) 43.13 cm (1.73" x 17.42" x 16.98") (1U height) 3810M 24G 1-slot Switch (JL071A): 5.79 kg (12.76 lb) 3810M 48G 1-slot Switch (JL072A): 5.99 kg (13.20 lb) 3810M 24G PoE+ 1-slot Switch (JL073A): 5.91 kg (13.02 lb) 3810M 48G PoE+ 1-slot Switch (JL074A): 6.18 kg (13.62 lb) 3810M 16SFP+ 2-slot Switch (JL075A): 6.02 kg (13.28 lb) 3810M 40G 8 HPE Smart Rate PoE+ 1-slot Switch (JL076A): 6.17 kg (13.61 lb) 3810M 48G PoE+ 4sfp+ 680W Switch (JL428A): 7.18 kg (15.82 lb) 3810M 48G PoE+ 4SFP+ 1050W Switch (JL429A): 7.23 kg (15.94 lb) 3810M 24SFP+ 250W Switch (JL430A): 508Gbps: 7.06 kg (15.56 lb) Included accessories Switch ships with 1 JL088A fan tray installed. Spares ordered separately. 1 fan tray slot Bundles (JL428A, JL429A, JL430A) include a power supply and uplink module(s) Mounting and enclosure Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only ENVIRONMENTAL Operating temperature range: 0° C to 45° C (32°F to 113°F) Operating humidity: 15% to 95% @ 104°F (40°C), noncondensing Storage temperature range: -40° C to 70° C (-40°F to 158°F) Storage humidity: 15% to 90% @ 65°C (149°F), non-condensing Operating altitude: 10,000 feet Acoustic noise: 3810M 24G 1-slot Switch (JL071A): Power: 39 dB, Pressure: 22.8 dB 3810M 48G 1-slot Switch (JL072A): Power: 38 dB, Pressure: 21.8 dB 3810M 24G PoE+ 1-slot Switch (JL073A): Power: 48 dB, Pressure: 30.7 dB 3810M 48G PoE+ 1-slot Switch (JL074A): Power: 42 dB, Pressure: 26 dB 3810M 16SFP+ 2-slot Switch (JL075A): Power: 39 dB, Pressure: 22.3 d 3810M 40G 8 HPE Smart Rate PoE+ 1-slot Switch (JL076A): Power: 45 dB, Pressure: 27.9 Db 3810M 48G PoE+ 4sfp+ 680W Switch (JL428A): Power: 47 dB, Pressure: 29.4 dB 3810M 48G PoE+ 4SFP+ 1050W Switch (JL429A): Power: 47 dB, Pressure: 29.4 dB 3810M 24SFP+ 250W Switch (JL430A): 508Gbps: Power: 39 dB, Pressure: 22.3 Db SAFETY CERTIFICATIONS EN 60950/IEC 60950, UL 60950 CAN/CSA 22.2 No. 60950 EN 60825 24G 1-slot Switch (JL071A), additionally: UL 60950-1; CSA 22.2 60950-1; EN 60950-1:2006+A11:2009+A1:2010+A12:2011 Emissions FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013 Immunity Generic: EN55022: 2010 EN: EN55024: 2010 ESD: IEC 61000-4-2 Radiated: IEC 61000-4-3; 3 V/m EFT/Burst: IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line) Surge: IEC 61000-4-5; 1 kV/2 kV AC Conducted: IEC 61000-4-6; 3 V Power frequency magnetic field: IEC 61000-4-8; 1 A/m, 50 or 60 Hz Voltage dips and interruptions: IEC 61000-4-11; >95% reductions, 0.5 period; 30% reduction, 25 periods Harmonics: EN61000-3-2:2006 +A1:2009 +A2:2009 Class A Flicker: EN61000-3-3:2008 MANAGEMENT AND MONITORING Command line interface Graphical user interface (Web browser) AirWave network platform Central network management IMC - Intelligent Management Center Configuration menu Out-of-band management (RJ-45 Ethernet) In-line and out-of-band Out-of-band management (serial RS-232c or micro usb) WARRANTY AND SUPPORT Limited lifetime warranty (all models) See www.hpe.com/networking/warrantysummaryfor warranty and support information included with your product purchase. Software releases (all models) to find software for your product, refer to www.hpe.com/networking/support; for details on the software releases available with your product purchase, refer to www.hpe.com/networking/warrantysummary.
