HP 2920 Switch Series
Fixed Port L3 Managed Ethernet Switches
HP 2920 Switch Series is now the Aruba 2920 Switch Series
More pricing below, click here!
Overview:

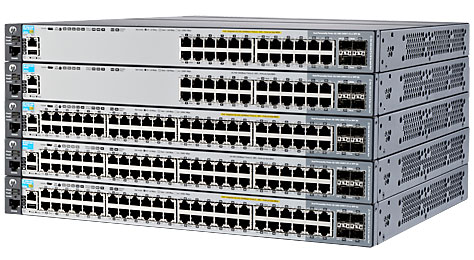

The HP 2920 Switch Series consists of four switches: the HP 2920-24G and 2920-24G-PoE+ Switches with 24 10/100/1000 ports, and the HP 2920-48G and 2920-48G-PoE+ Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or SFP connectivity.
In addition, the 2920 switch series supports up to four optional 10 Gigabit Ethernet (SFP+ and/or 10GBASE-T) ports, as well as a two-port stacking module. These options provide you with flexible and easy-to-deploy uplinks and stacking.
Together with static and RIP routing, robust security and management, enterprise-class features, free lifetime warranty, and free software updates, the 2920 switch series is a cost-effective, scalable solution for customers who are building high-performance networks. These switches can be deployed at the enterprise edge, in remote branch offices, and in converged networks.
- High-performance Gigabit Ethernet access switch
- Four optional 10GbE (SFP+ and/or 10GBASE-T) ports
- Stacking capability with a total of four switches
- Layer 2 and Layer 3 plus static and RIP routing, PoE and PoE+ support
- Lifetime warranty, sFlow, ACLs, OpenFlow, and rate limiting
What's New
HP 2920 Switch Series is flexible, scalable, and energy efficient 1GbE access solution. With modular 10G uplinks, power supplies, and 4-switch stacking. Lifetime Warranty
- High Performance Gigabit Access Switch with EEE, Layer 2 and Layer 3 plus Static and RIP Routing
- PoE and PoE+ Support
- IPV6 Support
- Stacking capability with a total of 4 switches
- Lifetime Warranty
Images:

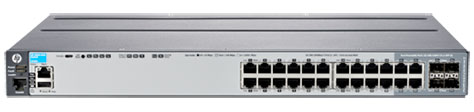

HP 2920-24G Switch (J9726A)

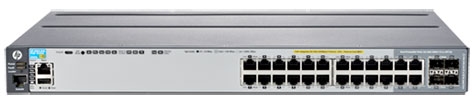

HP 2920-24G-POE+ Switch (J9727A)

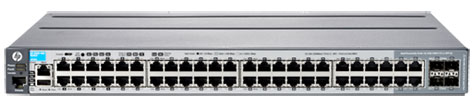

HP 2920-48G Switch (J9728A)

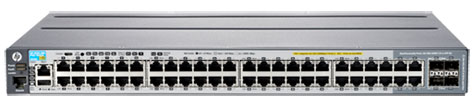

HP 2920-48G-POE+ Switch (J9729A)

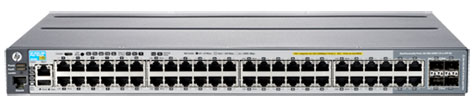

HP 2920-48G-POE+ 740W Switch (J9836A)
Features & Benefits:
Specifications:
| 2920-24G (J9726A) | 2920-24G-PoE+ (J9727A) | 2920-48G (J9728A) | |
|---|---|---|---|
| Ports | |||
| 20 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)
Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 RJ-45 dual-personality 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) 2 module slots 1 stacking module slot 1 dual-personality (RJ-45 or USB micro-B) 1 USB 1.1 1 RJ-45 out-of-band management port |
20 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)
Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 RJ-45 dual-personality 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) 2 module slots 1 stacking module slot 1 dual-personality (RJ-45 or USB micro-B) 1 USB 1.1 1 RJ-45 out-of-band management port |
44 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)
Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 RJ-45 dual-personality 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) 2 module slots 1 stacking module slot 1 dual-personality (RJ-45 or USB micro-B) 1 USB 1.1 1 RJ-45 out-of-band management port |
|
| Power supplies | |||
| 1 power supply slot
1 minimum power supply required includes: 1 x J9739A (HP X331 165W 100-240VAC to 12VDC Modular Power Supply) |
1 power supply slot
1 minimum power supply required includes: 1 x J9738A (HP X332 575W 100-240VAC to 54VDC Modular Power Supply) |
1 power supply slot
1 minimum power supply required includes: 1 x J9739A (HP X331 165W 100-240VAC to 12VDC Modular Power Supply) |
|
| Physical characteristics | |||
| 17.42(w) x 13.23(d) x 1.75(h) in (44.25 x 33.6 x 4.45 cm) (1U height) | 17.42(w) x 13.23(d) x 1.73(h) in (44.25 x 33.6 x 4.4 cm) (1U height) | 17.42(w) x 13.23(d) x 1.73(h) in (44.25 x 33.6 x 4.4 cm) (1U height) | |
| Weight | 11.57 lb (5.25 kg) | 12.04 lb (5.46 kg) | 11.95 lb (5.42 kg) |
| Memory and processor | |||
| Tri Core ARM1176 @ 625 MHz, 512 MB SDRAM, 1 GB flash MB; packet buffer size: 11.25 MB (6.75 MB dynamic egress + 4.5 MB ingress) | Tri Core ARM1176 @ 625 MHz, 512 MB SDRAM, 1 GB flash; packet buffer size: 11.25 MB (6.5 MB dynamic egress + 4.5 MB ingress) | Tri Core ARM1176 @ 625 MHz, 512 MB SDRAM, 1 GB flash; packet buffer size: 11.25 MB (6.75 MB dynamic egress + 4.5 MB ingress) | |
| Performance | |||
| 100 Mb Latency | < 9.0 µs (FIFO 64-byte packets) | < 9.0 µs (FIFO 64-byte packets) | < 9.0 µs (FIFO 64-byte packets) |
| 1000 Mb Latency | < 3.3 µs (FIFO 64-byte packets) | < 3.3 µs (FIFO 64-byte packets) | < 3.3 µs (FIFO 64-byte packets) |
| 10 Gbps Latency | < 3.3 µs (FIFO 64-byte packets) | < 3.3 µs (FIFO 64-byte packets) | < 3.2 µs (FIFO 64-byte packets) |
| Throughput | 95.2 million pps | 95.2 million pps | 130.9 million pps |
| Switching capacity | 128 Gbps | 128 Gbps | 176 Gbps |
| Routing table size | 2048 entries (IPv4), 256 entries (IPv6) | 2048 entries (IPv4), 256 entries (IPv6) | 2048 entries (IPv4), 256 entries (IPv6) |
| MAC address table size | 16000 entries | 16000 entries | 16000 entries |
| Environment | |||
| Operating temperature | 32°F to 131°F (0°C to 55°C) | 32°F to 131°F (0°C to 55°C) | 32°F to 131°F (0°C to 55°C) |
| Operating relative humidity | 15% to 95%, noncondensing | 15% to 95%, noncondensing | 15% to 95%, noncondensing |
| Nonoperating / Storage temperature | -40°F to 158°F (-40°C to 70°C) | -40°F to 158°F (-40°C to 70°C) | -40°F to 158°F (-40°C to 70°C) |
| Nonoperating / Storage relative humidity | 15% to 95%, noncondensing | 15% to 95%, noncondensing | 15% to 95%, noncondensing |
| Altitude | up to 10,000 ft (3 km) | up to 10,000 ft (3 km) | up to 10,000 ft (3 km) |
| Acoustic | Power: 57 dB, Pressure: 41.4 dB | Power: 61 dB, Pressure: 44.9 dB | Power: 57 dB, Pressure: 41.8 dB |
| Electrical characteristics | |||
| Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| 80plus.org Certification | Silver | Silver | Silver |
| Maximum heat dissipation | 198 BTU/hr (208.89 kJ/hr) | 358 BTU/hr (377.69 kJ/hr) | 239 BTU/hr (252.15 kJ/hr) |
| Voltage | 100-240 VAC | 100-240 VAC | 100-240 VAC |
| Maximum power rating | 58 W | 475 W | 70 W |
| Idle power | 26 W | 42 W | 27 W |
| PoE power | 370 W | ||
| Notes | Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. |
Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE power is the power supplied by the internal power supply. It is dependent on the type and quantity of power supplies and may be supplemented with the use of an external power supply (EPS). 370 W of PoE+ power is available using the internal default power supply. |
Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. |
| Safety | |||
| CE LabeledEN 60825-1 Safety of Laser Products-Part 1FCC Part 15, Subpart BGOSTEU RoHS CompliantEN 55022 Class AEN 55024: 1998C-TickICES-003, Class AVCCI Class AIEC 60825-1IEC 60950-1, Second EditionEN62479:2010CSA C22.2 No. 60950-1-07 2nd EditionEN 60950-1:2006+A11:2009+A1:2010+A12:2011IEC 60950-1 (ed.2): am1 | |||
| HP 2920-48G-PoE+ Switch (J9729A) | HP 2920-48G-PoE+ 740W Switch (J9836A) | |
|---|---|---|
| Ports | ||
| 44 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)
Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 RJ-45 dual-personality 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) 2 module slots 1 stacking module slot 1 dual-personality (RJ-45 or USB micro-B) 1 USB 1.1 1 RJ-45 out-of-band management port |
44 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 RJ-45 dual-personality 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) 2 module slots 1 stacking module slot 1 dual-personality (RJ-45 or USB micro-B) 1 USB 1.1 1 RJ-45 out-of-band management port |
|
| Power supplies | ||
| 1 power supply slot
1 minimum power supply required includes: 1 x J9738A (HP X332 575W 100-240VAC to 54VDC Modular Power Supply) |
1 power supply slot 1 minimum power supply required includes: 1 x J9737A (HP X332 1050W 110-240VAC to 54VDC Power Supply) |
|
| Physical characteristics | ||
| 17.42(w) x 13.23(d) x 1.73(h) in (44.25 x 33.6 x 4.39 cm) (1U height) | 17.42(w) x 13.23(d) x 1.73(h) in (44.25 x 33.6 x 4.39 cm) (1U height) | |
| Weight | 12.57 lb (5.7 kg) | 12.86 lb (5.83 kg) |
| Memory and processor | ||
| Tri Core ARM1176 @ 625 MHz, 512 MB SDRAM, 1 GB flash; packet buffer size: 11.25 MB (6.75 MB dynamic egress + 4.5 MB ingress) | Tri Core ARM1176 @ 625 MHz, 512 MB SDRAM, 1 GB flash; packet buffer size: 11.25 MB (6.75 MB dynamic egress + 4.5 MB ingress) | |
| Performance | ||
| 100 Mb Latency | < 9.0 µs (FIFO 64-byte packets) | < 9.0 µs (FIFO 64-byte packets) |
| 1000 Mb Latency | < 3.2 µs (FIFO 64-byte packets) | < 3.2 µs (FIFO 64-byte packets) |
| 10 Gbps Latency | < 3.2 µs (FIFO 64-byte packets) | < 3.2 µs (FIFO 64-byte packets) |
| Throughput | 130.9 million pps | 130.9 million pps |
| Switching capacity | 176 Gbps | 176 Gbps |
| Routing table size | 2048 entries (IPv4), 256 entries (IPv6) | 2048 entries (IPv4), 256 entries (IPv6) |
| MAC address table size | 16000 entries | 16000 entries |
| Environment | ||
| Operating temperature | 32°F to 131°F (0°C to 55°C) | 32°F to 131°F (0°C to 55°C) |
| Operating relative humidity | 15% to 95%, noncondensing | 15% to 95%, noncondensing |
| Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) | -40°F to 158°F (-40°C to 70°C) |
| Nonoperating/Storage relative humidity | 15% to 95%, noncondensing | 15% to 95%, noncondensing |
| Altitude | up to 10,000 ft (3 km) | up to 10,000 ft (3 km) |
| Acoustic | Power: 62 dB, Pressure: 45.2 dB | Power: -53 dB, Pressure: -38.3 dB |
| Electrical characteristics | ||
| Frequency | 50/60 Hz | 50/60 Hz |
| 80plus.org Certification | Silver | Gold |
| Maximum heat dissipation | 399 BTU/hr (420.95 kJ/hr) | 482 BTU/hr (508.51 kJ/hr) |
| Voltage | 100-240 VAC | 100-240 VAC |
| Maximum power rating | 487 W | 881 W |
| Idle power | 46 W | 52 W |
| PoE power | 370 W | 740 W |
| Notes | Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE power is the power supplied by the internal power supply. It is dependent on the type and quantity of power supplies and may be supplemented with the use of an external power supply (EPS). 370 W of PoE+ power is available using the internal default power supply. |
Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE power is the power supplied by the internal power supply. It is dependent on the type and quantity of power supplies and may be supplemented with the use of an external power supply (EPS). Idle power is the actual power consumption of the device with no ports connected. 740 W of PoE+ power is available using the internal default power supply. |
| Safety | ||
| CE LabeledEN 60825-1 Safety of Laser Products-Part 1FCC Part 15, Subpart BGOSTEU RoHS CompliantEN 55022 Class AEN 55024: 1998C-TickICES-003, Class AVCCI Class AIEC 60950-1 :Second Edition IEC 60825-1EN62479:2010CSA C22.2 No. 60950-1-07 2nd EditionEN 60950-1:2006+A11:2009+A1:2010+A12:2011IEC 60950-1 (ed.2): am1 | CE Labeled; EN 60825-1 Safety of Laser Products-Part 1; FCC Part 15, Subpart B; GOST; EU RoHS Compliant; EN 55022 Class A; EN 55024: 1998; C-Tick; ICES-003, Class A; VCCI Class A; IEC 60950-1, Second Edition; IEC 60825-1; EN62479:2010; CSA C22.2 No. 60950-1-07 2nd Edition; EN 60950-1:2006+A11:2009+A1:2010+A12:2011; IEC 60950-1 (ed.2): am1 | |
Services & Support:
HP Networking Services - Services that add value to your business:
The warranties on HP Networking products provide a robust foundation for ongoing network support, but many customers have advanced support needs. Today's enterprise businesses, regardless of their size, are under increasing pressure to reduce the cost and complexity of supporting their network infrastructures. Demand for new services from businesses and their end users is constantly increasing. HP offers an affordable, comprehensive portfolio of networking services for organizations of all sizes. HP has a unique services advantage you can benefit from, and HP is the only vendor in the IT industry that can provide integrated and consistent support for your entire technology infrastructure worldwide, including networking, servers and storage, and imaging and printing, as well as desktop and mobile computing, to help you grow your business with expert support that is affordable, personal, and scaled to your needs. HP Networking's implementation and design centers simplify your network planning, while HP Technology and Enterprise Services deliver choice and flexibility.
HP provides a full range of custom services to meet the end-to-end networking needs of our customers. HP Network Lifecycle Services form the core foundation of network consulting, assessments, planning, design, integration, deployment, and management. They are available as standalone services or can be crafted to deliver solutions across the services portfolio, spanning network performance, network security and risk management, global deployment, data center networking, wireless LAN/mobility, and Unified Communications and Collaboration.
Documentation:
Download the HP 2920 Switch Series Datasheet (PDF).
