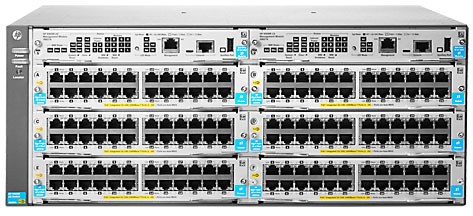

HP 5400R zl2 Switch Series
Modular Ethernet Switches
HP 5400R zl2 Series is now the Aruba 5400R Switch Series
More pricing below, click here!
Overview:
The HP 5400R zl2 Switch Series is an industry leading mobile campus access solution with HP Smart Rate multi-gigabit ports for high speed connectivity and bandwidth for next wave 802.11ac devices. It brings enterprise-class resiliency and innovative flexibility and scalability to converged campus networks.
Robust virtualization with HP AllianceOne solutions, hitless failover, QoS and security with full L3 features and flexible connectivity including 40 Gigabit Ethernet ports and full PoE+, the 5400R requires no add-on software licensing and is SDN ready with OpenFlow support.
What's new
- HP Networking ASIC delivers high performance campus switching with unprecedented programmability and leading edge security and SDN applications.
- HP Smart Rate for high speed multi gigabit bandwidth and PoE+ power.
- Scalable line rate 40GbE for wireless traffic aggregation.
- Enterprise class resiliency with redundant management and power.
- Limited Lifetime Warranty 2.0 with 3 years 24x7 phone support.
Features & Benefits:
Power and Innovation to Converge Your Mobile Campus
The HP 5400R zl2 Switch Series is an industry leading mobile campus access solution with HP Smart Rate multi-gigabit ports for high speed connectivity for next wave 802.11ac devices. It brings enterprise-class resiliency and true flexibility, security and scalability to converged campus networks.
Based on the 6th generation HP Networking ASIC, the 5400R has a high-speed, high-capacity architecture with 2 Tbps crossbar switching fabric with low 2.1mu latency and unprecedented programmability and leading edge SDN applications.
Flexible connectivity options with 6 or 12 slot compact chassis, support for line rate 40 GbE, up to 96 line rate 10GbE ports (SFP+ and 10GBASE-T), 1GbE and up to 288 ports of PoE+ with internal power supplies.
SDN ready with OpenFlow 1.3 supporting future enhancements for your network.
License free software with advanced Layer 2 and 3 feature set including IPv6, IPv4 BGP, policy based routing, OSPF and robust QoS.
Resiliency and High Availability at the Edge
The HP 5400R zl2 Switch Series utilizing the 6th generation HP Networking ASIC delivers wire-speed classification and policy enforcement. This hardware-based control of access and traffic allows protection, detection and response to network threats with no network performance degradation.
Nonstop switching and routing for improved support of applications such as unified communications and enhanced L3 high availability.
Redundant management and power enhances system availability and continuity of operations.
Hot-swappable modules and optional redundant power supply provides uninterrupted power and allows swapping of modules with no impact on the network availability.
Powerful virtualization with versatile HP AllianceOne service modules.
Robust Security and Dynamic Quality of Service
The HP 5400R zl2 Switch Series includes a robust set of security and quality of services features to build a network that meets ever-changing corporate policies and compliances.
Flexible authentication options include 802.1X, MAC and Web Authentication, delivering greater security and policy-driven application authentication. Industry standard MACSec provides link-level encryption security between two points using copper or fiber links (available on select modules only).
Advanced distributed denial of service (DDOS) protection, such as DHCP Snooping, IP Source Guard, and ARP Protection, and flexible traffic controls, such as policy-based routing, QoS, and ACLs, to manage end-to-end application priorities.
Powerful multilevel-access security controls, such as varying security management login, RADIUS/TACACS+, and SSH for safe control change management access.
Defend the edge of your IPv6 network with DHCPv6 Protection and Dynamic IPv6 Lockdown.
Single View of the Network with Industry Leading Warranty
The HP 5400R zl2 Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) Software to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
RMON, XRMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
Limited Lifetime Warranty 2.0 includes 3 years 24x7 phone support.
Specifications:
For complete system specifications, please view our datasheet.
Ports:
- Up to (12) open module slots, maximum
- Supports a maximum of 288 10/100/1000 ports or (288) SFP ports or (96) SFP+ ports or 96 HP Smart Rate Multi-Gigabit or (24) 40GbE ports, or a combination
- Pre-configured models, some with PoE/PoE+, support for 10/100/1000GbE, 10GbE and 40GbE also available.
Throughput:
- 1142.8 Mpps
- Maximum, depending on model and configuration
Routing/switching capacity:
- 1920 Gbps
- Maximum, depending on model and configuration
Switch fabric speed:
- 2030 Gbps
- Maximum, depending on model and configuration
Management features:
- IMC - Intelligent Management Center
- Command-line interface
- Web browser
- Configuration menu
- Out-of-band management (RJ-45 Ethernet)
- SNMP manager
- Out-of-band management (serial RS-232c or micro usb)
Documentation:
Download the HP 5400R zl2 Switch Series Datasheet (PDF).
