HP Altoline 5712 Switch Series
Fixed Port L3 Managed Ethernet Switches
HP Altoline 5712 48XG 6QSFP+ x86 ONIE AC Front-to-Back SwitchContact us for Pricing!
HP Altoline 5712 48XG 6QSFP+ x86 ONIE AC Back-to-Front SwitchContact us for Pricing!
More pricing below, click here!
Overview:

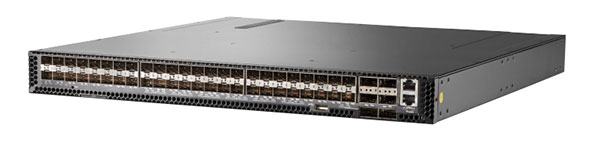

The HP Altoline 5712 Switch Series is x86-based OCP certified, open-networking, disaggregated family of low-latency 10GbE data center switches in a 1U form factor. Perfect for deployment in web-scale environments as a 10GbE server access switch it is optimized for data center hot/cold aisle deployments with reversible airflow.
Hardware support for VXLAN is ideal for deployment in multi-tenancy and overlay environments. Take advantage of the streamlined design and ONIE boot loader to deploy a choice of network operating systems with the freedom to select the management and orchestration tool.
What's New:
- High 10GbE port density and low latency for demanding applications.
- OCP-certified, ONIE boot loader, choice of network OS, easy installation.
- Intel x86 CPU, Open-networking and disaggregated solution.
- VXLAN for efficient network virtualization overlay solutions.
- 10GbE/40GbE, redundant fans and power supplies for data center deployments.
Features & Benefits:
Open and Disaggregated Networking for Choice
- The HP Altoline 5712 Switch Series is an OCP certified, open-networking, disaggregated solution that offers customers choice of hardware platforms and network operating systems (NOS).
- Includes the Open Network Install Environment (ONIE) loader for easy installation of the network operating system.
- You have a choice of network OS including Cumulus Networks Linux NOS.
- Offers a choice of management and orchestration tools from growing ecosystem.
- Intel x86 CPU subsystem provides ability to load common 3rd party applications and utilities.
Wire Speed of 10GbE and 40GbE for Scalability and demanding applications
- The HP Altoline 5712 Switch Series provides high density of 48 x 10GbE and 6 x 40GbE fiber uplink ports for high-performance and flexible deployments.
- Supports up to 48 x 10GbE links for server scalability with 6 x 40GbE uplinks.
- With hardware VXLAN VTEP support the switch works well for multi-tenancy and overlay technologies.
- Provides the flexibility for 10GbE top-of-rack deployments.
High-performance Data Center Switching
- The HP Altoline 5712 Switch Series delivers 1.44 Tbps switching capacity for the most demanding applications.
- The switch supports up to 1 BPPS throughput for data intensive environments.
- Ultra fast 40 Gbps Latency > .6 µs for amazing response time.
- With up to 6 x 40GbE QSFP+ ports the switch has a solution for blazing fast uplinks.
- The redundant power supplies and fans combat temperature issues in hot/cold isles deployments.
Simplicity and Lower TCO
- The HP Altoline 5712 Switch Series simplifies switch deployment, management and orchestration with choice of tools from the robust Linux community and ecosystem.
- With streamlined hardware and multiple software options the 5712 Switch gives you a better fit for your needs.
- With Intel x86 CPU you have a choice of common software tools for use in server and networking.
- Provides economies of scale that meet the needs of your web-scale data centers.
Specifications:
For a complete list of specifications, please refer to the product datasheet.
HP Altoline 5712 48XG 6QSFP+ x86 ONIE AC Front-to-Back Switch (JL167A)
Differentiator:
48 10GbE and 6 40GbE ports, x86 CPU, dual hot-pluggable AC power supplies and port-to-power fan trays. Ideally suited for deployment at the spine and server access layer in large enterprise data centers.
Ports:
- (48) SFP+ 1/10GbE ports
- (6) QSFP+ 40GbE ports
Throughput:
up to 1 Bpps
Routing/switching capacity:
1440 Gbps
Warranty:
3 year warranty: with advance replacement and 10 calendar day delivery (available in most countries)
HP Altoline 5712 48XG 6QSFP+ x86 ONIE AC Back-to-Front Switch (JL168A)
Differentiator:
48 10GbE and 6 40GbE ports, x86 CPU, dual hot-pluggable AC power supplies and power-to-ports fan trays. Ideally suited for deployment at the spine and server access layer in large enterprise data centers.
Ports:
- (48) SFP+ 1/10GbE ports
- (6) QSFP+ 40GbE ports
Throughput:
up to 1 Bpps
Routing/switching capacity:
1440 Gbps
Warranty:
3 year warranty: with advance replacement and 10 calendar day delivery (available in most countries)
Documentation:
Download the HP Altoline 5712 Switch Series Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
