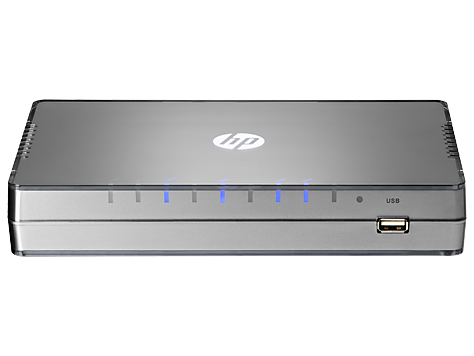

HP R100 Wireless VPN Router Series
Fixed Port Ethernet Routers

Features & Benefits:

Wireless features

• IEEE 802.11 a/b/g/n compliance - Superior wireless performance with Wi-Fi-certified built-in access points. R110 model has built-in single radio dual band IEEE 802.11a/b/g/n compliant access point. R120 model has built-in dual radio 802.11 a/b/g/n/ac compliant access point
• Multiple-input Multiple-output (MIMO) - Both models support 3x3 MIMO antennas to ensure wider wireless coverage and superior throughput
• Multiple SSIDs - Each radio supports up to 4 SSIDs to help segregate wireless clients and apply granular policies
• WMM (IEEE 802.11e) - Provides quality of service (QoS) to wireless clients based on access categories like voice, video, best effort, and background
• WMM-Power Save - WMM-Power Save mode helps reduce power consumption on wireless network
• Wireless distribution system (WDS) - Allows users to expand wireless coverage without the requirement for a wired connection. R100 series routers can be linked together via the wireless medium (using SSIDs), while at the same time servicing clients in the vicinity of each router
• Wi-Fi protected setup (WPS v2) - WPS v2 protocol allows customers to easily create secure wireless link between wireless client devices that support WPS and the router
• SSID to VLAN mapping - Allows user to segregate wireless traffic

Security

• Stateful firewall - Enforces firewall policies to control traffic and filter access to network services; maintains session information for every connection passing through it, enabling the firewall to control packets based on existing sessions
• URL filtering - Blocks unsafe websites and protects network based on URL information
• Content filtering - Blocks websites and protects network based on keyword match done on the content in the webpage
• Network access control - MAC address and IP address-based network access control. IP/MAC binding
• IEEE 802.1X authentication and RADIUS login - Authenticate wireless clients based on 802.1X protocol using a Radius server
• Denial of Service (DoS) prevention - Detects and blocks commonly used DoS attacks that can be initiated on the devices. Common attack signatures are stored in the device
• Application Level Gateway (SIP/H323) - Discovers the IP address and service port information embedded in the application data using deep packet inspection in the firewall; firewall then dynamically opens appropriate connections for specific applications
• Secure management - MAC/IP based administrator authentication, secure WAN/LAN access to management interface, encrypt management traffic using HTTPS
• HTTPS management - Provides secure Web management
• Management password - Provides security so that only authorized access to the Web Management interface is allowed

Virtual private network (VPN)

• IPsec - Provides secure tunneling over an untrusted network such as the Internet or a wireless network; offers data confidentiality, authenticity, and integrity between two network endpoints
• Layer 2 Tunneling Protocol (L2TP) - An industry-standard-based traffic encapsulation mechanism supported by many common OSs; will tunnel the point-to-point Protocol (PPP) traffic over the IP and non-IP networks; may use the IP/UDP transport mechanism in IP networks
• Network Address Translation-Traversal (NAT-T) - Enables IPsec-protected IP datagrams to pass through a network address translator (NAT)
• Point-to-Point Tunneling Protocol - An industry-standard-based traffic encapsulation mechanism for VPN tunnels supported by many common OSs; PPTP uses a control channel over TCP and a GRE tunnel operating to encapsulate PPP packets
• Site-to-Site VPN Tunnel - Configures VPN gateways on routers to provide secure site-to-site communication between offices, partners, or remote workers; tunnels can be set using IPsec, PPTP, or L2TP over IPsec protocols
• Client Mode VPN Tunnel - Supports native VPN client based on Windows® and MAC OS
• VPN pass through - Supports VPN pass through of PPTP, L2TP, and IPsec tunnels

Management

• Network Time Protocol (NTP) - Synchronizes timekeeping among distributed time servers and clients; keeps timekeeping consistent among all clock-dependent devices within the network so that the devices can provide diverse applications based on the consistent time
• Secure Web GUI - Provides a secure, easy-to-use graphical interface for configuring the module via HTTPS
• Event logging - Supports local logging as well as remote syslog server
• Email alerts - Device can be configured to send email alerts to preconfigured email address
• USB support - Supports file transfer from compatible USB devices. Supports Samba and FTP server
• SNMP v1, v2c - Supports limited SNMP management capability
• Firmware upgrade - Supports firmware upgrade via HTTP/HTTPS. Also supports configuration file import/export through Web interface
• Traffic statistics - Monitor traffic statistics on device interfaces, SSID, and client level
• Tools - Troubleshooting tools, such as Support file generation, ping, traceroute, nslookup, etc.
• Time-based rules - Simplifies network management by setting time- based rules on device features, such as wireless radio, security filters, etc.

Layer 2 switching

• Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) protocol snooping controls and manages the flooding of multicast packets in a layer 2 network
• IEEE 802.1D Spanning Tree Protocol (STP) - Provides redundant links while preventing network loops
• IEEE 802.1w Rapid Convergence Spanning Tree Protocol (RSTP) - Increases network uptime through faster recovery from failed links
• Auto MDI/MDIX - Provides automatic adjustments for straight through or crossover cables on all 10/100/1000 ports
• VLAN (IEEE 802.1Q) - Supports one tagged VLAN per LAN port. Helps segregate traffic on LAN ports to virtual groups

Layer 3 services

• Address Resolution Protocol (ARP) - Determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a layer 2 network
• Dynamic Host Configuration Protocol (DHCP) - Simplifies the management of large IP networks and supports client and server; DHCP relay enables DHCP operation across subnets
• IPv6 - Dual stack (IPv4/IPv6): transitions from IPv4 to IPv6, supporting connectivity for both protocols—MLD snooping: forwards IPv6 multicast traffic to the appropriate interface, preventing traffic flooding—IPv6 ready: switch hardware can support IPv6 routing
• Network Address Translation (NAT) and Port Address Translation (PAT) - Preserves a network’s IP address pool or conceals the private address of network resources such as Web servers, which are made accessible to users of a guest or public wireless LAN; provides choice of dynamic or static translation
• DHCP server - Multi-scope DHCP server hands out IPv4 and/or IPv6 addresses to client devices
• DMZ support - Allows users to open a local client for unrestricted two way access, especially if that client cannot run an Internet application properly from behind the NAT firewall
• Dynamic DNS (DDNS) - Supports DDNS feature that allows customers to access a dynamic address with a fixed domain name

Layer 3 routing

• Static routes - Ability to manually configure IPv4 and IPv6 routes
• RIPv1, v2, ng - Dynamically routes IPv4 and IPv6 packets between different subnets using RIP protocol

QoS

• Traffic prioritization (DSCP) - Prioritizes traffic based on layer 3 header in IP packets. Helps prioritize time-sensitive traffic like voice and video
• Traffic prioritization (IEEE 802.1p) - Traffic prioritization based on layer 2 packet headers. Allows real-time traffic like voice and video to be prioritized
• IEEE 802.11e - IEEE 802.11e Wi-Fi Multimedia (WMM) wireless QoS standard—when combined with wired QoS policies—provides end-to-end QoS, delivering different wireless channel competitiveness for different services
• Queue - Device capable of segregating traffic into 4 priority queues to enable more granular traffic prioritization. This ensures consistent performance for high priority traffic, even during periods of network congestion
• Traffic shaping - Enable configuration of bandwidth limit to traffic per queue
• Traffic remarking - Allows remarking of IEEE 802.1p and DSCP traffic priority
• Queue mapping - Allows mapping of traffic to queue based on MAC address, IP address, traffic type, and certain commonly used services

Ease of use

• Aesthetics - Embedded antennas expand installation options and increase aesthetics
• Easy to use - GUI-driven central management and configuration
• Fanless design - Enables quiet operation for deployment in open spaces
• Flexible mounting - Supports desktop as well as wall mount operation

Warranty and support

• 3-year Warranty 2.0 - Advance hardware replacement with next-business-day delivery (available in most countries)
• Electronic and telephone support (for Warranty 2.0) - Limited electronic and 24x7 telephone support is available from HP for the entire warranty period; to reach our support centers, refer to hp.com/networking/contact-support; for details on the duration of support provided with your product purchase, refer to hp.com/networking/warrantysummary
• Software releases - To find software for your product, refer to hp.com/networking/support; for details on the software releases available with your product purchase, refer to hp.com/networking/warrantysummary

Specifications:

	HP R110 Wireless 11n VPN WW Router (J9975A)	HP R110 Wireless 11n VPN AM Router (J9974A)
I/O ports and slots
	1 RJ-45 autosensing 10/100/1000 WAN port 4 RJ-45 autosensing 10/100/1000 LAN ports	1 RJ-45 autosensing 10/100/1000 WAN port 4 RJ-45 autosensing 10/100/1000 LAN ports
AP characteristics
Radios (built-in)	802.11a/b/g/n	802.11a/b/g/n
Radio operation modes	Client access, Client bridge	Client access, Client bridge
AP operation modes	Autonomous	Autonomous
Wi-Fi Alliance Certification	a/b/g/n Wi-Fi Certified	a/b/g/n Wi-Fi Certified
Physical characteristics
Dimensions	8.5(w) x 5.5(d) x 1.5(h) in (21.59 x 13.97 x 3.81 cm)	8.5(w) x 5.5(d) x 1.5(h) in (21.59 x 13.97 x 3.81 cm)
Weight	1 lb (0.45 kg)	1 lb (0.45 kg)
Memory and processor
	MIPS @ 700 MHz, 128 MB NAND flash	MIPS @ 700 MHz, 128 MB NAND flash
Mounting and enclosure
	Desktop/wall-mount	Desktop/wall-mount
Performance
MAC address table size	2048 entries	2048 entries
VPN throughput	up to 30Mbps	up to 30Mbps
Dedicated IPsec VPN tunnels	5	5
Network throughput	920Mbps (NAT)	920Mbps (NAT)
Concurrent sessions	5	5
Number of VLANs	4	4
Environment
Operating temperature	32°F to 104°F (0°C to 40°C)	32°F to 104°F (0°C to 40°C)
Operating relative humidity	5% to 95%, noncondensing	5% to 95%, noncondensing
Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)
Altitude	up to 10,000 ft (3 km)	up to 10,000 ft (3 km)
Notes	No Fan	No Fan
Electrical characteristics
AC voltage	100 - 240 VAC	100 - 240 VAC
Maximum power rating	9.5 W	9.5 W
Notes	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. 12V DC power adaptor	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. 12V DC power adaptor
Reliability
MTBF (years)	51.54	51.54

	HP R120 Wireless 11ac VPN WW Router (J9977A)	HP R120 Wireless 11ac VPN AM Router (J9976A)
I/O ports and slots
	1 RJ-45 autosensing 10/100/1000 WAN port 4 RJ-45 autosensing 10/100/1000 LAN ports	1 RJ-45 autosensing 10/100/1000 WAN port 4 RJ-45 autosensing 10/100/1000 LAN ports
AP characteristics
Radios (built-in)	802.11a/b/g/n/ac	802.11a/b/g/n/ac
Radio operation modes	Client access, Client bridge	Client access, Client bridge
AP operation modes	Autonomous	Autonomous
Wi-Fi Alliance Certification	a/b/g/n Wi-Fi Certified	a/b/g/n Wi-Fi Certified
Physical characteristics
Dimensions	8.5(w) x 5.5(d) x 1.5(h) in (21.59 x 13.97 x 3.81 cm)	8.5(w) x 5.5(d) x 1.5(h) in (21.59 x 13.97 x 3.81 cm)
Weight	1.28 lb (0.58 kg)	1.28 lb (0.58 kg)
Memory and processor
	MIPS @ 1 GHz, 128 MB NAND flash	MIPS @ 1 GHz, 128 MB NAND flash
Mounting and enclosure
	Desktop/wall-mount	Desktop/wall-mount
Performance
MAC address table size	2048 entries	2048 entries
VPN throughput	up to 200Mbps	up to 200Mbps
Dedicated IPsec VPN tunnels	5	5
Network throughput	920Mbps (NAT)	920Mbps (NAT)
Concurrent sessions	5	5
Number of VLANs	4	4
Environment
Operating temperature	32°F to 104°F (0°C to 40°C)	32°F to 104°F (0°C to 40°C)
Operating relative humidity	5% to 95%, noncondensing	5% to 95%, noncondensing
Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)
Altitude	up to 10,000 ft (3 km)	up to 10,000 ft (3 km)
Notes	No Fan	No Fan
Electrical characteristics
AC voltage	100 - 240 VAC	100 - 240 VAC
Maximum power rating	15 W	15 W
Notes	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. 12V DC power adaptor	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. 12V DC power adaptor
Reliability
MTBF (years)	41.84	41.84

*For more information on 6600 Router Series products, Download the HP R100 Wireless VPN Router Series Datasheet. (Click Here)
